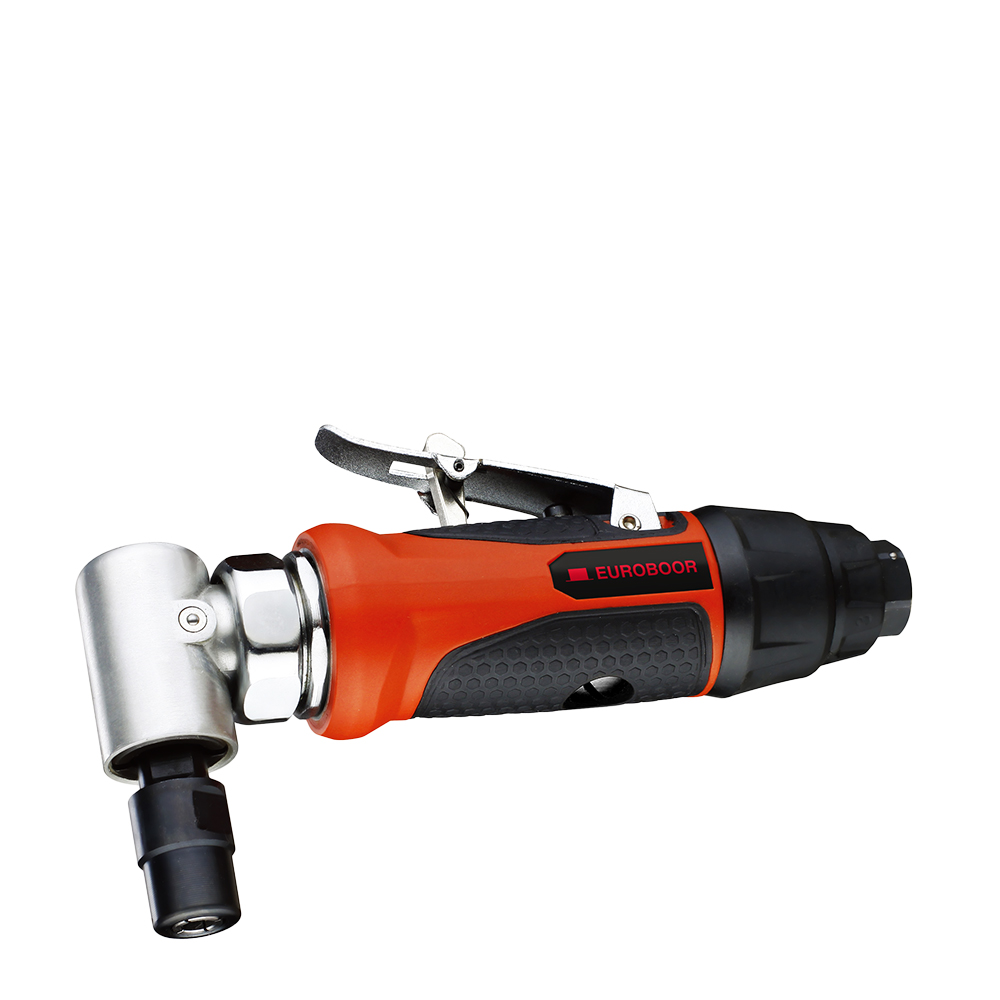

ADG.2A

Air die grinder, 20000 RPM.

Air die grinder, power supply pressure 6.3 bar, maximum speed no load (gear 1) 20000 rotations per minute.

EAN code

8719323608276

Price

$135.45

Order

ADG.2A

Special (newsletter) promotions apply through the Get A Quote button

Our air die grinders (angle, straight and extended) operate on air and are therefore the perfect solution for grinding tasks where the use of electric power tools is out of the question, such as the offshore, mining, oil and gas industries. The ADG.2A (angle), ADG.2S (straight) and ADG.2E (extended) are perfect for grinding, polishing, deburring and smoothing sharp edges. All air die grinders are engineered to make your job easier, safer and more efficient.VibraTec
VibraTec minimizes vibrations of the machine. This contributes to the ease of operation and creation of smooth, high quality finishes. These machines have an ergonomic soft grip which absorbs vibrations. They are developed with high quality materials such as bearings which make the burr rotate as steadily as possible.

Available in 3 versions:

Machine
Set 1: Machine with transport case
Set 2: Machine with transport case and rotary burr set

Accessories

Properties
Fact sheet
Package contents
Parts list / manual

Properties

Adjustable speed

Connection
connection 1 model	inside
connection 1 size (inch)	1/4
connection 1 size (millimeter)	6
connection 1 type	collet
Dimensions
length (inch)	7 5/8
length (millimeter)	193
height (inch)	2 3/4
height (millimeter)	70
Properties
electric rotation speed adjustment	yes
nett weight (pound)	1.16
nett weight (kilogram)	0.53
system of measurement	mm (metric)
application	grinding
Performance
no-load maximum rotation speed gear 1 (rotations per minute)	20000
Supply
power supply flowrate (cubic foot per minute)	4
power supply flowrate (cubic meter per hour)	6.8
power supply pressure (pound-force per square inch)	90
power supply pressure (bar)	6.3
power supply connection	air hose connection with inside diameter 3/8"
power supply source	mains supply
power supply type	pneumatic
Usage
machining medium	rotary burrs

Fact sheet

Download fact sheet

Package contents

1x cardboard box
1x 90° angled pneumatic die grinder ADG.2A
1x 6 mm collet (1/4")
1x spanner 16 mm (5/8")
1x spanner 19 mm (3/4")
1x EURO-type plug-in nipple 1/4"
1x ORION-type plug-in nipple 1/4"
1x ISO B-type plug-in nipple 1/4"
1x user manual

Manual

Download Manual
