ECO.40S+/M
ECO.40S+/M
ECO.40S+/M
ECO.40S+/M
ECO.40S+/M
ECO.40S+/M
ECO.40S+/M
ECO.40S+/M
ECO.40S+/M
ECO.40S+/M

ECO.40S+/M

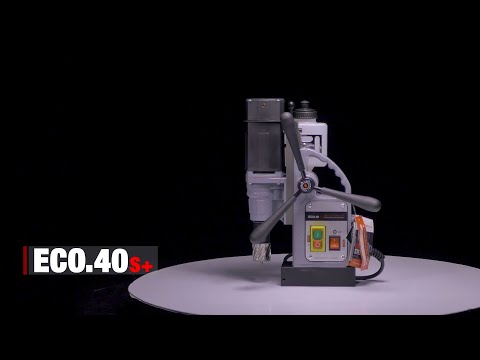

Magnetic drilling machine, 1 9/16", 110 V, US.

Magnetic drilling machine, annular cutters max. dia 1 9/16 inch, power supply tension 110 - 120 Volt, power supply frequency 60 Hertz, power supply connection plug according NEMA 5-15, rotation direction clockwise.

Order codeECO.40S+/M
EAN code8720143712692
Price
$1,400.71
Order

Just when you think you’ve seen it all, the ECO.40S+/M arrives, ready to handle the toughest drilling jobs. Lightweight but built for maximum power, this machine is designed for demanding environments like bridge renovations, where conditions are far from ideal.

With many older bridges, covered in layers of paint and areas of corrosion, standard mag drills often struggle to grip on securely. The ECO.40S+/M solves this problem with a specially designed, stronger magnet that holds firm, even on heavily painted or corroded metal surfaces. No slipping, no compromise, just reliable performance every time.

But that’s not all. The ECO.40S+/M features an internal motor cable, eliminating the risk of cable damage when moving the machine around. And with Gyro-Tec safety technology built in, the machine automatically shuts down if it detects sudden movement, ensuring a safer work environment without the hassle of jam-prone safety buttons.

Packed with these smart innovations, the ECO.40S+/M makes your choice easy. Work safe, fast, and precise, just the way it should be.


Contact us

Accessories

Properties

ECO.40S+/M
Automatic shut off
ECO.40S+/M
Carbon brush wear indicator
ECO.40S+/M
Gyro-Tec
ECO.40S+/M
Power fluctuation protection
ECO.40S+/M
2 way magnet (TempTec)
ECO.40S+/M
Integrated motor cable
ECO.40S+/M
Magnet LED indicator
ECO.40S+/M
Power surge protection
ECO.40S+/M
Oil lubricated gearbox
Connection
minimum diameter annular cutters (inch)7/16
minimum diameter annular cutters (millimeter)12
maximum diameter annular cutters (inch)1 9/16
maximum diameter annular cutters (millimeter)40
minimum diameter countersinking (inch)3/8
minimum diameter countersinking (millimeter)10
maximum diameter countersinking (inch)1 3/4
maximum diameter countersinking (millimeter)45
minimum diameter twist drills (inch)1/16
minimum diameter twist drills (millimeter)1
maximum diameter twist drills (inch)5/8
maximum diameter twist drills (millimeter)16
connection 1 modelinside
connection 1 size (inch)3/4
connection 1 size (millimeter)19.05
connection 1 typeWeldon
Dimensions
stroke (inch)5 11/16
stroke (millimeter)145
magnet length (inch)6 5/16
magnet length (millimeter)160
magnet width (inch)3 1/8
magnet width (millimeter)80
magnet height (inch)1 15/16
magnet height (millimeter)49
minimum height (inch)14 7/16
minimum height (millimeter)367
maximum height (inch)17 5/8
maximum height (millimeter)447
length (inch)10 3/8
width (inch)7 1/16
length (millimeter)264
width (millimeter)180
height (inch)17 5/8
height (millimeter)447
Properties
rotation directionclockwise
type of gear box lubricationOil
magnetic force (kilogram)1850
magnetic force (pound)4079
electric rotation speed adjustmentno
nett weight (pound)26.9
nett weight (kilogram)12.2
system of measurementinch (imperial)
applicationDrilling, Countersinking
Performance
no-load rotation speed gear 1 (rotations per minute)600
load rotation speed gear 1 (rotations per minute)380
Supply
motor power (Ampère)10.5
motor power (Watt)1150
total power (Ampère)10.9
total power (Watt)1200
power supply frequency (Hertz)60
power supply currentAC
power supply connectionplug according NEMA 5-15
power supply sourcemains supply
power supply typeelectric
power supply tension (Volt)110 - 120

Fact sheet

Package contents

  • 1x case
  • 1x magnetic drilling machine ECO.40S+/M
  • 3x (Capstan Hub) handles
  • 1x lubrication/cooling system
  • 1x Allen key 2.5 mm (3/32")
  • 1x Allen key 3 mm (1/8")
  • 1x Allen key 4 mm (5/32")
  • 1x Allen key 5 mm (13/64")
  • 1x protection guard
  • 1x safety chain
  • 1x ear protection
  • 1x safety goggles
  • 1x safety gloves
  • 1x user manual

Manual

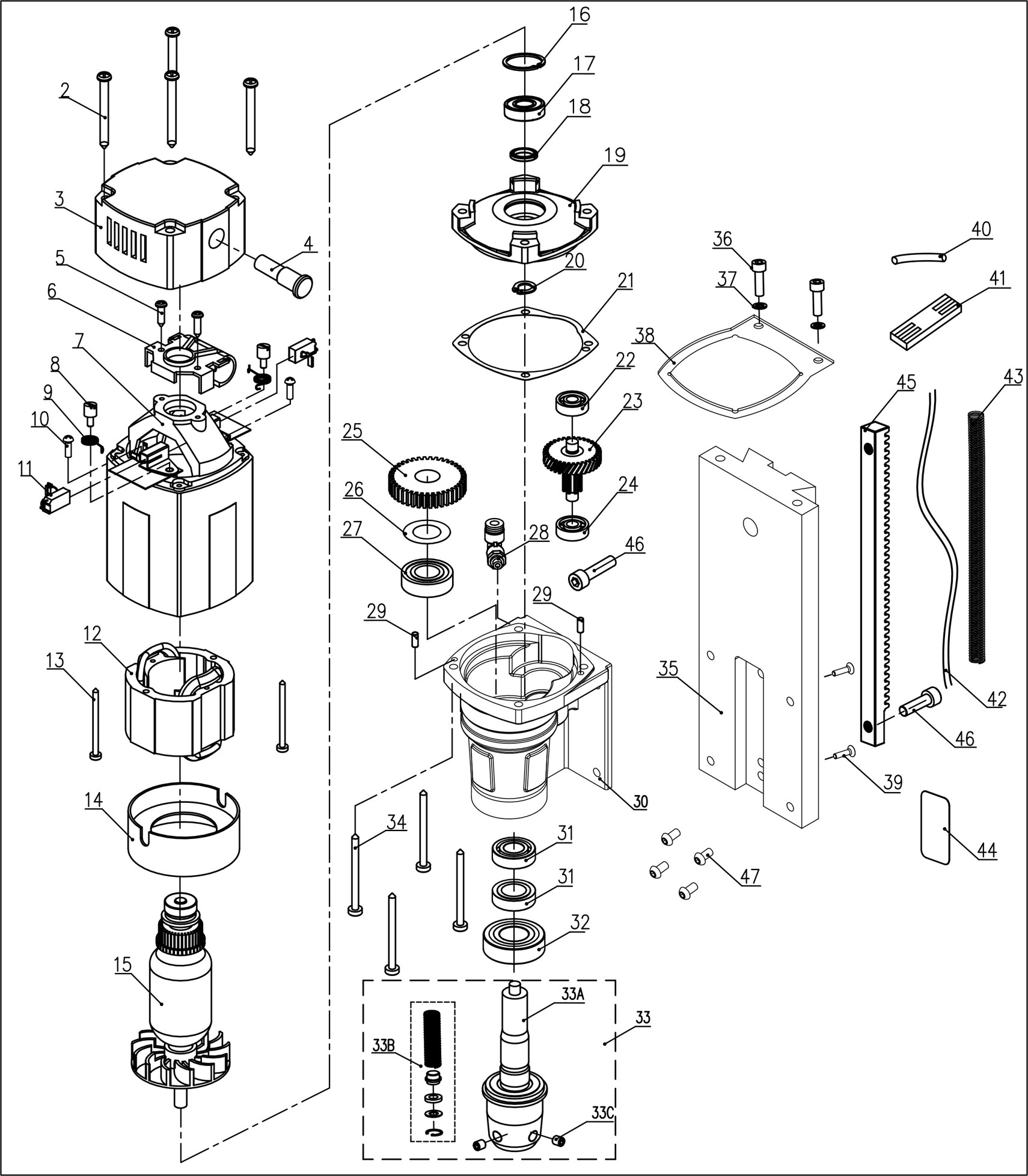

MOTORBODYCASE
NoSearch codeDescriptionQty
2036.0043Screw M4.8 x 55
81822004801004		4
3040S.0022End cover
81231300012004		1
4P020.0278ALed indicator red alarm 110V
81422810001004		1
5032.0116Screw M4 x 16
81821004201004		2
6032.0131-1Adapter ring cap
81231900004004		1
7040S.0241X-40S+Housing incl. print ECO.40S+ (IC)
81231200008004		1
8032.0136Screw for spring
81821000003004		2
9032.0141-1Spring
81331300006004		2
10020.0101Panel screw BKVZ M4 x 8
81821004001004		2
11Carbon.30A+Carbon brush set 110V
81261310007004		1
12040S.0277Field 110V
81210010030004		1
13020.0024Screw M4 x 60
82821004002004		2
14032.0161Baffle
81231700002004		1
15040S.1011AArmature 110V
81220010032004		1
16032.0166Circlip 472/28/1.2
81823828002004		1
17050.9070Bearing 6001V V
81331000137004		1
18050.0064Oil bearing 15 x 21 x 3
81331000124004		1
19040S.0236XInner gear plate
81231000022004		1
20020.0308Circlip
81823800032004		1
21040S.0128Gasket
81811500008004		1
22032.0126Bearing 608ZZ 8 x 22 x 7
81331000004004		1
23360.1013Bevel gear assembly
81321500019004		1
24020.0636Bearing 636ZZ
81331000143004		1
25360.1014Spindle gear
81342000007004		1
26032.0191Adapter ring 17 x 24 x 0.2
81823600003004		1
27032.0196Bearing 6003 17 x 35 x 10
81331000006004		1
28KSP.SCoolant connector Quick straight brass
81682400010004		1
29050.0025Pin 4 x 10
81825000029004		2
30040S.0008Gear box
81251100011004		1
31030E.5033Seal
81811000016004		2
32030.0009Bearing 6004 DDU
81331000122004		1
33030.1006Spindle assembly
81311300037004		1
33B030E.5037Spring set
81829000007004		1
33C020.0136Grub screw M8 x 8
81821308007004		2
34050.0106Screw 4.8 x 45
81821004803004		4
35040S.0024Slide 219 mm
81661000012004		1
36020.0106AScrew M6 x 20
81821000047004		2
37020.0111Washer M6 DIN7980
81823000001004		2
38040S.0041Top fixing plate
81231600015004		1
39020.0309Screw M5 x 18
81821000129004		2
40040S.0018Fluorine hose
81682200009004		1
41040S.0028Connector
81432000012004		1
42040S.0016Two-core cable 410 x 6.8
81433000005004		1
43040S.0017Spring sleeve 250 x 8.5 x 0.6
81825525002004		1
44040S.0029Cover 74 x 15 x 1.5
81631500007004		1
45040S.0025Joint 1.5 x 21T
81321500002004		1
46020.0106Screw M6 x 16
81821000002004		2
47020.0471Screw M6 x 12
81821000128004		4

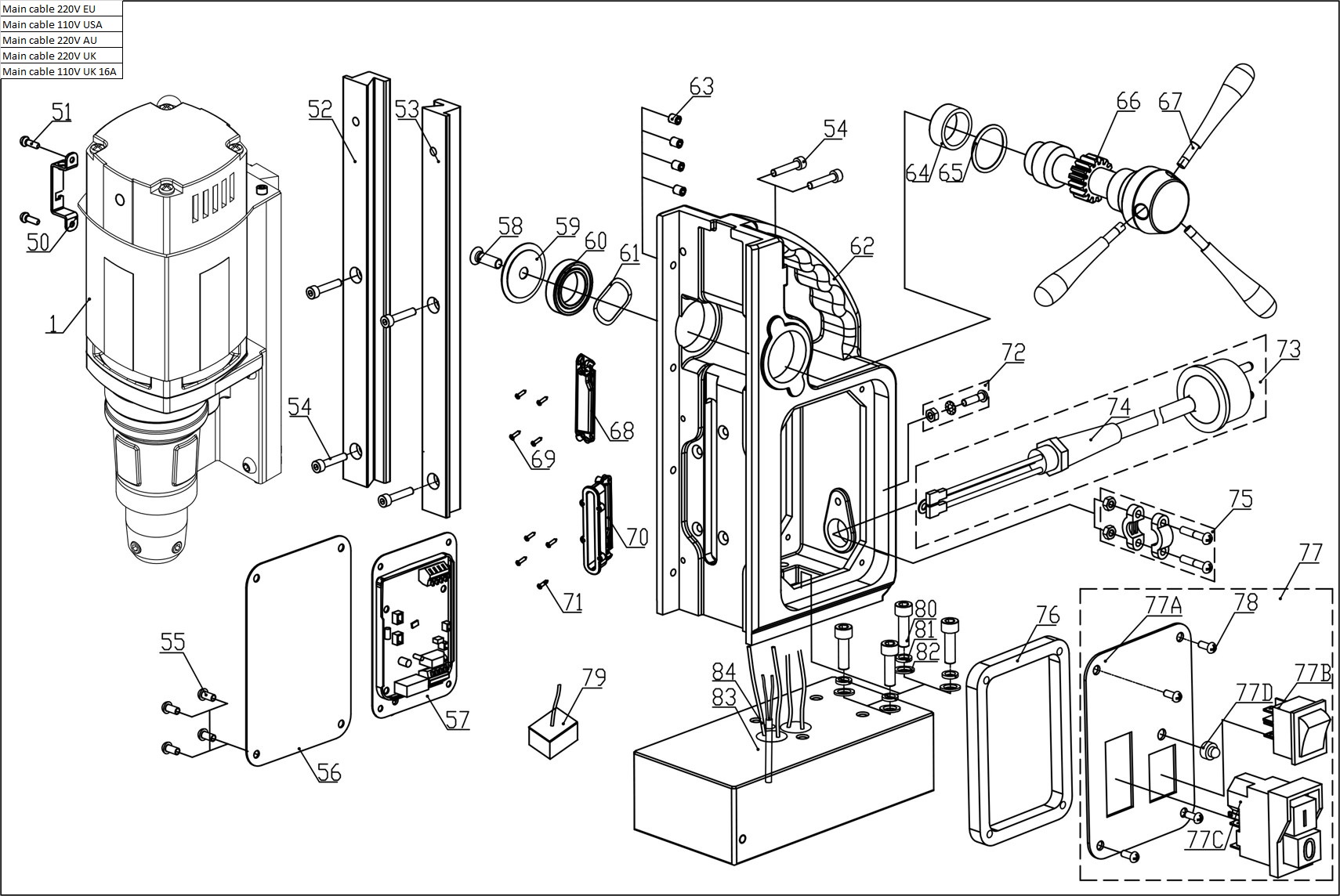

MOTORBODYCASE
NoSearch codeDescriptionQty
73USA020.0036/USAMain cable 110V USA
81431510003004		1
73UK020.0036/UK 110-16AMain cable 110V UK 16A
81431510005004		1
1040S+.1001AECO.40S+ motor unit 110V int. cable
81611010022004		1
50KSP.M/3Tank holder
81681300012004		1
51KSP.MSScrew M5 x 10
81821005029004		2
52020.0086/ZRail set Aluminium (L/R) Z-profile
81661300031004		1
53020.0086/ZRail set Aluminium (L/R) Z-profile
81661300031004		1
54100.0022Bolt M5 x 20
81822004006004		6
55020.0101Panel screw BKVZ M4 x 8
81821004001004		8
56055.0002Rear panel 220V
81831320009004		1
57032.1008ZControl unit 110V / 220V
81411000004004		1
58020.0081Screw BKVZ M6 x 16
81821006001004		1
59050.0030End cover Ø36 X 3
81231300016004		1
60050.0063Bearing 6804 ZZ
81331000123004		1
61040.0023Washer
81823000108004		1
62040S.0012Frame
81631000003004		1
63020.0231Screw M5 x 6
81821005026004		4
64032.0127AAdapter ring v2
81823600019004		1
65030.0027Washer 28 x 34.5 x 0.2 mm
81823000107004		1
66020.0061/ZCapstan hub assembly
81651000013004		1
67020.0315XArm for capstan
81651300022004		3
68040S.0014Cover
81631500006004		1
69040S.0026Screw
81821000016004		4
70040S.0013Cable box
81433000004004		1
71040S.0027Screw M4 x 16
81821004033004		4
72020.0182Grounding screw/washer/nut
81829000002004		1
74020.0031Coupling nut PG11 (main cable)
81824611001004		1
75020.0037Cable clamp complete
81433000008004		1
76032T.0009Spacer
81826500004004		1
77040S+M.B060ZAFront panel set 110V
81411210045004		1
77A040S.0015MFront panel ECO.40S+/M
81831000133004		1
77B020.0011/1Magnet switch
81641400008004		1
77C030E.0092/YMotor switch 110V (5-pin) yellow
81641110003004		1
77D032.1006LED indicator
81422800007004		1
78020.0183Screw M4 x 20
81821004025004		4
79055.1041Gyroscope PCB set
81411500011004		1
80020.0106AScrew M6 x 20
81821000047004		4
81020.0111Washer M6 DIN7980
81823000001004		4
82020.0112Washer M6
81823006003004		4
83040S.1022MAMagnet ECO.40S+/M 110V
81621010023004		1
84100.1008Sensor
81422000006004		1

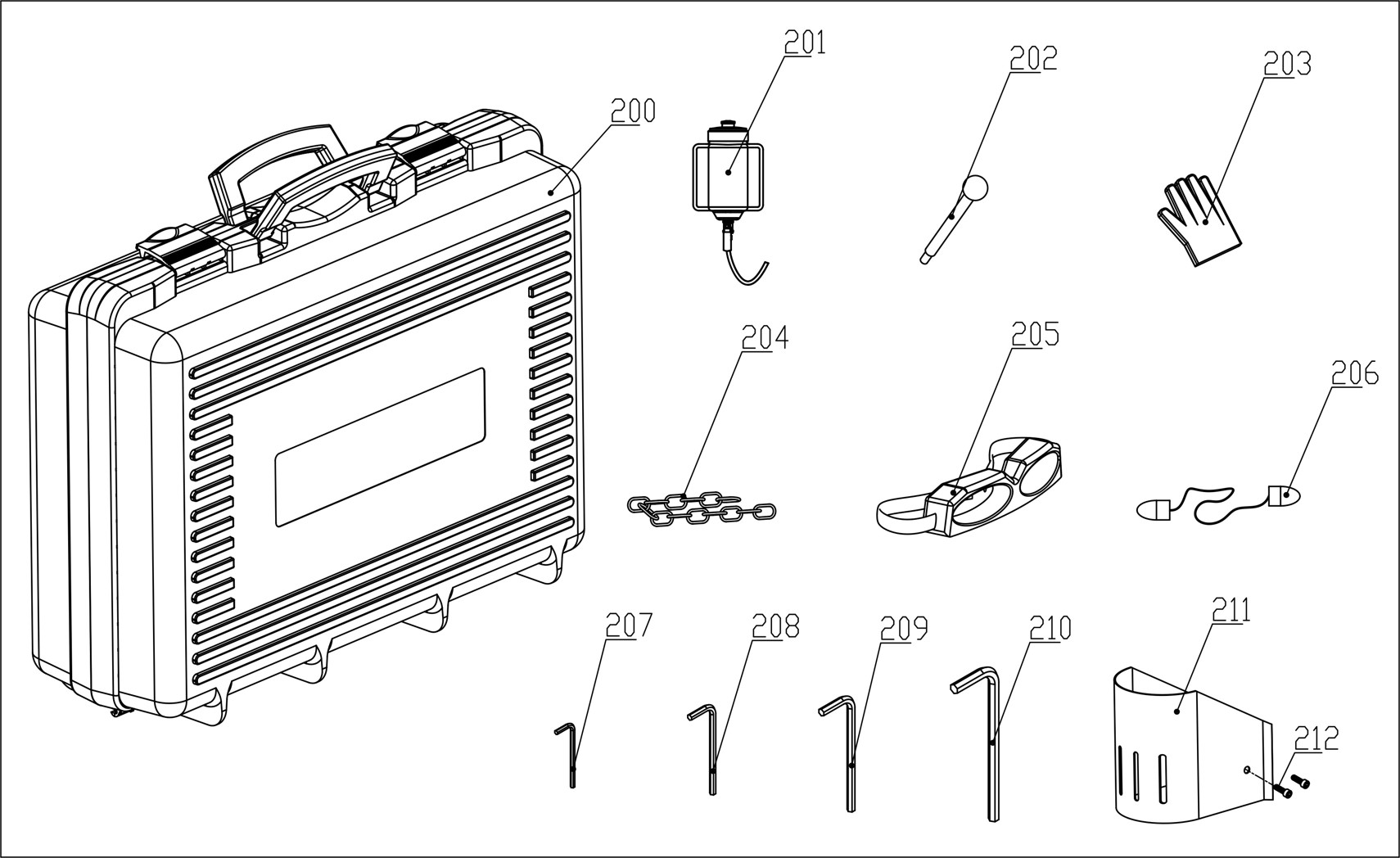

MOTORBODYCASE
NoSearch codeDescriptionQty
203MEBGLV.MEuroboor working gloves size M
91411000020004		1
203LEBGLV.LEuroboor working gloves size L
91411000021004		1
203XLEBGLV.XLEuroboor working gloves size XL
91411000022004		1
200040S+.2010Case for ECO.40S+ with sticker
81843500037004		1
201KSP.Q2Coolant tank Quick Connect 2015
81681300010004		1
202KSP.PPin and knob for cooling tank
81682400005004		1
204SAF.400Safety chain (1 mtr) with lock
81841300006004		1
205SAF.100Safety goggles
81841500002004		1
206SAF.200Ear plugs
81841500001004		1
207IMB.US2.5Allen key 2.5 mm
81842600006004		1
208IMB.US3Allen key 3.0 mm
81842600007004		1
209IMB.US4Allen key 4.0 mm
81842600004004		1
210IMB.US5Allen key 5.0 mm
81842600005004		1
211SAF.MDMSSafety guard small
81841000018004		1
212020.0223Screw M5 x 10
81821000127004		2
