EBM.36+LP/P-18V

Cordless magnetic drilling machine, 36 mm / 1 7/16".

Cordless magnetic drilling machine, annular cutters max. dia 36 millimeter / 1 7/16", power supply frequency 50 - 60 Hertz.

Product variant

Price

starting at $1,354.50

Order

EBM.36+LP/P-18V

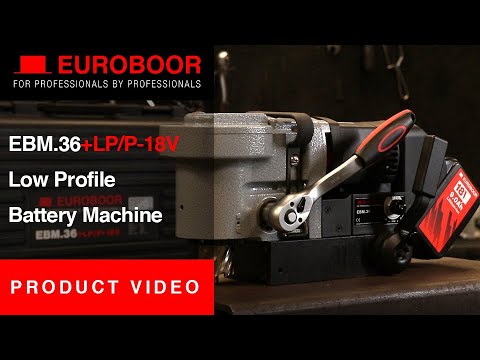

Looking for a reliable and powerful magnetic drilling machine that offers maximum convenience? Meet the Euroboor Battery Machine, EBM.36+LP/P-18V—the most compact and low-profile battery-operated magnetic drilling machine available today. Ideal for professionals who need precision and efficiency in tight spaces, this cordless, lightweight machine runs on an 18V battery compatible with the Makita LXT 18V platform.

This machine can drill up to 36 mm (1 7/16”) in diameter through various materials, including steel and other metals, and offers versatile functions such as countersinking and twist drilling. With its high-torque output and durable construction, the EBM.36+LP/P-18V handles the toughest jobs with ease, ensuring precision and reliability on every project.

The machine is equipped with a Quick-Switch feed handle, allowing you to easily mount the operating handle on either side of the machine. This offers extra flexibility when drilling in hard-to-reach positions. The handle for the permanent magnet can also be mounted on both sides. The result: maximum control and ease of use, wherever you work.

Because it is compatible with the Makita LXT 18V platform, you can use the same battery across different cordless tools, saving money and eliminating interruptions on the job. With the powerful battery, you can drill a large number of holes without losing any power. Our HSS14 Battery Test has shown that as many as 44 holes could be drilled in 10mm / 0.39-inch thick S235 steel (Battery: 9Ah).

Equip yourself with the best. Experience the superior quality and performance of the Euroboor Battery Machine, EBM.36+LP/P-18V, and feel the difference today!

Available in 3 versions:

• Machine (battery and charger not included)
• Set 1: Machine + 2x 5Ah battery and charger*

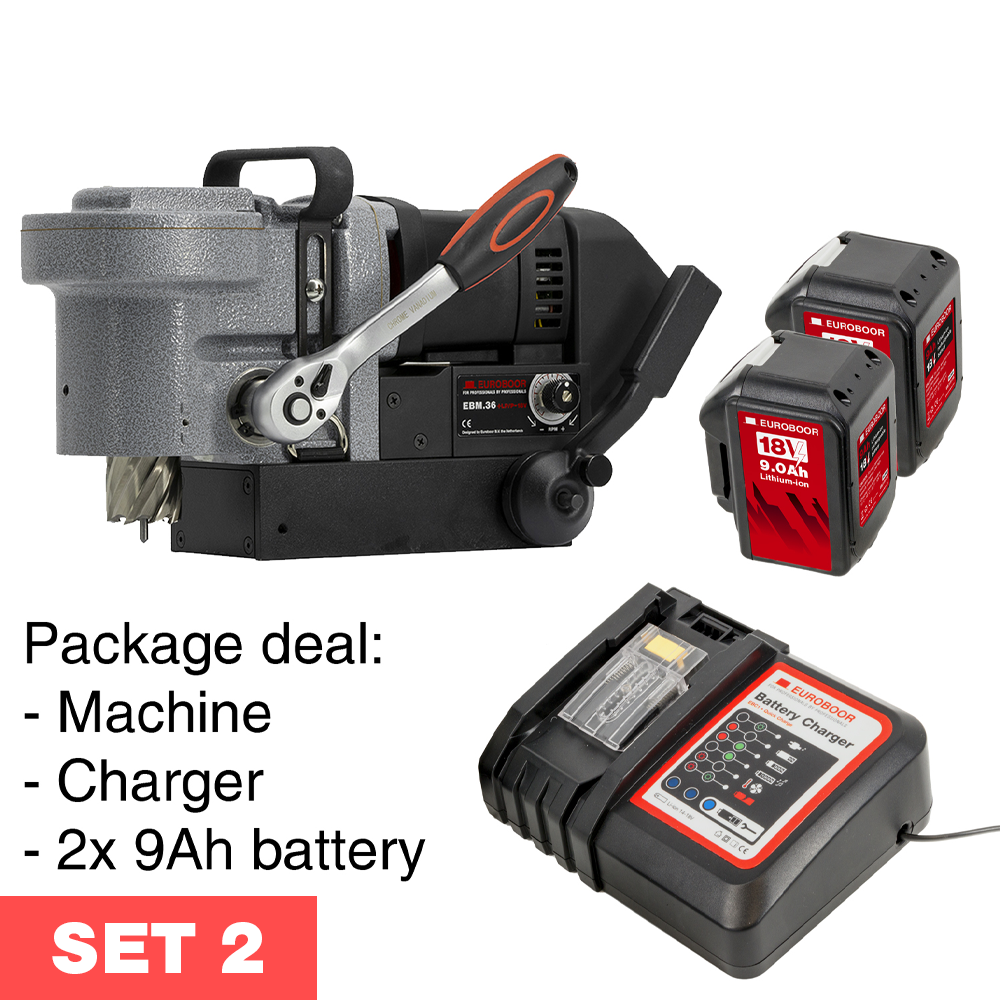

• Set 2: Machine + 2x 9Ah battery and charger*
*In the USA, sets include 1 battery instead of 2

Accessories

Properties
Variations
Fact sheet
Package contents
Parts list / manual

Properties

Gyro-Tec

Overload protection

Overheat protection

Integrated motor cable

Magnet LED indicator

Adjustable speed

Battery operated

Brushless motor

Permanent magnet

Makita LXT 18V platform

LED load indicators

In corner drilling

Connection
minimum diameter annular cutters (inch)	7/16
minimum diameter annular cutters (millimeter)	12
maximum diameter annular cutters (inch)	1 7/16
maximum diameter annular cutters (millimeter)	36
minimum diameter countersinking (inch)	3/8
minimum diameter countersinking (millimeter)	10
maximum diameter countersinking (inch)	1 9/16
maximum diameter countersinking (millimeter)	40
minimum diameter twist drills (inch)	1/16
minimum diameter twist drills (millimeter)	1
maximum diameter twist drills (inch)	1/2
maximum diameter twist drills (millimeter)	13
connection 1 model	inside
connection 1 size (inch)	3/4
connection 1 size (millimeter)	19.05
connection 1 type	Weldon
Dimensions
stroke (inch)	1 9/16
stroke (millimeter)	40
magnet length (inch)	6 15/16
magnet length (millimeter)	176
magnet width (inch)	3 3/4
magnet width (millimeter)	85
magnet height (inch)	1 3/4
magnet height (millimeter)	45
minimum height (inch)	6 14/16
minimum height (millimeter)	174
maximum height (inch)	6 14/16
maximum height (millimeter)	174
length (inch)	13 3/8
width (inch)	5 1/2
length (millimeter)	340
width (millimeter)	140
height (inch)	6 9/16
height (millimeter)	167
Properties
magnetic force (kilogram)	650
magnetic force (pound)	1433
electric rotation speed adjustment	yes
products in kit	Set includes machine, charger and two 5 Ah batteries., Set includes machine, charger and two 9 Ah batteries., Set includes machine, charger and one 5 Ah batteries., Set includes machine, charger and one 9 Ah batteries.
nett weight (pound)	22.5, 24.9
nett weight (kilogram)	10.2, 11.3
system of measurement	mm (metric)
application	drilling, countersinking
Performance
no-load minimum rotation speed gear 1 (rotations per minute)	270
no-load maximum rotation speed gear 1 (rotations per minute)	430
no-load rotation speed gear 1 (rotations per minute)	430
load minimum rotation speed gear 1 (rotations per minute)	270
load maximum rotation speed gear 1 (rotations per minute)	430
load rotation speed gear 1 (rotations per minute)	430
rotation speed gear 1 (rotations per minute)	430
corner drilling at 0 degrees, center to edge (inch)	2
corner drilling at 90 degrees, center to edge (inch)	2 3/32
corner drilling at 90 degrees, center to edge (millimeter)	53
corner drilling at 45 degrees, center to edge (inch)	2 23/64
corner drilling at 45 degrees, center to edge (millimeter)	60
corner drilling at 0 degrees, center to edge (millimeter)	50
Supply
motor power (Watt)	1000
total power (Watt)	1000
power supply frequency (Hertz)	50 - 60
power supply current	AC
power supply source	battery
power supply type	electric
Usage
minimum working temperature (degrees Celcius)	5
maximum working temperature (degrees Celcius)	40
maximum working temperature (Farenheit)	104
Other
minimum working temperature (Farenheit)	41
total product quantity included in kit	3, 4

Variations

No.	Product variant	load minimum rotation speed gear 1 (rotations per minute)	load maximum rotation speed gear 1 (rotations per minute)	load rotation speed gear 1 (rotations per minute)	total product quantity included in kit	Price excl. VAT	Quantity
No.						Price excl. VAT	Quantity
11036800130004 EBM.36+LP/P-18V	Product variant: Machine	speed load min gear1 (v_1min / RPM):	speed load max gear1 (v_1max / RPM):	speed load gear1 (v_1 / RPM):	kit total quantity (Ktq):	$1,354.50	Cordless magnetic drilling machine, 36 mm / 1 7/16".
30511036009004 EBM.36+LP/P-18V 5Ah Package Deal	Product variant: Set 1: Machine + 2x 5Ah battery and charger	speed load min gear1 (v_1min / RPM): 270	speed load max gear1 (v_1max / RPM): 430	speed load gear1 (v_1 / RPM): 430	kit total quantity (Ktq): 4	$0.00	Cordless magnetic drilling machine, 36 mm / 1 7/16", EU.
30511036010004 EBM.36+LP/P-18V 9Ah Package Deal	Product variant: Set 2: Machine + 2x 9Ah battery and charger	speed load min gear1 (v_1min / RPM): 270	speed load max gear1 (v_1max / RPM): 430	speed load gear1 (v_1 / RPM): 430	kit total quantity (Ktq): 4	$0.00	Cordless magnetic drilling machine, 36 mm / 1 7/16", EU.
