ECO.32-T

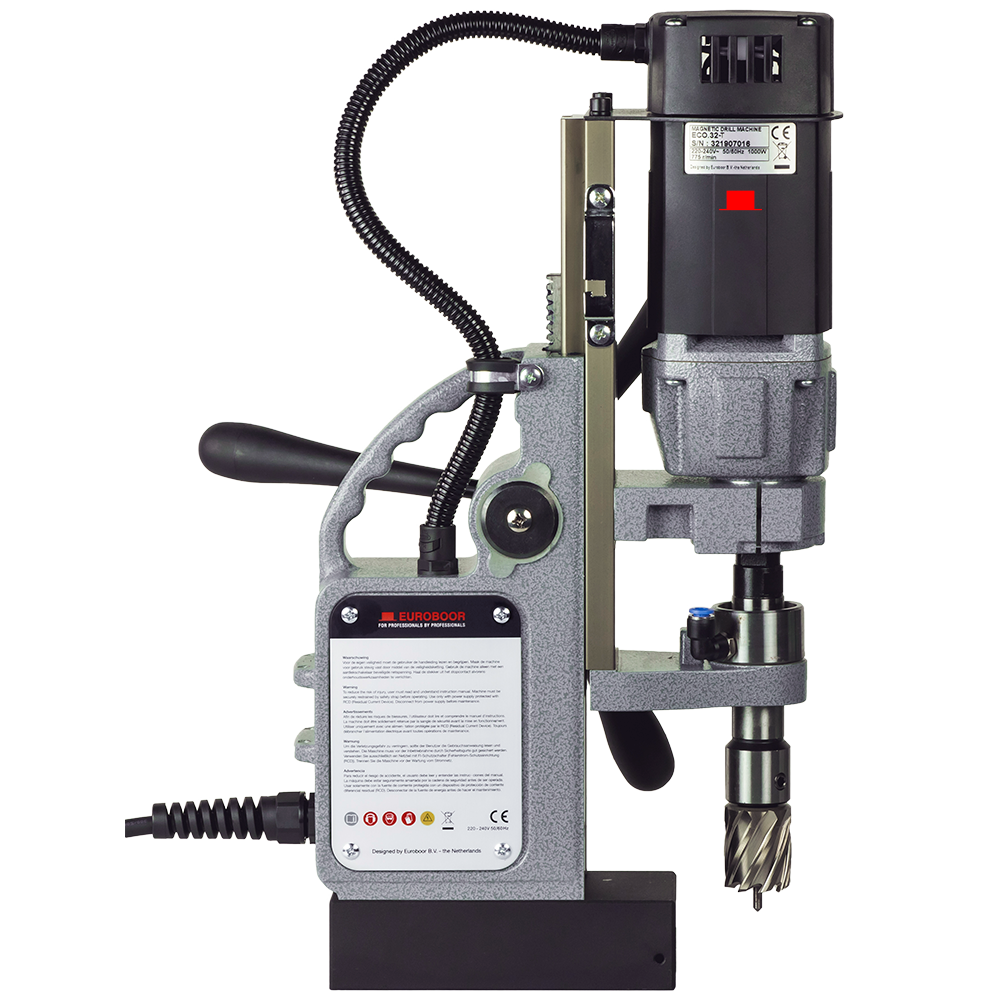

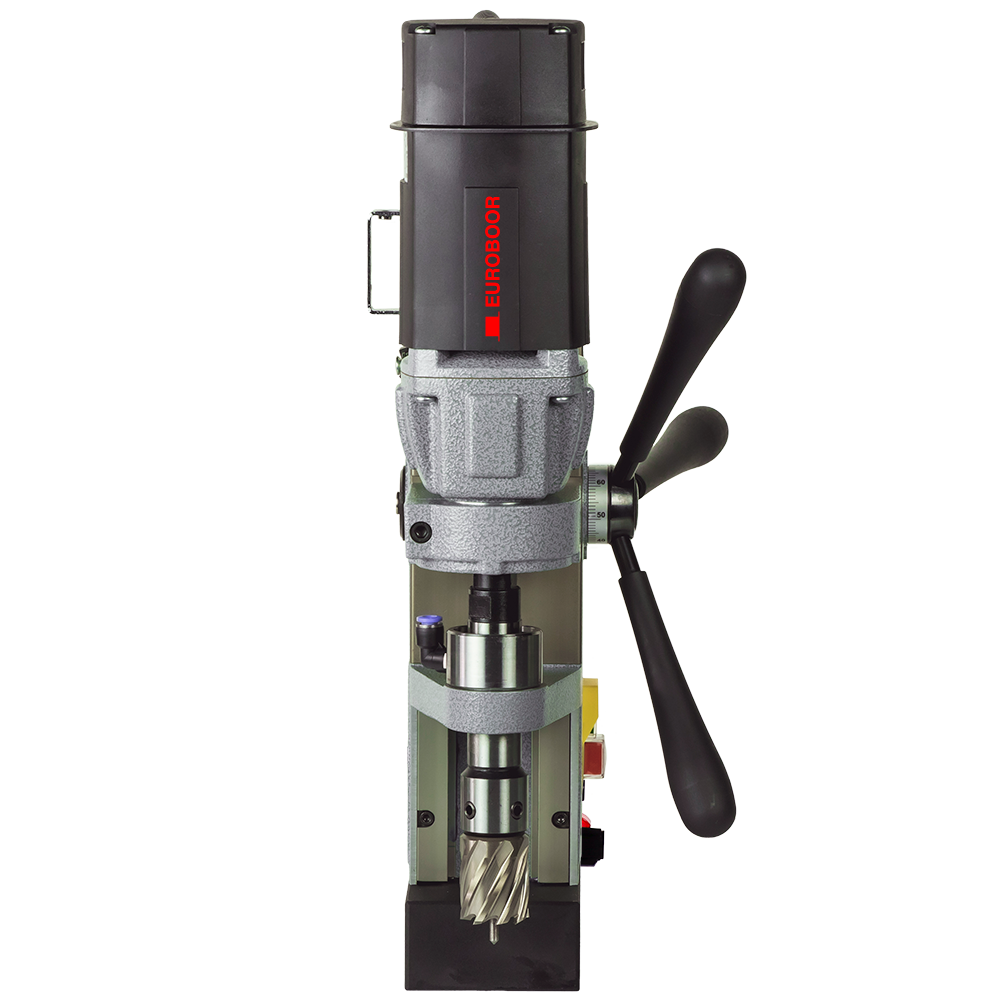

Magnetic drilling machine, 32 mm, 220 V.

Magnetic drilling machine, annular cutters max. dia 32 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction bidirectional.

EAN code

8718375390030

Get a quote

The ECO.32/T is your compact all-rounder for drilling, countersinking, and tapping – hassle-free. Weighing just 11 kg, this magnetic drilling machine combines power, precision, and ease of use in one.

With its powerful 1000 W motor, bidirectional rotation, and variable speed control, you can easily tap up to M12. The 1500 kg holding force of the electromagnet ensures a stable grip – ideal for heavy-duty applications or working at height.

Annular cutting up to Ø 32 mm, countersinking up to Ø 40 mm, tapping from M3 to M12 – the ECO.32/T handles it all. Versatile, reliable, professional. Ready for any job.

Accessories

Properties
Fact sheet
Package contents
Parts list / manual

Properties

2 way magnet (TempTec)

Magnet LED indicator

Tapping

Adjustable speed

R/L rotation

Connection
minimum diameter threading (inch)	1/8
minimum diameter threading (millimeter)	M3
maximum diameter threading (inch)	1/2
maximum diameter threading (millimeter)	M12
minimum diameter annular cutters (inch)	1/2
minimum diameter annular cutters (millimeter)	12
maximum diameter annular cutters (inch)	1 1/4
maximum diameter annular cutters (millimeter)	32
minimum diameter countersinking (inch)	3/8
minimum diameter countersinking (millimeter)	10
maximum diameter countersinking (inch)	1 9/16
maximum diameter countersinking (millimeter)	40
minimum diameter twist drills (inch)	1/16
minimum diameter twist drills (millimeter)	1
maximum diameter twist drills (inch)	1/2
maximum diameter twist drills (millimeter)	13
connection 1 model	inside
connection 1 size (inch)	3/4
connection 1 size (millimeter)	19.05
connection 1 type	Weldon
Dimensions
stroke (inch)	5 15/16
stroke (millimeter)	150
magnet length (inch)	6 5/16
magnet length (millimeter)	160
magnet width (inch)	3 1/8
magnet width (millimeter)	80
magnet height (inch)	1 5/8
magnet height (millimeter)	42
minimum height (inch)	14 9/16
minimum height (millimeter)	370
maximum height (inch)	20 3/16
maximum height (millimeter)	512
length (inch)	12 5/8
width (inch)	8 1/4
length (millimeter)	320
width (millimeter)	210
height (inch)	20 3/16
height (millimeter)	512
Properties
rotation direction	bidirectional
type of gear box lubrication	grease
magnetic force (kilogram)	1500
magnetic force (pound)	3305
electric rotation speed adjustment	yes
nett weight (pound)	24.3
nett weight (kilogram)	11
system of measurement	mm (metric)
application	drilling, countersinking, threading
Performance
no-load minimum rotation speed gear 1 (rotations per minute)	150
no-load maximum rotation speed gear 1 (rotations per minute)	600
no-load rotation speed gear 1 (rotations per minute)	600
load minimum rotation speed gear 1 (rotations per minute)	75
load maximum rotation speed gear 1 (rotations per minute)	225
load rotation speed gear 1 (rotations per minute)	225
rotation speed gear 1 (rotations per minute)	600
Supply
motor power (Ampère)	9.1
motor power (Watt)	1000
total power (Ampère)	9.5
total power (Watt)	1050
power supply frequency (Hertz)	50 - 60
power supply current	AC
power supply connection	plug according CEE 7/7
power supply source	mains supply
power supply type	electric
power supply tension (Volt)	220 - 240
