Bevelling machine, 220 V, 1800 W.

Bevelling machine, power supply tension 220 - 240 Volt, motor power 1800 Watt.

EAN code8719956044120
Price
€1,724.00 excl. VAT
€2,086.04 incl. VAT
Stock Directly available
Order

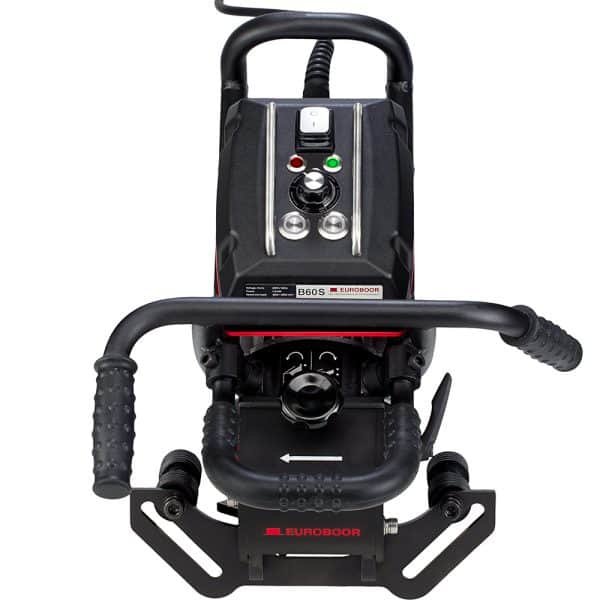

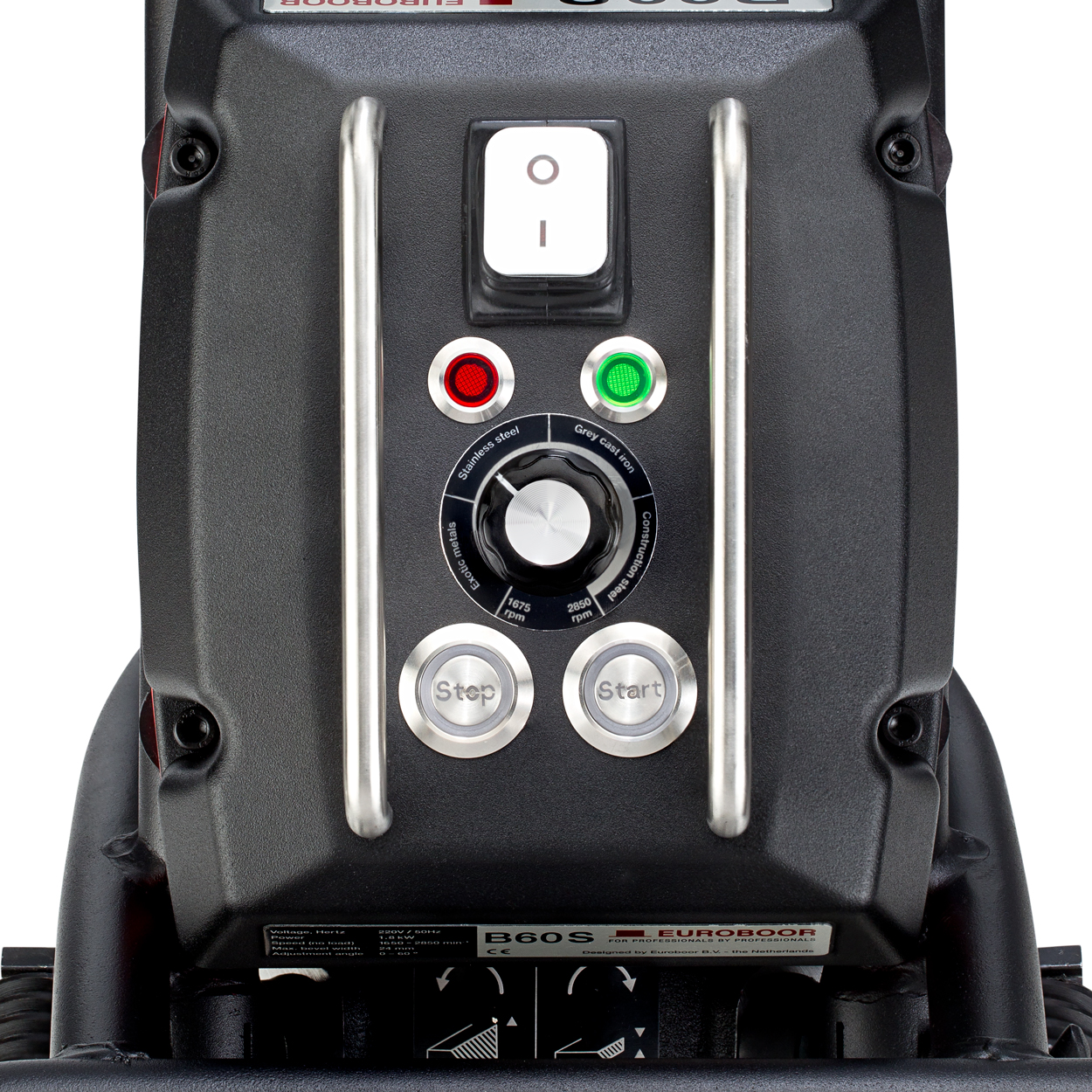

The Euroboor B60S bevelling machine has a maximum bevel width of 24 mm, at an angle of 45˚, which is unique in the market. Furthermore, this machine benefits from an exceptional powerful 1800 W motor making this machine very suitable for not only cutting stainless steel but a wide variety of materials. The Euroboor B60S is equipped with overload protection and has a variable speed, including material type indicator. This machine is suitable to cut both plate and pipe material.


Contact us

Accessories

Properties

Dimensions
maximum bevel size at 0 degrees (millimeter)24
maximum bevel size at 0 degrees (inch)15/16
maximum bevel size at 15 degrees (millimeter)20.2
maximum bevel size at 15 degrees (inch)4/5
maximum bevel size at 30 degrees (millimeter)20.6
maximum bevel size at 30 degrees (inch)13/16
maximum bevel size at 37.5 degrees (millimeter)21.4
maximum bevel size at 37.5 degrees (inch)5/6
maximum bevel size at 45 degrees (millimeter)24
maximum bevel size at 45 degrees (inch)15/16
maximum bevel size at 60 degrees (millimeter)20.4
maximum afschuining op 45 graden (inch)4/5
minimum bevel size (millimeter)20.2
minimum bevel size (inch)4/5
maximum bevel size (millimeter)24
maximum bevel size (inch)15/16
length (millimeter)415
width (millimeter)375
height (millimeter)268
Properties
nett weight (pound)53
nett weight (kilogram)24.1
system of measurementmm (metric)
applicationbeveling
Performance
no-load minimum rotation speed gear 1 (rotations per minute)1675
no-load maximum rotation speed gear 1 (rotations per minute)2850
no-load rotation speed gear 1 (rotations per minute)2850
Supply
motor power (Watt)1800
power supply frequency (Hertz)50 - 60
power supply connectionplug according CEE 7/7
power supply sourcemains supply
power supply typeelectric
power supply tension (Volt)220 - 240
Usage
maximum machining angle (degrees)60
minimum pipe diameter (millimeter)150

Fact sheet

Package contents

  • 1x case
  • 1x bevelling machine B60S
  • 1x Allen key 4 mm (5/32")
  • 1x Allen key 6 mm (14/64")
  • 1x Allen key 8 mm (5/16")
  • 1x torx key (T20)
  • 1x open-end spanner 18 mm (11/16")
  • 1x open-end spanner 32 mm (1 1/4")
  • 1x user manual
  • 1x ear protection
  • 1x safety goggles
  • 1x safety gloves
