Magnetic drilling machine, 130 mm, 220 V.

Magnetic drilling machine, annular cutters max. dia 130 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction bidirectional.

Order codeECO.130S/T
EAN code8720999139698
Order
Show alternatives

The Euroboor ECO.130S/T magnetic core drilling machine cuts holes up to ø 130 mm and is particularly suitable for tapping. This magnetic core drilling machine has an extremely powerful 2000 W motor with an oil lubricated four-speed gearbox and innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.


Contact us

Key Characteristics
Four-speed oil lubricated gearbox
Particularly suitable for tapping
Right/left rotating
Morse Taper 4 spindle with integrated tool cooling and lubrication
Electronic speed adjustment
Torque control on motor house
Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
Reduced risk of damaging machine, tools and workpiece and hurting operator
Suitable for use in areas and workplaces where power supply is of less quality
Reduced risk of armature damage
Reduced risk of control unit(s) damage
Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement

Accessories

Properties

ECO.130S/T
Overload protection
ECO.130S/T
Power fluctuation protection
ECO.130S/T
2 way magnet (TempTec)
ECO.130S/T
Overheat protection
ECO.130S/T
Magnet LED indicator
ECO.130S/T
Power surge protection
ECO.130S/T
Tapping
ECO.130S/T
Adjustable speed
ECO.130S/T
Oil lubricated gearbox
ECO.130S/T
R/L rotation
ECO.130S/T
Torque control
ECO.130S/T
Smart Restart
Connection
minimum diameter threading (inch)1/8
minimum diameter threading (millimeter)M3
maximum diameter threading (inch)1 17/32
maximum diameter threading (millimeter)M39
minimum diameter annular cutters (inch)1/2
minimum diameter annular cutters (millimeter)12
maximum diameter annular cutters (inch)5 1/8
maximum diameter annular cutters (millimeter)130
minimum diameter countersinking (inch)3/8
minimum diameter countersinking (millimeter)10
maximum diameter countersinking (inch)5 5/16
maximum diameter countersinking (millimeter)135
minimum diameter twist drills (inch)1/16
minimum diameter twist drills (millimeter)1
maximum diameter twist drills (inch)1 25/32
maximum diameter twist drills (millimeter)45
connection 1 modelinside
connection 1 size (inch)1 1/4
connection 1 size (millimeter)31.75
connection 2 morse taper / drill chuck classMT4
connection 1 typeWeldon
connection 2 modeloutside
connection 2 typemorse taper
Dimensions
stroke (inch)10 1/4
stroke (millimeter)260
magnet length (inch)12 31/32
magnet length (millimeter)330
magnet width (inch)4 5/16
magnet width (millimeter)110
magnet height (inch)2 19/32
magnet height (millimeter)66
minimum height (inch)20 7/16
minimum height (millimeter)520
maximum height (inch)30 15/16
maximum height (millimeter)785
length (inch)23 7/16
width (inch)10 1/4
length (millimeter)595
width (millimeter)260
height (inch)20 7/16
height (millimeter)520
Properties
rotation directionbidirectional
type of gear box lubricationOil
magnetic force (kilogram)2000
magnetic force (pound)4410
electric rotation speed adjustmentyes
nett weight (pound)72.5
nett weight (kilogram)32.9
system of measurementmm (metric)
applicationDrilling, Countersinking, Tapping
Performance
no-load minimum rotation speed gear 1 (rotations per minute)40
no-load maximum rotation speed gear 1 (rotations per minute)105
no-load rotation speed gear 1 (rotations per minute)105
load maximum rotation speed gear 1 (rotations per minute)85
load rotation speed gear 1 (rotations per minute)85
rotation speed gear 1 (rotations per minute)105
no-load minimum rotation speed gear 2 (rotations per minute)60
no-load maximum rotation speed gear 2 (rotations per minute)170
no-load rotation speed gear 2 (rotations per minute)170
load minimum rotation speed gear 2 (rotations per minute)50
load maximum rotation speed gear 2 (rotations per minute)150
load rotation speed gear 2 (rotations per minute)150
no-load minimum rotation speed gear 3 (rotations per minute)130
no-load maximum rotation speed gear 3 (rotations per minute)350
no-load rotation speed gear 3 (rotations per minute)350
load minimum rotation speed gear 3 (rotations per minute)100
load maximum rotation speed gear 3 (rotations per minute)260
load rotation speed gear 3 (rotations per minute)260
no-load minimum rotation speed gear 4 (rotations per minute)210
no-load maximum rotation speed gear 4 (rotations per minute)565
no-load rotation speed gear 4 (rotations per minute)565
load minimum rotation speed gear 4 (rotations per minute)170
load maximum rotation speed gear 4 (rotations per minute)460
load rotation speed gear 4 (rotations per minute)460
Supply
motor power (Ampère)18.2
motor power (Watt)2000
total power (Ampère)19.1
total power (Watt)2100
power supply frequency (Hertz)50 - 60
power supply currentAC
power supply connectionplug according CEE 7/7
power supply sourcemains supply
power supply typeelectric
power supply tension (Volt)220 - 240
Other
rotation speed gear 2 (rotations per minute)170
rotation speed gear 3 (rotations per minute)350
rotation speed gear 4 (rotations per minute)565

Fact sheet

Package contents

  • 1x ECO.130 Magnetic drilling machine
  • 3x handles (Capstan hub)
  • 1x side handle M12
  • 1x Allen key 2.5 mm
  • 1x Allen key 4 mm
  • 1x Allen key 5 mm
  • 1x Allen key 6 mm
  • 1x lubrication/cooling system
  • 1x safety chain
  • 1x arbor MT 4 - 31.75 (1 1/4"), including lubrication ring (IMC.40/32)
  • 1x arbor MT 3 - 19.05 (3/4"), including lubrication ring (IMC.30/19-N)
  • 1x Morse Taper reduction MT4 to MT3 (IBK.MC4-MC3)
  • 1x safety guard
  • 1x Morse taper ejector drift key
  • 1x safety ear protection
  • 1x safety goggles
  • 1x safety gloves

Manual

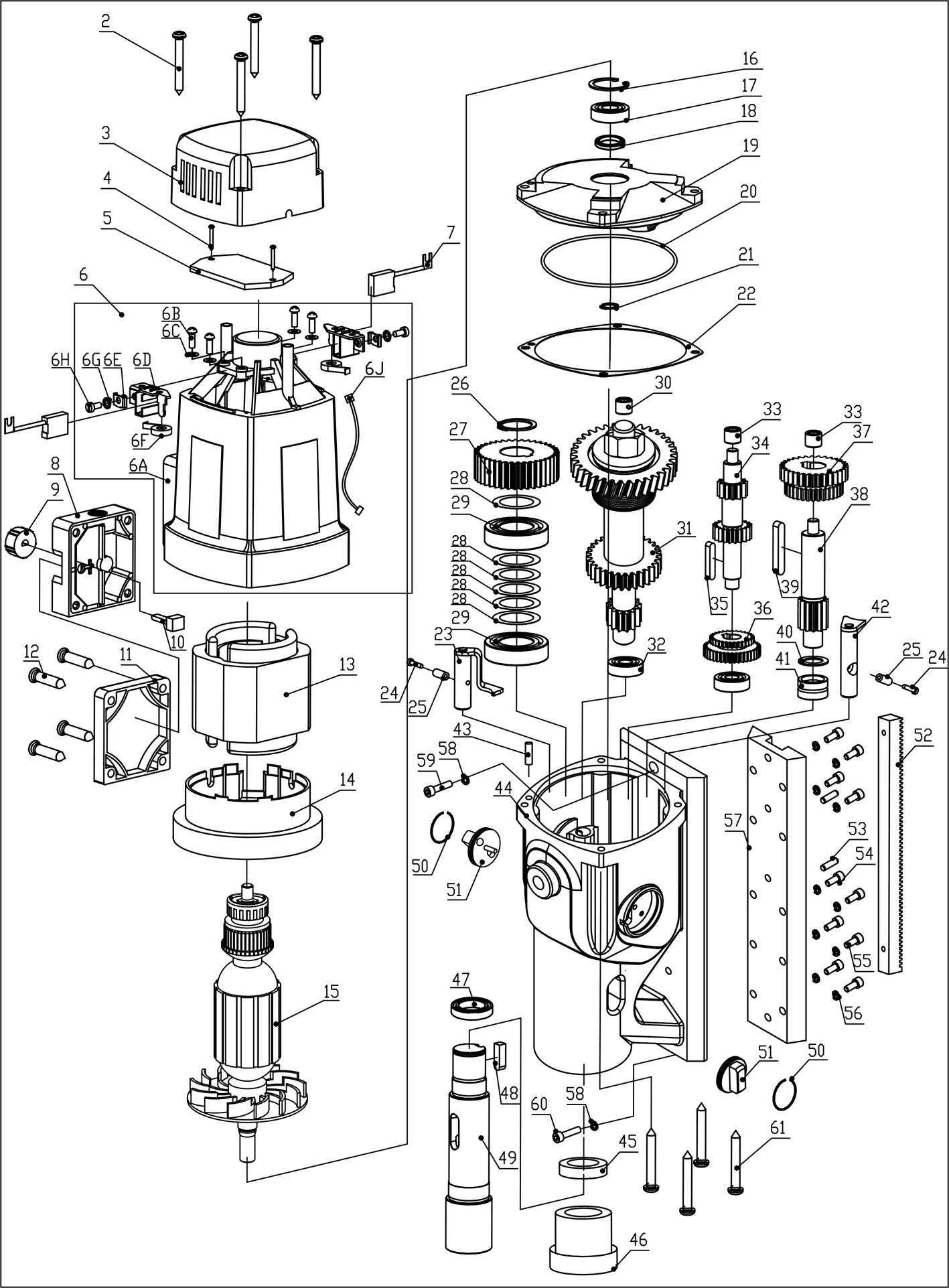

MOTORBODYCASE
NoSearch codeDescriptionQty
2050.0106Screw 4.8 x 45
81821004803004
4
3100.0322-01End cover
81231300021004
1
4055.0022AScrew
81821000049004
2
5100S.0340Control unit 110 / 220 Volt
81411000021004
1
6080.1010CKHousing incl. carbon brush holder
81231200045004
1
7100.0368Carbon brush set 220V
81261300011004
1
8100.4576Torque switch housing
81641500024004
1
9100.4574Wheel red
81424000005004
1
10130.0026Potentiometer
86821000016004
1
11100.0611Torque/speed switch cap
81641000005004
1
12100.0617Screw PKVZ 6 x 45
81821006009004
4
13130S.0015AField
81210020015004
1
14130.0391Baffle
86821000031004
1
15130.1011Armature set 220V
81220020035004
1
16032.0166Circlip 472/28/1.2
81823828002004
1
17050.9070Bearing 6001V V
81331000137004
1
18100S.0064Bearing 15 x 23 x 3
81331000033004
1
19130.0401Inner gear plate
86321800012004
1
20100S.0071O-ring 106 x 1.8
81811200017004
1
21100.0571Circlip 471 11 x 1
81823811001004
1
22100.0458Gasket
81811500001004
1
23100S.1006Clutch shaft
81321000011004
1
24020.0329Screw M4 x 16
81821004019004
2
25050.0082Screw holder
81826000029004
2
26100.0426Circlip 471 24 x 1.2
81823824001004
1
27130.0018-01Gear
81321500028004
1
28100.0441Adapter ring
81823600008004
6
29100.0446Bearing 6005
81331000027004
2
30040.0161Needle bearing HK0810
81331000013004
1
31100.4312Friction clutch complete assembly (7T)
81322000008004
1
32080.0506Bearing 6000
81331000021004
2
33040.0161ABearing
81331000083004
2
34100.4332Axle 2 12T+17T
81321400011004
1
35100.4496Key 5 x 5 x 28
81321800029004
1
36100.4491Double gear 1 25T+39T
81341000020004
1
37100.4320Double gear 2 36T+41T
81341200007004
1
38100.4334Axle 3 (13T)
81321400012004
1
39080.0526Key 6 x 6 x 40
81321800006004
1
40080.4486Washer 14 x 22 x 1
81823014002004
1
41080.0481Needle bearing
81331000020004
1
42100S.1007Clutch shaft
81321000012004
1
43100.0549Casing pin
81825000004004
1
44130.1017Gear-box with Speed label
81251100031004
1
45100S.0067Wool felt ring 45 x 58 x 5
81811204501004
1
46100S.0066Bearing NKX-45
81331000031004
1
47100S.0065Bearing 35 x 42 x 8
81331000034004
1
48130.0431Key
86220020011004
1
49130.0462Spindle-drive-shaft
81311000021004
1
50050.0078Ring 41.5 x 36.5 x 1.5
81823541501004
2
51100S.1014Gear switch
81321200004004
2
52100S.0076Rack 1.5 x 58T
81231500014004
1
53020.0003Pin
81825000033004
2
54020.0106Screw M6 x 16
81821000002004
8
55020.0106EBolt M6 x 14
81822006008004
2
56020.0111Washer M6 DIN7980
81823000001004
10
57100S.0462XSlide
81661000032004
1
58020.0111Washer M6 DIN7980
81823000001004
2
59020.0146Screw M6 x 25
81821000048004
1
60020.0146BScrew M6 x 35
81821006017004
1
61100.0459Screw BK 5.5 x 45
81821005500004
4

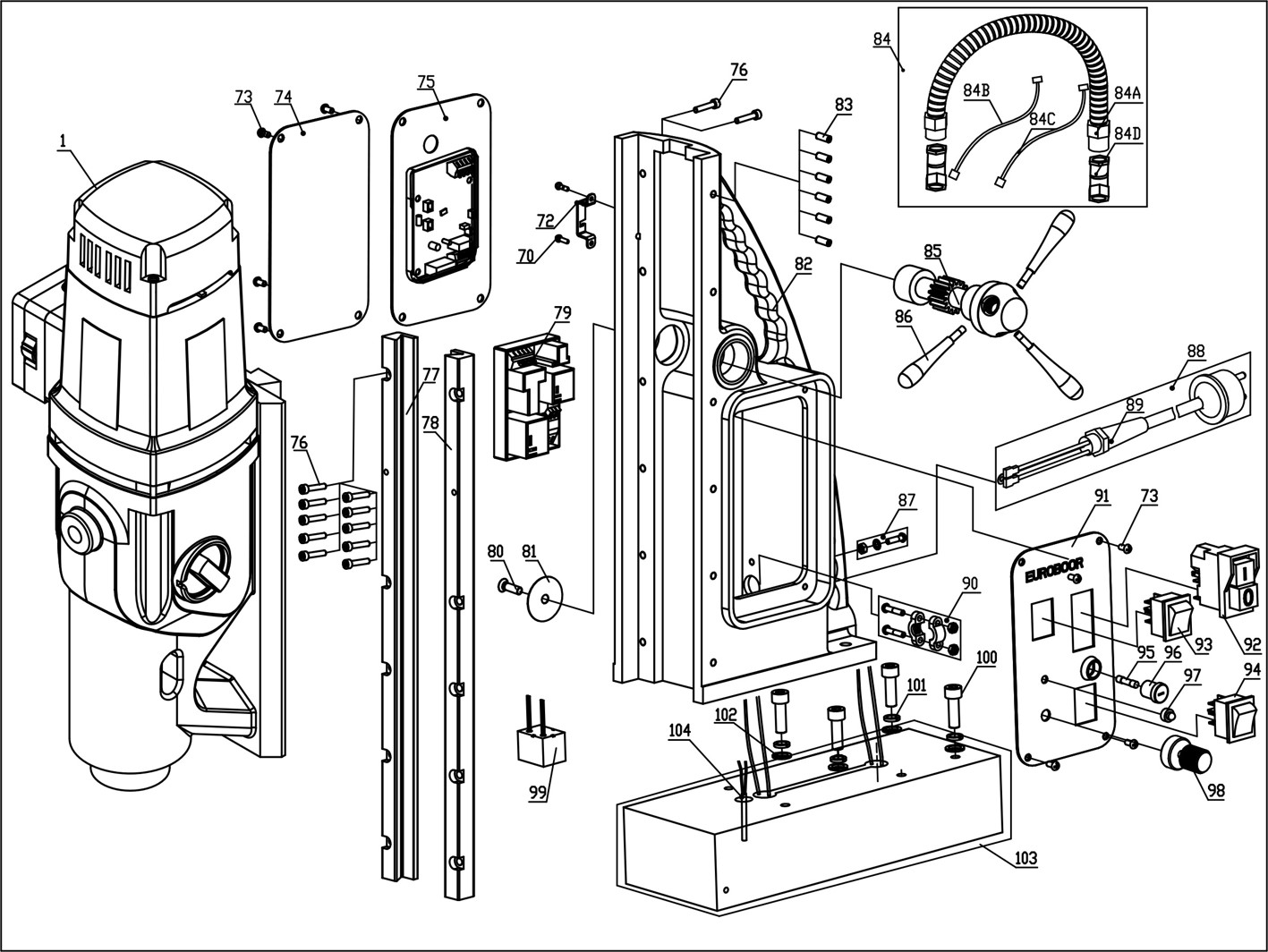

MOTORBODYCASE
NoSearch codeDescriptionQty
1130.1001SMotor unit 220V
81611520007004
1
70KSP.MSScrew M5 x 10
81821005029004
2
72KSP.M/3Tank holder
81681300012004
1
73020.0101Panel screw BKVZ M4 x 8
81821004001004
8
74080.0016BX.5ARear panel 220V
81831320010004
1
75100.1028Speed control unit 220V
81411020063004
1
76100.0022Bolt M5 x 20
81822004006004
12
77100.0193AAluminium rail (L) 22 x 18.5 x 442.5
81661300033004
1
78100.0193BAluminium rail (R) 22 x 18.5 x 442.5
81661300035004
1
79100.4002Control unit 2 ECO.100 220V 1501 ->
81411020031004
1
80020.0081Screw BKVZ M6 x 16
81821006001004
1
81020.0077HEnd plate black
81231600016004
1
82100S.1002Frame
81631000019004
1
83020.0516Screw M5 x 5
81821000118004
6
84100.4610Motor cable complete V6
81431200015004
1
84A020.0033Coupling nut PG11
81824611007004
2
84BCS100.0341/2Cable set 1608 ->
81431000022004
1
84CCS100.0503ACable set
81431000018004
1
84D020.0032Adapter PG9 - PG11
81824611008004
2
85100.0101HCapstan hub assembly black
81651000017004
1
86020.0314XArm for capstan
81651300016004
3
87020.0182Grounding screw/washer/nut
81829000002004
1
88100.1016Main cable set 220V EU
81431520009004
1
89020.0031Coupling nut PG11 (main cable)
81824611001004
1
90020.0037Cable clamp complete
81433000008004
1
91130.0008SFront Panel Plate
81831000050004
1
92030E.0091/YMotor switch 220V (5-pin) yellow
81641120003004
1
93100.0152Switch L / R (push) 1800W
81641300003004
1
94020.0011-1Magnet Switch
81641400010004
1
95020.0016BFuse
81422300008004
1
96020.0016Fuse holder
81422300001004
1
97020.0206LED indicator set
81422800002004
1
98050T.1009Potentiometer (turn) knob
81421800010004
1
99100.0018AFilter
81424000001004
1
100100.0006Screw SS M8 x 25
81821008001004
4
101100.0031Washer M8
81823008001004
4
102020.0305Washer M8
81823008003004
4
103130.1022Magnet 220V
81621020029004
1
104100.1008Sensor
81422000006004
1

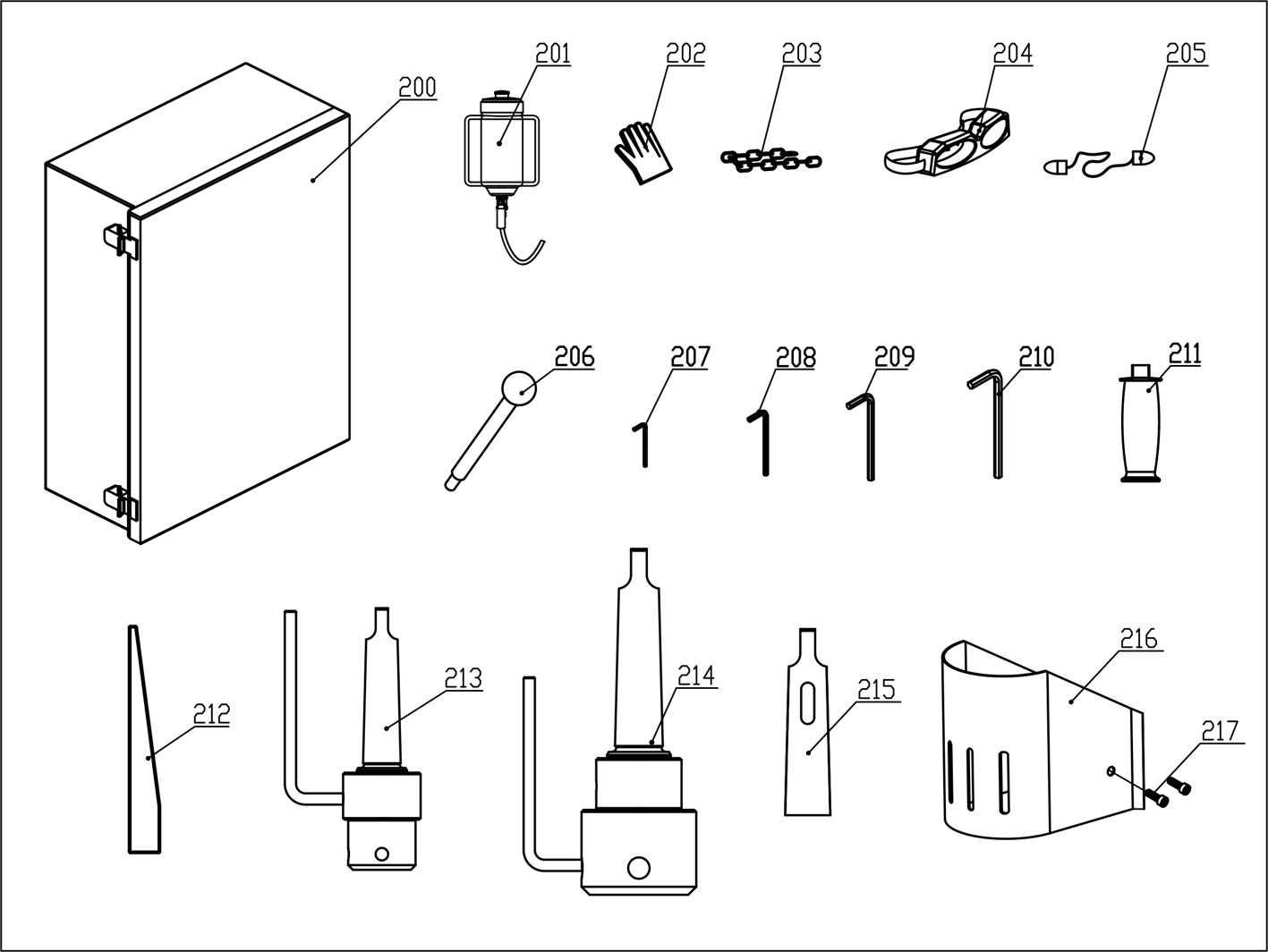

MOTORBODYCASE
NoSearch codeDescriptionQty
200130.0203SCase ECO.130 with sticker
81843500060004
1
201100S.2019Coolant tank
81681300009004
1
202EBGLV.XLEuroboor working gloves size XL
91411000022004
1
203SAF.400Safety chain (1 mtr) with lock
81841300006004
1
204SAF.100Safety goggles
81841500002004
1
205SAF.200Ear plugs
81841500001004
1
206KSP.PPin and knob for cooling tank
81682400005004
1
207IMB.US2.5Allen key 2.5 mm
81842600006004
1
208IMB.US4Allen key 4.0 mm
81842600004004
1
209IMB.US5Allen key 5.0 mm
81842600005004
1
210IMB.US6Allen key 6.0 mm
81842600008004
1
211100S.0002Side handle M12
81631600004004
1
212DRIFT3Drift MT3
81843000016004
1
213100S.2002Spindle MT3 19.05 mm Weldon (3/4")
81311400001004
1
214130.2002Arbor MT3 - 31.75 (1/4")
81311400011004
1
215IBK.MC4-MC3Morse taper reduction MT4 - MT3
31109040301004
1
216SAF.MDMSafety guard for ECO.100/4
81841000017004
1
217020.0223Screw M5 x 10
81821000127004
2
Chat on WhatsApp
newsletter

Sign up for news, insights, and exclusive offers!
