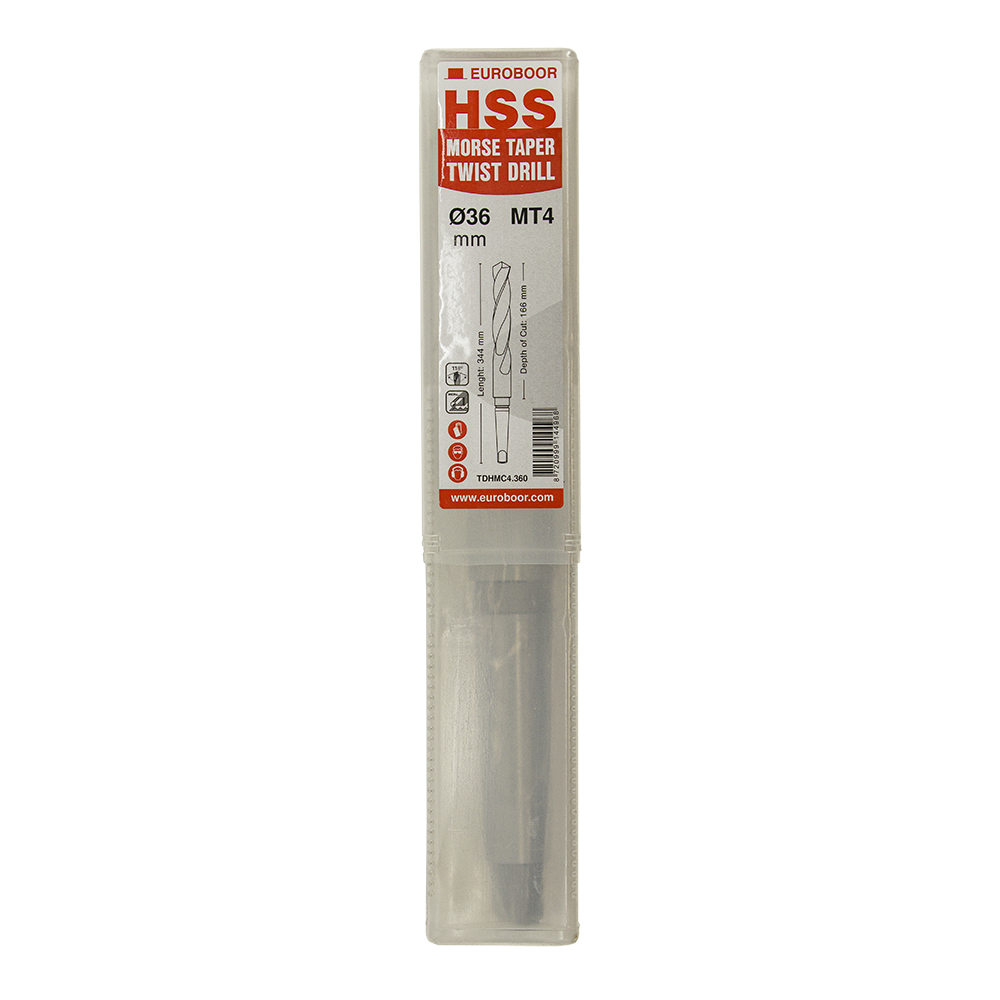

Twist Drill HSS 4241 MC4 Ø 32 to Ø 50

Twist Drill HSS 4241 MC4 Ø 32.0 mm to Ø 50.0 mm

outside / maximum diameter (millimeter)
length (millimeter)
Order
Order codeTDHMC4.320
EAN code8720999144920
Order
Order codeTDHMC4.330
EAN code8720999144937
Order
Order codeTDHMC4.340
EAN code8720999144944
Order
Order codeTDHMC4.350
EAN code8720999144951
Order
Order codeTDHMC4.360
EAN code8720999144968
Order
Order codeTDHMC4.370
EAN code8720999144975
Order
Order codeTDHMC4.380
EAN code8720999144982
Order
Order codeTDHMC4.390
EAN code8720999144999
Order
Order codeTDHMC4.400
EAN code8720999145002
Order
Order codeTDHMC4.410
EAN code8720999145019
Order
Order codeTDHMC4.420
EAN code8720999145026
Order
Order codeTDHMC4.430
EAN code8720999145033
Order
Order codeTDHMC4.440
EAN code8720999145040
Order
Order codeTDHMC4.450
EAN code8720999145057
Order
Order codeTDHMC4.460
EAN code8720999145064
Order
Order codeTDHMC4.470
EAN code8720999145071
Order
Order codeTDHMC4.480
EAN code8720999145088
Order
Order codeTDHMC4.490
EAN code8720999145095
Order

Drilling with maximum stability and direct power transfer

A Morse taper twist drill removes the full material instead of leaving a core, as an annular cutter would. This makes it practical when full material removal, precise positioning or more control is required, such as when drilling blind holes.

Compared to a standard round-shank twist drill, the Morse taper connection gives a more rigid fit between the drill and machine spindle. This supports direct torque transfer, reduces movement during heavier drilling and improves stability and control.

Once the machine is set up, Morse taper drills can be changed quickly by tapping out one drill and inserting another, making diameter changes practical.

The spiral flute design supports efficient chip removal. For steel and other metals, use the correct cutting oil or coolant to extend tool life and support hole quality and accuracy.

This type of drill is especially useful when you:
• need to drill blind holes
• need precise positioning and centring
• want more stability than with standard round-shank twist drills
• need to change between different drill diameters during the job

Available range
• MT2: Ø 15.0 mm to Ø 23.0 mm
• MT3: Ø 24.0 mm to Ø 31.0 mm
• MT4: Ø 32.0 mm to Ø 50.0 mm
• MT5: Ø 55.0 mm to Ø 75.0 mm


Contact us

Key features
High speed steel
118° split point
Spiral flute design for efficient chip removal
Morse taper shank for direct machine fitment
For metal drilling
Available from MT2 to MT5
Commonly manufactured according to DIN 345 for Morse taper shank twist drills
Drill diameter tolerance: h8, supporting consistent and accurate drilling performance

Properties

Connection
connection 1 modeloutside
connection 1 typemorse taper
connection 1 morse taper / drill chuck classMT4
Dimensions
tool point type118 degree split point
length (millimeter)See table
outside / maximum diameter (millimeter)See table
Properties
materialHSS 4241
standard code345
standard typeDIN
system of measurementmm (metric)
applicationDrilling

Variations

No.length (millimeter)outside / maximum diameter (millimeter)Quantity
51913203344004
TDHMC4.320		length (L / mm): 334diameter outside, -to (Do / mm): 32
51913303344004
TDHMC4.330		length (L / mm): 334diameter outside, -to (Do / mm): 33
51913403394004
TDHMC4.340		length (L / mm): 339diameter outside, -to (Do / mm): 34
51913503394004
TDHMC4.350		length (L / mm): 339diameter outside, -to (Do / mm): 35
51913603444004
TDHMC4.360		length (L / mm): 344diameter outside, -to (Do / mm): 36
51913703444004
TDHMC4.370		length (L / mm): 344diameter outside, -to (Do / mm): 37
51913803494004
TDHMC4.380		length (L / mm): 349diameter outside, -to (Do / mm): 38
51913903494004
TDHMC4.390		length (L / mm): 349diameter outside, -to (Do / mm): 39
51914003494004
TDHMC4.400		length (L / mm): 349diameter outside, -to (Do / mm): 40
51914103544004
TDHMC4.410		length (L / mm): 354diameter outside, -to (Do / mm): 41
51914203544004
TDHMC4.420		length (L / mm): 354diameter outside, -to (Do / mm): 42
51914303594004
TDHMC4.430		length (L / mm): 359diameter outside, -to (Do / mm): 43
51914403594004
TDHMC4.440		length (L / mm): 359diameter outside, -to (Do / mm): 44
51914503594004
TDHMC4.450		length (L / mm): 359diameter outside, -to (Do / mm): 45
51914603644004
TDHMC4.460		length (L / mm): 364diameter outside, -to (Do / mm): 46
51914703644004
TDHMC4.470		length (L / mm): 364diameter outside, -to (Do / mm): 47
51914803694004
TDHMC4.480		length (L / mm): 369diameter outside, -to (Do / mm): 48
51914903694004
TDHMC4.490		length (L / mm): 369diameter outside, -to (Do / mm): 49
