Stiftfrezen

Stiftfrezen

Afmetingen
  2. Producten
  3. Slijpen
  4. Stiftfrezen
RB A
RB A
RB A
RB A
RB A
RB A

RB A

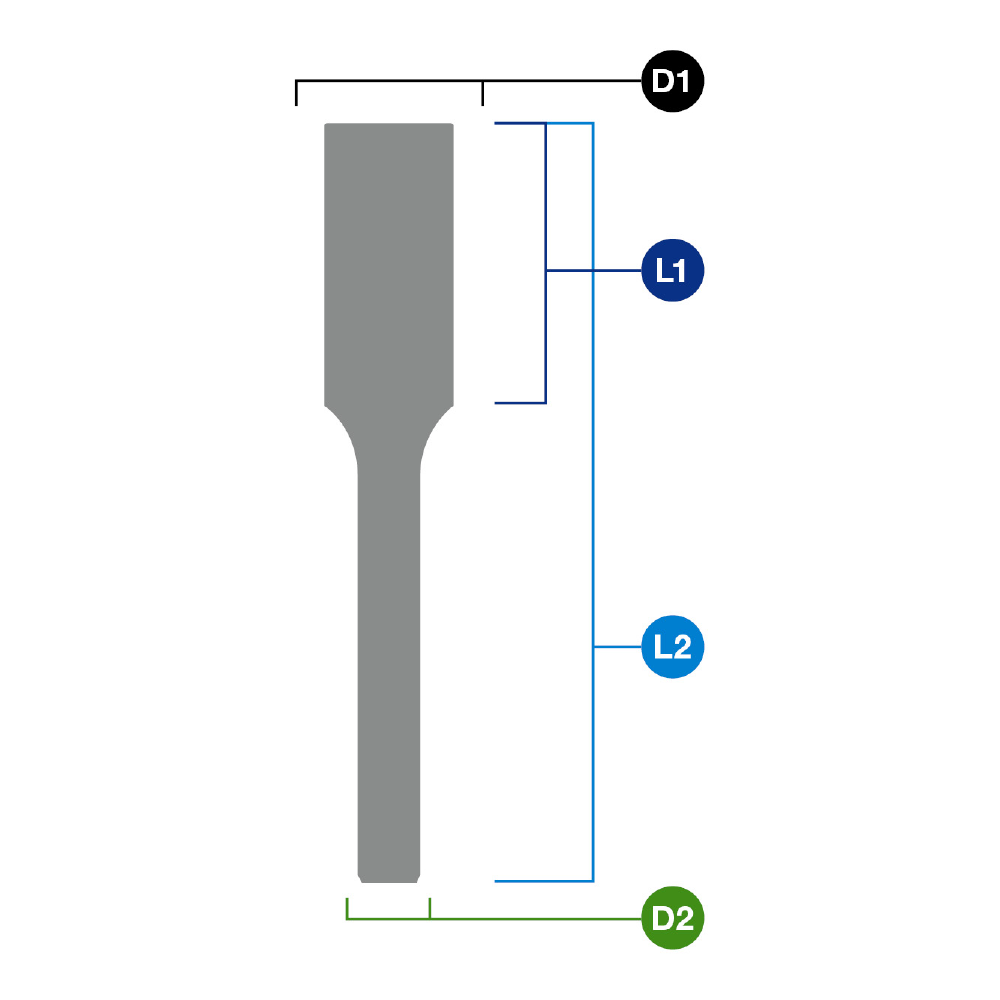

Stiftfrees, stiftfrees vorm A.

Stiftfrees, model A.

diameter kop (inch)
diameter kop (millimeter)
diameter as (inch)
diameter as (millimeter)
lengte (inch)
lengte (millimeter)
lengte kop (inch)
lengte kop (millimeter)
stiftfrees tand vorm
Prijs
vanaf  €9,00 excl. BTW
€10,89 incl. BTW
Order
Order codeRB.A0303
EAN code8718375417102
Prijs
€9,00 excl. BTW
€10,89 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRB.A0606
EAN code8718375417096
Prijs
€16,60 excl. BTW
€20,09 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRB.A0806
EAN code8718375417119
Prijs
€24,49 excl. BTW
€29,63 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRB.A1006
EAN code8718375417126
Prijs
€36,02 excl. BTW
€43,58 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRB.A1206
EAN code8718375417133
Prijs
€58,71 excl. BTW
€71,04 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRB.A1606
EAN code8718375417140
Prijs
€99,67 excl. BTW
€120,60 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBA.A0606
EAN code8720365555343
Prijs
€25,40 excl. BTW
€30,73 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBA.A1006
EAN code8720365555350
Prijs
€46,25 excl. BTW
€55,96 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBA.A1206
EAN code8720365555367
Prijs
€70,99 excl. BTW
€85,90 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBA.A1606
EAN code8720365555374
Prijs
€116,05 excl. BTW
€140,42 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBD.A0806
EAN code8718375414705
Prijs
€27,77 excl. BTW
€33,60 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBD.A1006
EAN code8718375414712
Prijs
€40,11 excl. BTW
€48,53 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBD.A1206
EAN code8718375414729
Prijs
€63,62 excl. BTW
€76,98 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBD.A1606
EAN code8718375414736
Prijs
€106,22 excl. BTW
€128,53 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBDL.A1006
EAN code8720365555176
Prijs
€43,18 excl. BTW
€52,25 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBDL.A1206
EAN code8720365555183
Prijs
€66,69 excl. BTW
€80,69 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBS.A0303
EAN code8720365554445
Prijs
€9,00 excl. BTW
€10,89 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBS.A0606
EAN code8720365554452
Prijs
€16,60 excl. BTW
€20,09 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBS.A0806
EAN code8720365554469
Prijs
€24,49 excl. BTW
€29,63 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBS.A1006
EAN code8720365554476
Prijs
€36,02 excl. BTW
€43,58 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBS.A1206
EAN code8720365554483
Prijs
€58,71 excl. BTW
€71,04 incl. BTW
Voorraad Direct leverbaar
Order
Order codeRBS.A1606
EAN code8720365554490
Prijs
€99,67 excl. BTW
€120,60 incl. BTW
Voorraad Direct leverbaar
Order

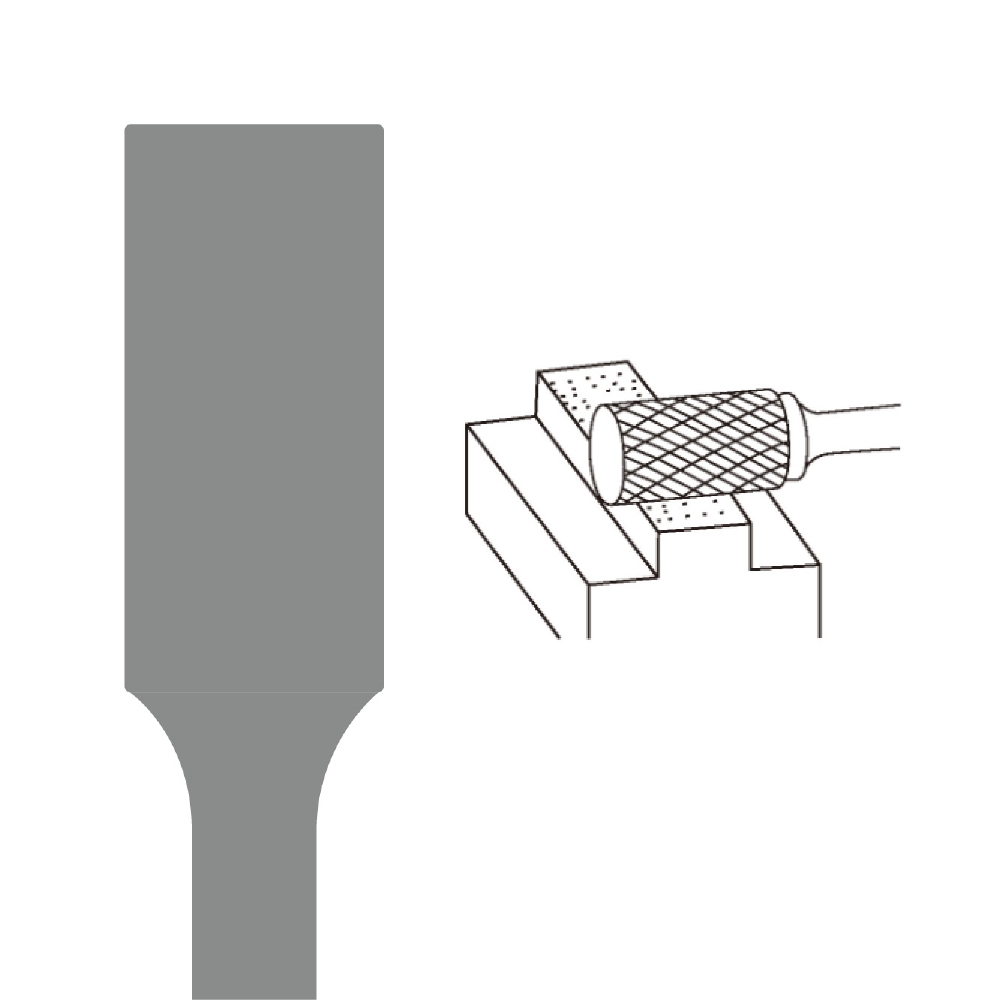

Euroboor Type A Cilinder - Roterende stiftfrees
Zonder kopvertanding
Euroboor hardmetalen stiftfrezen zijn verkrijgbaar in verschillende vertandingen, modellen en afmetingen (zie Technische gegevens hieronder). Uw keuze hangt af van het materiaal dat u moet bewerken en welke afwerking u nodig hebt.

Toepassingen:
Uitsnijden van gaten, ontbramen, egaliseren, uitfrezen, vlakken, gladmaken van lasnaden en vormgeven

Type A is verkrijgbaar in:
- Fine/Spiraalvertanding: Ideaal voor: gietijzer, gietstaal, ongehard staal, laag gelegeerd staal, roestvrij staal, messing, brons/koper
- Uni/Kruisvertanding: Ideaal voor: gietijzer, gietstaal, ongehard staal, laag gelegeerd staal, roestvrij staal, messing, brons/koper
- Diamond vertanding: Ideaal voor: gietijzer, gietstaal, ongehard staal, gehard staal, laaggelegeerd staal, hooggelegeerd staal, warmtebehandeld staal, roestvrij staal, titaniumlegering, messing, brons/koper
- ALU-vertanding: Ideaal voor: kunststoffen, aluminium, zinklegering


Contact opnemen

Eigenschappen

Verbinding
aansluiting 1 modeluitwendig
aansluiting 1 maat (inch)15/64, 7/64
aansluiting 1 maat (millimeter)3, 6
aansluiting 1 typegladde as
Afmetingen
lengte as (inch)1-49/64, 5-45/64, 1
lengte as (millimeter)38, 45, 145
stiftfrees tand vormkruisvertanding, diamond vertanding, spiraalvertanding, Alu vertanding
diameter kop (millimeter)Zie tabel
diameter kop (inch)Zie tabel
diameter as (millimeter)3, 6
diameter as (inch)15/64, 7/64
stiftfrees vormcilindrisch met vertande vlakke kop
stiftfrees modelA
lengte kop (inch)5/8, 1/2, 25/32, 63/64
lengte kop (millimeter)13, 16, 20, 25
lengte (inch)Zie tabel
lengte (millimeter)Zie tabel
Eigenschappen
materiaalwolfraam carbide met 9% kobalt
meetsysteem (mm-inch)mm (metrisch)
toepassingslijpen

Uitvoeringen

Nr.lengte as (inch)lengte as (millimeter)stiftfrees tand vormdiameter kop (millimeter)diameter kop (inch)diameter as (millimeter)diameter as (inch)lengte kop (inch)lengte kop (millimeter)materiaallengte (millimeter)aansluiting 1 maat (inch)aansluiting 1 maat (millimeter)VoorraadPrijs excl. btwAantal
57210030300004
RBS.A0303		length shaft (Ls / inch): 1length shaft (Ls / mm): 38teeth type (Tt): spiraalvertandingdiameter head (Dh / mm): 3diameter head (Dh / inch): 7/64diameter shaft (Ds / mm): 3diameter shaft (Ds / inch): 7/64length head (Lh / inch): 1/2length head (Lh / mm): 13material (Mtr): length (L / mm): 38.5connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm): Direct leverbaar€9.00
57210060600004
RBS.A0606		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): spiraalvertandingdiameter head (Dh / mm): 6diameter head (Dh / inch): 15/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 5/8length head (Lh / mm): 16material (Mtr): length (L / mm): 61connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm): Direct leverbaar€16.60
57210080600004
RBS.A0806		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): spiraalvertandingdiameter head (Dh / mm): 8diameter head (Dh / inch): 5/16diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 25/32length head (Lh / mm): 20material (Mtr): length (L / mm): 65connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm): Direct leverbaar€24.49
57210100600004
RBS.A1006		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): spiraalvertandingdiameter head (Dh / mm): 10diameter head (Dh / inch): 25/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 25/32length head (Lh / mm): 20material (Mtr): length (L / mm): 65connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm): Direct leverbaar€36.02
57210120600004
RBS.A1206		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): spiraalvertandingdiameter head (Dh / mm): 12diameter head (Dh / inch): 15/32diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 63/64length head (Lh / mm): 25material (Mtr): length (L / mm): 70connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm): Direct leverbaar€58.71
57210160600004
RBS.A1606		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): spiraalvertandingdiameter head (Dh / mm): 16diameter head (Dh / inch): 5/8diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 63/64length head (Lh / mm): 25material (Mtr): length (L / mm): 70connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm): Direct leverbaar€99.67
57410030301004
RB.A0303		length shaft (Ls / inch): 1length shaft (Ls / mm): 38teeth type (Tt): kruisvertandingdiameter head (Dh / mm): 3diameter head (Dh / inch): 7/64diameter shaft (Ds / mm): 3diameter shaft (Ds / inch): 7/64length head (Lh / inch): 1/2length head (Lh / mm): 13material (Mtr): wolfraam carbide met 9% kobaltlength (L / mm): 38.5connection size 1 (ConnS_1 / inch): 7/64connection size 1 (ConnS_1 / mm): 3 Direct leverbaar€9.00
57410060601004
RB.A0606		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): kruisvertandingdiameter head (Dh / mm): 6diameter head (Dh / inch): 15/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 5/8length head (Lh / mm): 16material (Mtr): wolfraam carbide met 9% kobaltlength (L / mm): 61connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6 Direct leverbaar€16.60
57410080601004
RB.A0806		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): kruisvertandingdiameter head (Dh / mm): 8diameter head (Dh / inch): 5/16diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 25/32length head (Lh / mm): 20material (Mtr): wolfraam carbide met 9% kobaltlength (L / mm): 65connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6 Direct leverbaar€24.49
57410100601004
RB.A1006		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): kruisvertandingdiameter head (Dh / mm): 10diameter head (Dh / inch): 25/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 25/32length head (Lh / mm): 20material (Mtr): wolfraam carbide met 9% kobaltlength (L / mm): 65connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6 Direct leverbaar€36.02
57410120601004
RB.A1206		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): kruisvertandingdiameter head (Dh / mm): 12diameter head (Dh / inch): 15/32diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 63/64length head (Lh / mm): 25material (Mtr): wolfraam carbide met 9% kobaltlength (L / mm): 70connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6 Direct leverbaar€58.71
57410160601004
RB.A1606		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): kruisvertandingdiameter head (Dh / mm): 16diameter head (Dh / inch): 5/8diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 63/64length head (Lh / mm): 25material (Mtr): wolfraam carbide met 9% kobaltlength (L / mm): 70connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6 Direct leverbaar€99.67
57510100600004
RBDL.A1006		length shaft (Ls / inch): 5-45/64length shaft (Ls / mm): 145teeth type (Tt): kruisvertandingdiameter head (Dh / mm): 10diameter head (Dh / inch): 25/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 25/32length head (Lh / mm): 20material (Mtr): length (L / mm): 165connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm): Direct leverbaar€43.18
57510120600004
RBDL.A1206		length shaft (Ls / inch): 5-45/64length shaft (Ls / mm): 145teeth type (Tt): kruisvertandingdiameter head (Dh / mm): 12diameter head (Dh / inch): 15/32diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 63/64length head (Lh / mm): 25material (Mtr): length (L / mm): 170connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm): Direct leverbaar€66.69
57610080601004
RBD.A0806		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): diamond vertandingdiameter head (Dh / mm): 8diameter head (Dh / inch): 5/16diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 25/32length head (Lh / mm): 20material (Mtr): wolfraam carbide met 9% kobaltlength (L / mm): 65connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6 Direct leverbaar€27.77
57610100601004
RBD.A1006		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): diamond vertandingdiameter head (Dh / mm): 10diameter head (Dh / inch): 25/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 25/32length head (Lh / mm): 20material (Mtr): wolfraam carbide met 9% kobaltlength (L / mm): 65connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6 Direct leverbaar€40.11
57610120601004
RBD.A1206		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): diamond vertandingdiameter head (Dh / mm): 12diameter head (Dh / inch): 15/32diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 63/64length head (Lh / mm): 25material (Mtr): wolfraam carbide met 9% kobaltlength (L / mm): 70connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6 Direct leverbaar€63.62
57610160601004
RBD.A1606		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): diamond vertandingdiameter head (Dh / mm): 16diameter head (Dh / inch): 5/8diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 63/64length head (Lh / mm): 25material (Mtr): wolfraam carbide met 9% kobaltlength (L / mm): 70connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6 Direct leverbaar€106.22
57810060600004
RBA.A0606		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): Alu vertandingdiameter head (Dh / mm): 6diameter head (Dh / inch): 15/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 5/8length head (Lh / mm): 16material (Mtr): length (L / mm): 61connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm): Direct leverbaar€25.40
57810100600004
RBA.A1006		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): Alu vertandingdiameter head (Dh / mm): 10diameter head (Dh / inch): 25/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 25/32length head (Lh / mm): 20material (Mtr): length (L / mm): 65connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm): Direct leverbaar€46.25
57810120600004
RBA.A1206		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): Alu vertandingdiameter head (Dh / mm): 12diameter head (Dh / inch): 15/32diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 63/64length head (Lh / mm): 25material (Mtr): length (L / mm): 70connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm): Direct leverbaar€70.99
57810160600004
RBA.A1606		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): Alu vertandingdiameter head (Dh / mm): 16diameter head (Dh / inch): 5/8diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 63/64length head (Lh / mm): 25material (Mtr): length (L / mm): 70connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm): Direct leverbaar€116.05
