Magnetic drilling machine, 50 mm, 220 V.

Magnetic drilling machine, annular cutters max. dia 50 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction bidirectional.

Order codeECO.50-T
EAN code8718375390115
Price
€1,449.00 excl. VAT
€1,753.29 incl. VAT
Stock Directly available
Order

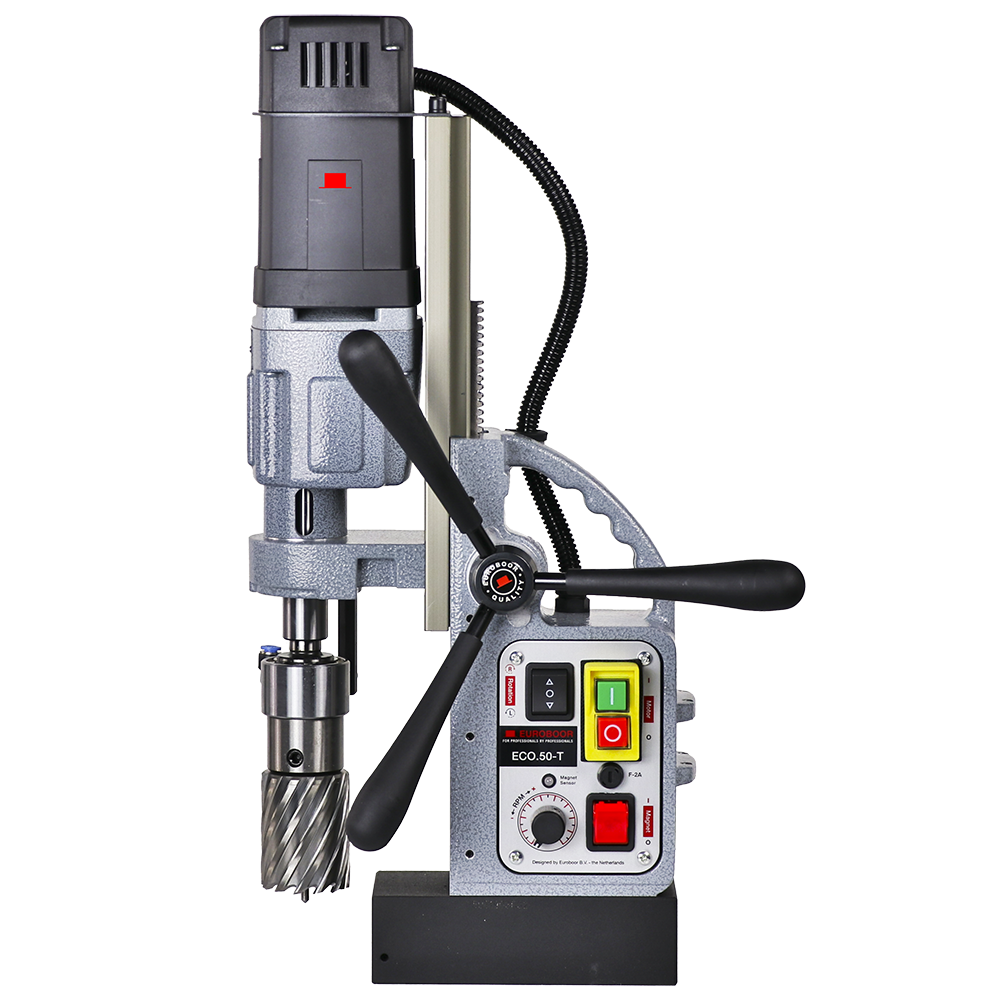

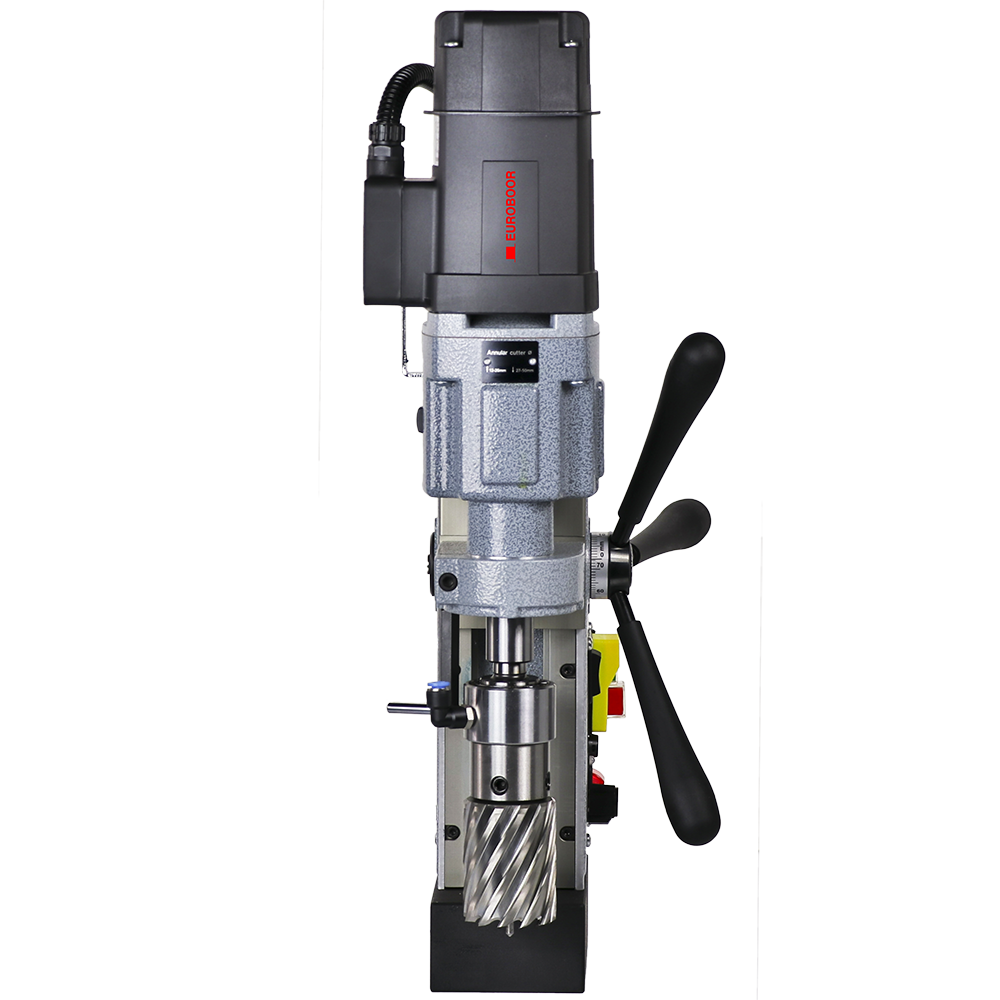

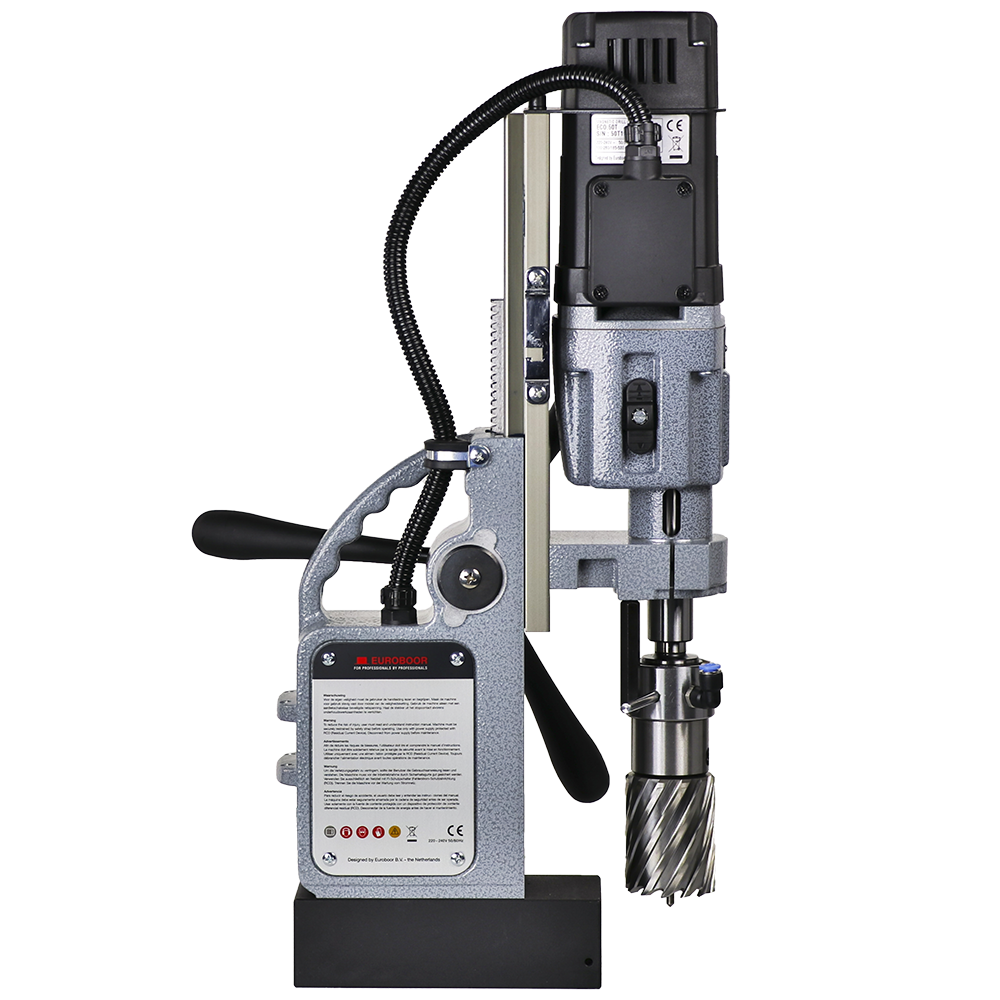

The Euroboor ECO.50-T is a powerful magnetic drilling machine, designed for fast and efficient drilling in various types of steel. Thanks to its mechanical 2-speed gearbox, stepless speed adjustment, and left/right rotation, this machine is suitable not only for annular cutting but also for twist drilling, countersinking and tapping.

The ECO.50-T features an interchangeable MK2 holder (Morse Taper) and an integrated cooling and lubrication system. It includes multiple safety features such as overload protection (torque control), thermal protection and a magnetic force indicator (SensorTec).

Thanks to the 2-way magnet (TempTec), the machine adheres even at half magnetic force, saving energy and preventing overheating. Full magnetic force is only activated during drilling for maximum safety. The ECO.50-T also includes Smart Restart: when the machine overloads or stalls, it will automatically restart when the feed handle is reversed, without needing to manually restart the machine.

This magnetic drilling machine is suitable for horizontal, vertical, and overhead use. The magnet switch with LED indicator clearly shows when there is sufficient adhesion for safe operation.


Contact us

Key Characteristics
Right/left rotating functionality
Electronic speed adjustment
Two-speed gearbox
Morse Taper 2 spindle with integrated tool cooling and lubrication
High-precision height adjustment for:
Low maintenance
Minimal wear correction
Integrated slide for:
High accuracy
Enlarged lifecycle
Minimal vibration
Overheat protection
Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
Reduced risk of damaging machine, tools and workpiece and hurting operator
Suitable for use in areas and workplaces where power supply is of less quality
Reduced risk of armature damage
Reduced risk of control unit(s) damage
Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement

Accessories

Properties

ECO.50-T
Overload protection
ECO.50-T
2 way magnet (TempTec)
ECO.50-T
Overheat protection
ECO.50-T
Magnet LED indicator
ECO.50-T
Tapping
ECO.50-T
Adjustable speed
ECO.50-T
R/L rotation
ECO.50-T
Smart Restart
Connection
minimum diameter threading (inch)1/8
minimum diameter threading (millimeter)M3
maximum diameter threading (inch)13/16
maximum diameter threading (millimeter)M20
minimum diameter annular cutters (inch)1/2
minimum diameter annular cutters (millimeter)12
maximum diameter annular cutters (inch)2
maximum diameter annular cutters (millimeter)50
minimum diameter countersinking (inch)3/8
minimum diameter countersinking (millimeter)10
maximum diameter countersinking (inch)2 3/16
maximum diameter countersinking (millimeter)55
minimum diameter twist drills (inch)1/16
minimum diameter twist drills (millimeter)1
maximum diameter twist drills (inch)15/16
maximum diameter twist drills (millimeter)23
connection 1 modelinside
connection 1 size (inch)3/4
connection 1 size (millimeter)19.05
connection 2 morse taper / drill chuck classMT2
connection 1 typeWeldon
connection 2 modeloutside
connection 2 typemorse taper
Dimensions
stroke (inch)6 11/16
stroke (millimeter)170
magnet length (inch)6 11/16
magnet length (millimeter)170
magnet width (inch)3 3/8
magnet width (millimeter)85
magnet height (inch)1 7/8
magnet height (millimeter)48
minimum height (inch)15 3/16
minimum height (millimeter)385
maximum height (inch)21 1/4
maximum height (millimeter)540
length (inch)12 5/8
width (inch)8 1/4
length (millimeter)320
width (millimeter)210
height (inch)21 1/4
height (millimeter)540
Properties
rotation directionbidirectional
type of gear box lubricationGrease
magnetic force (kilogram)1850
magnetic force (pound)4080
electric rotation speed adjustmentyes
nett weight (pound)29.8
nett weight (kilogram)13.5
system of measurementmm (metric)
applicationDrilling, Countersinking, Tapping
Performance
no-load minimum rotation speed gear 1 (rotations per minute)100
no-load maximum rotation speed gear 1 (rotations per minute)280
load rotation speed gear 1 (rotations per minute)250
no-load minimum rotation speed gear 2 (rotations per minute)185
no-load maximum rotation speed gear 2 (rotations per minute)530
load rotation speed gear 2 (rotations per minute)460
Supply
motor power (Ampère)11.4
motor power (Watt)1250
total power (Ampère)12.5
total power (Watt)1375
power supply frequency (Hertz)50 - 60
power supply currentAC
power supply connectionplug according CEE 7/7
power supply sourcemains supply
power supply typeelectric
power supply tension (Volt)220 - 240

Fact sheet

Package contents

  • 1x case
  • 1x magnetic drilling machine ECO.50-T
  • 3x (Capstan Hub) handles
  • 1x lubrication/cooling system
  • 1x spindle holder MT 2 - 19,05 (3/4"), including cooling/lubrication ring (IMC.20)
  • 1x drift key
  • 1x tap holder (Weldon, DIN 376) M10
  • 1x tap holder (Weldon, DIN 376) M12
  • 1x tap holder (Weldon, DIN 376) M14
  • 1x tap holder (Weldon, DIN 376) M16
  • 1x Allen key 2.5 mm (3/32")
  • 1x Allen key 3 mm (1/8")
  • 1x Allen key 4 mm (5/32")
  • 1x Allen key 5 mm (13/64")
  • 1x protection guard
  • 1x safety chain
  • 1x ear protection
  • 1x safety goggles
  • 1x safety gloves
  • 1x user manual

Manual

MOTORBODYCASE
NoSearch codeDescriptionQty
2050.0106Screw 4.8 x 45
81821004803004
4
3050.0111End cover
81231300003004
1
4032T.0019XAScrew M3 x 8
81821003006004
2
5050T.0340X-1ZTest-circuit-board
81411000022004
1
6050.1009CK-50Housing not incl. Carbon brush set
81231200033004
1
7050.0147Carbon brush set 220V
81261320002004
1
8050T.0342Black six-core wire 26AWG-20
81432500022004
1
9050T.0002-4Control unit A 220V
81411020048004
1
10050.0587Screw 5 x 30
81821004004004
4
11050T.0276-1Field 220V ECO.50T 1501 ->
81210020035004
1
12020.0024Screw M4 x 60
82821004002004
2
13050.0261Baffle
81231700003004
1
14050T.0181Armature 220V
81220020006004
1
15032.0166Circlip 472/28/1.2
81823828002004
1
16032.0171Bearing 6001ZZ 12 x 28 x 8
81331000005004
1
17050.0236Inner gear plate
81231000006004
1
18032.0176Circlip 471/10/1
81823810001004
1
19050.0252Gear assembly
81341500020004
1
20040.0161Needle bearing HK0810
81331000013004
3
21050.0207Gasket middle
81811500004004
1
22050.0211Plate for gear casing
81251000022004
1
23050.0171Gear 34/40Z
81341500002004
1
24050.0231Axle 13T
81321400003004
1
25100.4496Key 5 x 5 x 28
81321800029004
1
26032.0126Bearing 608ZZ 8 x 22 x 7
81331000004004
1
27050.0426Circlip 471/15/1
81823815001004
1
28050.0177Spindle gear
81342000003004
1
29050.0182Adapter ring
81823600005004
1
30050.0221Bearing 6203DDU
81331000016004
1
31050.0291Clutch shaft
81321000002004
1
32040.0286Gear switch
81321200003004
1
33032.0211Casing pin 4 x 12
81825004001004
1
34050.0208Gear box incl. plate 220V
81251120001004
1
35032.0106Screw M5 x 50
81821005018004
4
36050.0466Bearing 6904RS
81331000017004
1
37050.0431Key for spindle drive 5 x 5 x 10 mm
81321800003004
1
38050.0191Spindle drive shaft MT2
81311000006004
1
MOTORBODYCASE
NoSearch codeDescriptionQty
1050T.0101/2Motor 220V ECO.50-T 2015-01 ->
81611020028004
1
40020.0106AScrew M6 x 20
81821000047004
6
41020.0111Washer M6 DIN7980
81823000001004
6
42040.0041Motor fixing plate 110 mm
81231600004004
1
43KSP.M/3Tank holder
81681300012004
1
44KSP.MSScrew M5 x 10
81821005029004
3
45050.0141Motor holder
81661600002004
1
46020.0146BScrew M6 x 35
81821006017004
1
47050.0011Slide
81661000005004
1
48032.0016Rack
81231500002004
1
49020.0086/XRail set Aluminium (L/R) L-profile
81661300024004
1
50020.0086/XRail set Aluminium (L/R) L-profile
81661300024004
1
51020.0229Screw M4 x 20
81821004023004
6
52020.0101Panel screw BKVZ M4 x 8
81821004001004
4
53055.0002Rear panel 220V
81831320009004
1
54050T.1018Speed control unit 220V
81411020050004
1
55020.0298Motor cable clamp
81433000023004
1
56020.0081Screw BKVZ M6 x 16
81821006001004
1
57020.0077HEnd plate black
81231600016004
1
58020.0056/XFrame aluminium rail (L)
81631000028004
1
59020.0231Screw M5 x 6
81821005026004
4
60020.0061/XBCapstan hub assembly black
81651000014004
1
61020.0315XArm for capstan
81651300022004
3
62050T.B060Motor cable complete
81431200020004
1
62A020.0041Coupling nut PG9 (motor cable)
81824609002004
2
62B050.0586Cable housing
81433000002004
1
62C050T.0341-01Black six-core wire
81432500020004
1
63020.0182Grounding screw/washer/nut
81829000002004
1
64EU030.B125Main cable set 220V EU
81431520002004
1
64AU020.0036/AUMain cable 220V AU
81431520005004
1
64UK020.0036/UKMain cable 220V UK
81431520004004
1
65020.0031Coupling nut PG11 (main cable)
81824611001004
1
66020.0037Cable clamp complete
81433000008004
1
67032T.0009Spacer
81826500004004
1
68050T.B040ZPanel plate assembly 220V
81411220018004
1
68APP.50TEU/4Front panel EB ECO.50T YSW
81831000080004
1
68B030E.0091/YMotor switch 220V (5-pin) yellow
81641120003004
1
68C100.0152Switch L / R (push) 1800W
81641300003004
1
68D020.0011/1Magnet switch
81641400008004
1
68E020.0016Fuse holder
81422300001004
1
68F020.0016BFuse
81422300008004
1
68G020.0206LED indicator set
81422800002004
1
68H050T.1009Potentiometer (turn) knob
81421800010004
1
69020.0183Screw M4 x 20
81821004025004
4
70020.0146Screw M6 x 25
81821000048004
4
71020.0111Washer M6 DIN7980
81823000001004
4
72020.0112Washer M6
81823006003004
4
73050.1003Magnet 220V
81621020017004
1
74100.1008Sensor
81422000006004
1
MOTORBODYCASE
NoSearch codeDescriptionQty
200CAS.50TCase for ECO.50-T (black with inlay)
81843500011004
1
201KSP.Q2Coolant tank Quick Connect 2015
81681300010004
1
202KSP.PPin and knob for cooling tank
81682400005004
1
203MEBGLV.MEuroboor working gloves size M
91411000020004
1
203LEBGLV.LEuroboor working gloves size L
91411000021004
1
203XLEBGLV.XLEuroboor working gloves size XL
91411000022004
1
204SAF.400Safety chain (1 mtr) with lock
81841300006004
1
205SAF.100Safety goggles
81841500002004
1
206SAF.200Ear plugs
81841500001004
1
207050.0141AStop pin
81825000028004
1
208IMB.US2.5Allen key 2.5 mm
81842600006004
1
209IMB.US3Allen key 3.0 mm
81842600007004
1
210IMB.US4Allen key 4.0 mm
81842600004004
1
211IMB.US5Allen key 5.0 mm
81842600005004
1
212DRIFT2Drift MT2
81843000019004
1
213SAF.MDMBSafety guard for ECO.50
81841000019004
1
214020.0223Screw M5 x 10
81821000127004
2
215IMC.20Arbor MT2 - 19.05 (3/4") Weldon
31125232001004
1
216TCM.10D376Tap holder DIN376 M10 Ø7
52520701000004
1
217TCM.12D376Tap holder DIN376 12 Ø9
52520901200004
1
218TCM.14D376Tap holder DIN376 M14 Ø11
52521101400004
1
219TCM.16D376Tap holder DIN376 M16 Ø12
52521201600004
1
