Magnetic drilling machine, 36 mm, 220 V.

Magnetic drilling machine, annular cutters max. dia 36 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz.

Order codeECO.36+/T
EAN code8720365557125
Price
€1,195.00 excl. VAT
€1,445.95 incl. VAT
Stock Temporarily unavailable
Keep me informed

The Euroboor ECO.36+/T magnetic drilling machine is - with only 165 mm (6 1/2″) in height - the lowest core drilling machine on the market. The big advantage of the ECO.36+/T is that you can use the same machine for both drilling the hole and tapping the thread. Due to its compact size, this machine is perfect for drilling in tight spaces that conventional machines cannot reach, such as: H-beams, steel structures, plates, profiles, etc.

The portable ECO.36+/T is equipped with innovative electronics that offer even more safety. These significantly reduce the risk of damage to the machine, tool and workpiece. In addition, the Gyro-Tec technology protects the user because the machine automatically switches off in the event of excessive vibration or sudden movement of the machine.

Don't let limited spaces stop you. With the ECO.36+/T you can drill with ease and confidence, no matter how tight the space is.


Contact us

Features of this machine
Variable speed
Tap function for fast and efficient thread tapping
Integrated motor cable, handle and safety belt
Left and right mountable feed handle
Integrated burr cooling and lubrication
Sliding and removable protective cover
Oil/lubricant bottle with magnet system

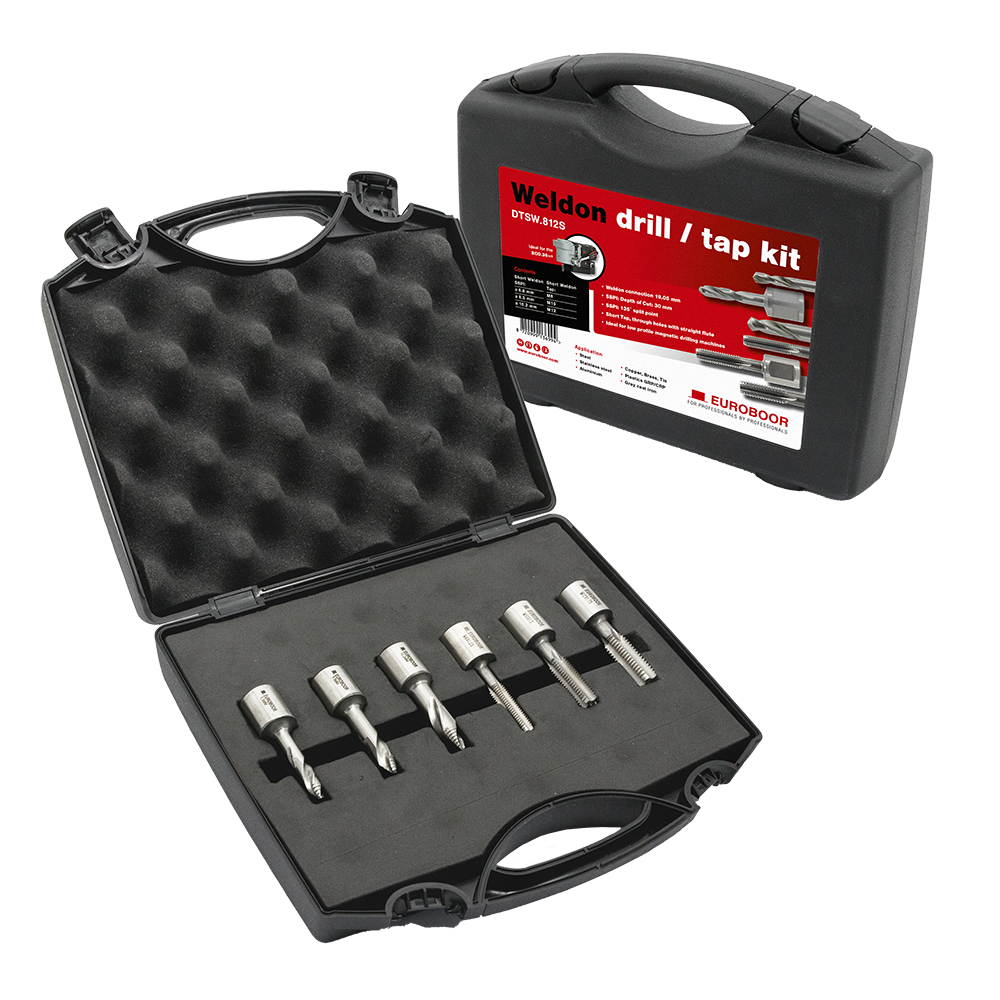

Accessories

Properties

ECO.36+/T
Automatic shut off
ECO.36+/T
Carbon brush wear indicator
ECO.36+/T
Gyro-Tec
ECO.36+/T
Overload protection
ECO.36+/T
Power fluctuation protection
ECO.36+/T
2 way magnet (TempTec)
ECO.36+/T
Overheat protection
ECO.36+/T
Integrated motor cable
ECO.36+/T
Power surge protection
ECO.36+/T
Tapping
ECO.36+/T
Adjustable speed
ECO.36+/T
R/L rotation
ECO.36+/T
In corner drilling
Connection
minimum diameter threading (inch)1/8
minimum diameter threading (millimeter)M3
maximum diameter threading (inch)3/8
maximum diameter threading (millimeter)M12
minimum diameter annular cutters (inch)7/16
minimum diameter annular cutters (millimeter)12
maximum diameter annular cutters (inch)1 7/16
maximum diameter annular cutters (millimeter)36
minimum diameter countersinking (inch)3/8
minimum diameter countersinking (millimeter)10
maximum diameter countersinking (inch)1 9/16
maximum diameter countersinking (millimeter)40
minimum diameter twist drills (inch)1/16
minimum diameter twist drills (millimeter)1
maximum diameter twist drills (inch)9/16
maximum diameter twist drills (millimeter)14
connection 1 modelinside
connection 1 size (inch)3/4
connection 1 size (millimeter)19.05
connection 1 typeWeldon
Dimensions
stroke (inch)1 9/16
stroke (millimeter)40
magnet length (inch)6 5/16
magnet length (millimeter)160
magnet width (inch)3 1/8
magnet width (millimeter)80
magnet height (inch)1 7/16
magnet height (millimeter)37
minimum height (inch)6 1/2
minimum height (millimeter)165
maximum height (inch)6 1/2
maximum height (millimeter)165
length (inch)12 3/16
width (inch)5 5/16
length (millimeter)310
width (millimeter)135
height (inch)6 1/2
height (millimeter)165
Properties
type of gear box lubricationGrease
magnetic force (kilogram)1200
magnetic force (pound)2645
electric rotation speed adjustmentyes
nett weight (pound)22.7
nett weight (kilogram)10.3
applicationDrilling, Countersinking, Tapping
Performance
no-load minimum rotation speed gear 1 (rotations per minute)120
no-load maximum rotation speed gear 1 (rotations per minute)500
no-load rotation speed gear 1 (rotations per minute)500
load minimum rotation speed gear 1 (rotations per minute)70
load maximum rotation speed gear 1 (rotations per minute)400
load rotation speed gear 1 (rotations per minute)400
rotation speed gear 1 (rotations per minute)500
corner drilling at 0 degrees, center to edge (inch)2
corner drilling at 90 degrees, center to edge (inch)2 1/16
corner drilling at 90 degrees, center to edge (millimeter)53
corner drilling at 45 degrees, center to edge (inch)2 3/8
corner drilling at 45 degrees, center to edge (millimeter)60
corner drilling at 0 degrees, center to edge (millimeter)50
Supply
motor power (Watt)1050
total power (Watt)1100
power supply frequency (Hertz)50 - 60
power supply currentAC
power supply connectionplug according CEE 7/7
power supply sourcemains supply
power supply typeelectric
power supply tension (Volt)220 - 240

Fact sheet

Package contents

  • 1x case
  • 1x magnetic drilling machine ECO.36+/T
  • 1x quick switch feed handle
  • 1x quick switch extension rod 150mm (5 7/8")
  • 1x lubrication/cooling system
  • 1x Allen key 3 mm (1/8")
  • 1x protection guard
  • 1x safety belt
  • 1x ear protection
  • 1x safety goggles
  • 1x safety gloves
  • 1x user manual

Manual

MOTORBODYCASE
NoSearch codeDescriptionQty
2036.0039Torx Screw M4.8 x 55
81821804801004		4
3050.0062Light guide pin LG6040-4.5
81825000010004		1
4036.0111TEnd cover
81231300022004		1
5032.0116Screw M4 x 16
81821004201004		2
6036.0333ASpeed control unit ECO.36+/T 110V
81411010022004		1
7036.1012THousing
81231200041004		1
8032.0136Screw for spring
81821000003004		2
9032.0141-1Spring
81331300006004		2
10020.0101Panel screw BKVZ M4 x 8
81821004001004		2
11Carbon.30+Carbon brush set 220V
81261320007004		1
12036.0047TField 220V
81210020018004		1
13032.0156Screw BK 4 x 55
81821004003004		2
14032.0161Baffle
81231700002004		1
15036.1017TArmature 220V
81220020022004		1
16032.0176Circlip 471/10/1
81823810001004		1
17032.0171Bearing 6001ZZ 12 x 28 x 8
81331000005004		1
18036.0236Inner gear plate
81231000023004		1
19032.0166Circlip 472/28/1.2
81823828002004		1
20032.0125Gasket
81811500007004		1
21036.1020Gear assembly
81341500015004		3
22036.1020TConnect the shaft set
81311200031004		1
23020.0102Hex bolt M4 x 12
81822104001004		4
24036.0024TRack ring
81823500014004		1
25036.0035TRing gear
81823500013004		1
26036.0012Screw M5 x 16
81821005031004		4
27036.0002Gear plate
81231000018004		1
28036.0022Bearing 61807 DDU
81331000151004		1
29036.0138Gasket
81811500009004		1
30036.1021Gear/shaft assembly
81341500016004		1
31036.0023Bearing 61808 DDU
81331000152004		1
32036.0044Torx screw M5 x 45
81821805001004		4
33050.0025Pin 4 x 10
81825000029004		1
34036.0001Gear box
81251100013004		1
35036.0017Tube
81825500041004		1
36036.2002TSpindle
81311300038004		1
37036.0011Adapter ring
81823600009004		1
MOTORBODYCASE
NoSearch codeDescriptionQty
40KSP.SCoolant connector Quick straight brass
81682400010004		1
41020.0058Screw M6 x 10
81821006018004		1
42036.0018Circlip Ø25
81823825001004		2
43036.0064Adapter ring
81823600018004		2
44036.0065Arm for capstan
81651300019004		1
45036.0026Spanner
81842400010004		1
46036.0152Handle
81631600018004		1
47036.0029Plastic screw posts
81821000138004		4
48036.0028Screw M5 x 10
81821005030004		4
49036.0036Screw M4 x 10
81821004031004		4
50036+.0015TPanel plate
81411220028004		1
51036+.0016TPanel plate
81831300001004		1
52036T+.B065ZPanel-plate set 220V
81411220044004		1
52A036.0006TSwitch panel
81641000012004		1
52B030E.0091/YMotor switch 220V (5-pin) yellow
81641120003004		1
52C036.0072Switch L / R
81641300007004		1
52D020.0011/1Magnet switch
81641400008004		1
53055.0022Screw M4 x 12
81821004024004		4
54036.0007Screw M4 x 8
81821004029004		1
55040.0286FWasher M4
81823004002004		1
56EU030.B125Main cable set 220V EU
81431520002004		1
56AU020.0036/AUMain cable 220V AU
81431520005004		1
56UK020.0036/UKMain cable 220V UK
81431520004004		1
56A036.0070Main-cable fixed seat
81433000038004		1
56B020.0416Screw M4 x 16
81821000046004		2
56C020.0412Screw M4 x 12
81821000045004		2
57020.0087Rivet for carbon brush
81661300005004		4
58036.0052Gasket f12x4mm
81811500016004		1
59036.0003TCover
81631500017004		1
60036.1009Potentiometer
81421800014004		1
61036.1008ZControl unit 110V / 220V
81411000005004		1
62020.0146Screw M6 x 25
81821000048004		2
63020.0106AScrew M6 x 20
81821000047004		2
64036.0040D-belt
81631600066004		1
65036.1025Magnet 220V
81621020006004		1
MOTORBODYCASE
NoSearch codeDescriptionQty
200CAS.36Case for ECO.36
81843500030004		1
201036.2019Coolant tank
81681300014004		1
202MEBGLV.MEuroboor working gloves size M
91411000020004		1
202LEBGLV.LEuroboor working gloves size L
91411000021004		1
202XLEBGLV.XLEuroboor working gloves size XL
91411000022004		1
203036.0033Safety belt
81841300012004		1
204SAF.100Safety goggles
81841500002004		1
205SAF.200Ear plugs
81841500001004		1
206IMB.US3Allen key 3.0 mm
81842600007004		1
207IMB.US4Allen key 4.0 mm
81842600004004		1
208036.0027Screw
81821000137004		2
209036.0111Safety guard
81841000031004		1
210020.01483/8” extesion bar
81843001000004		1
