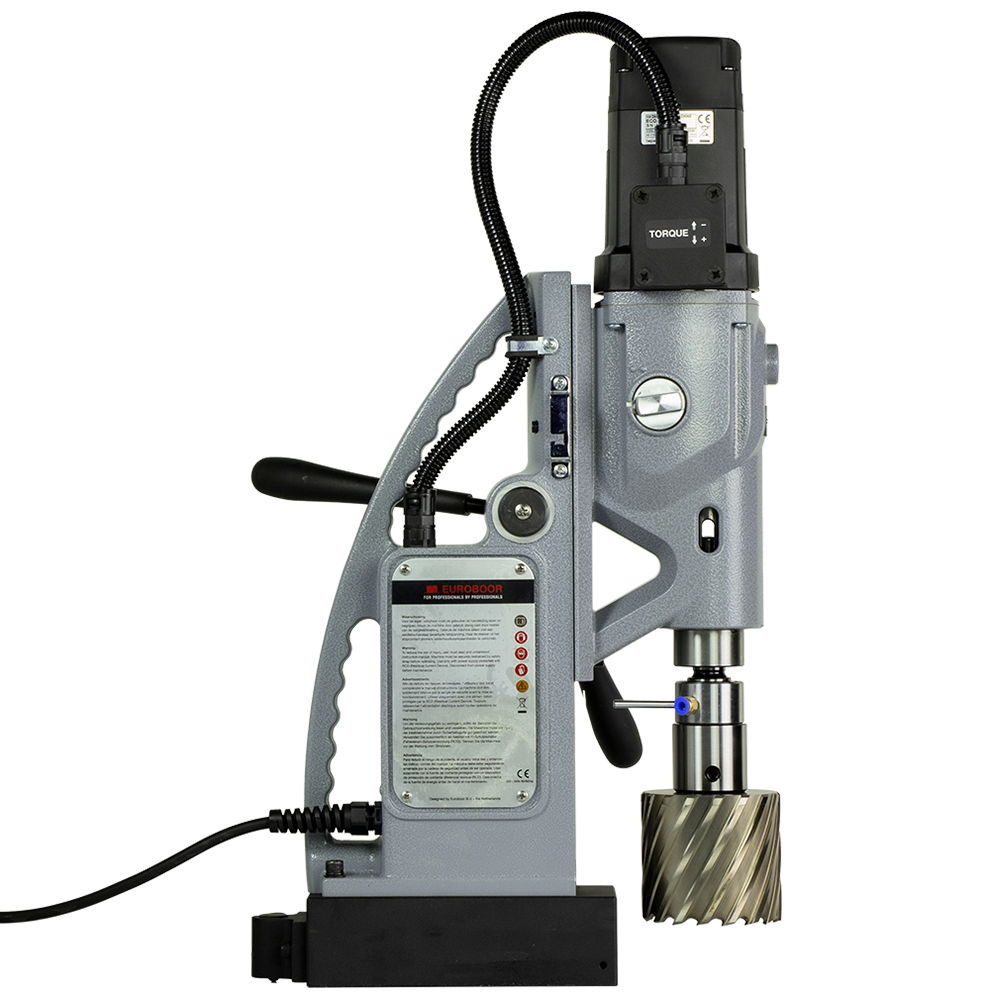

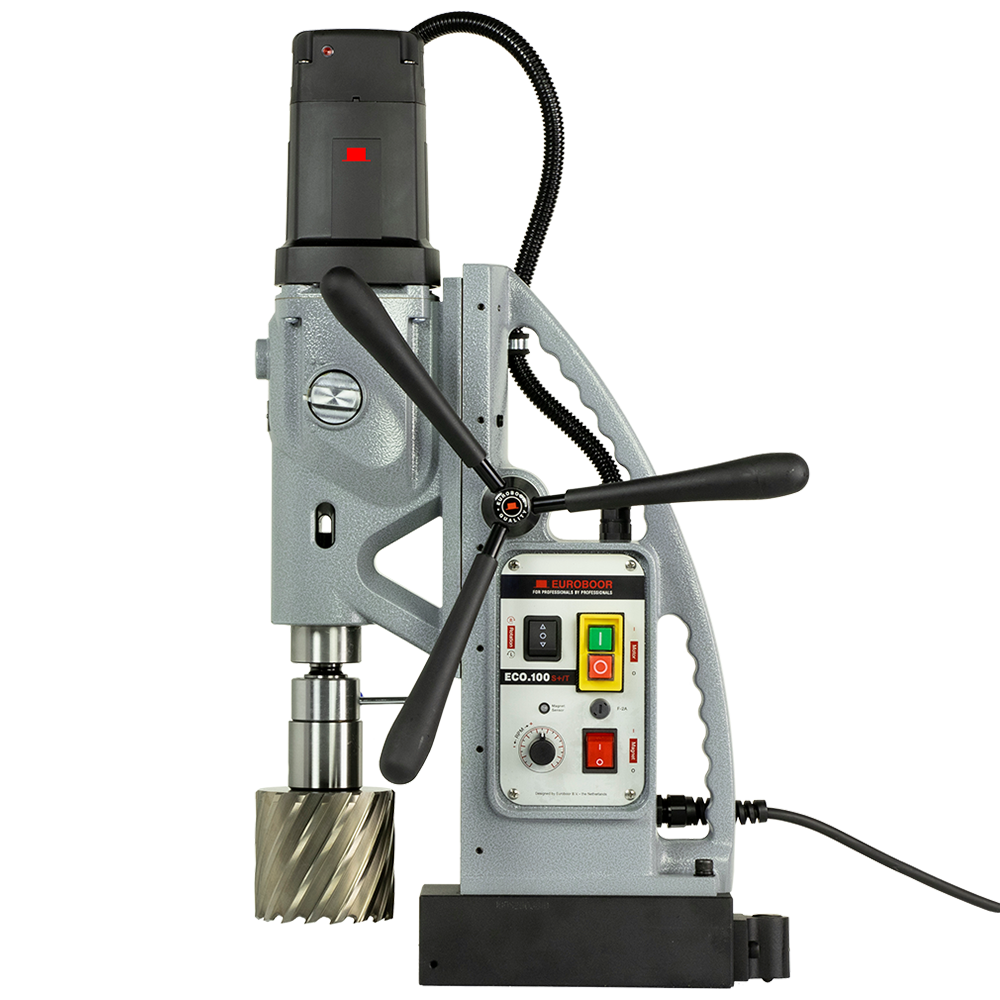

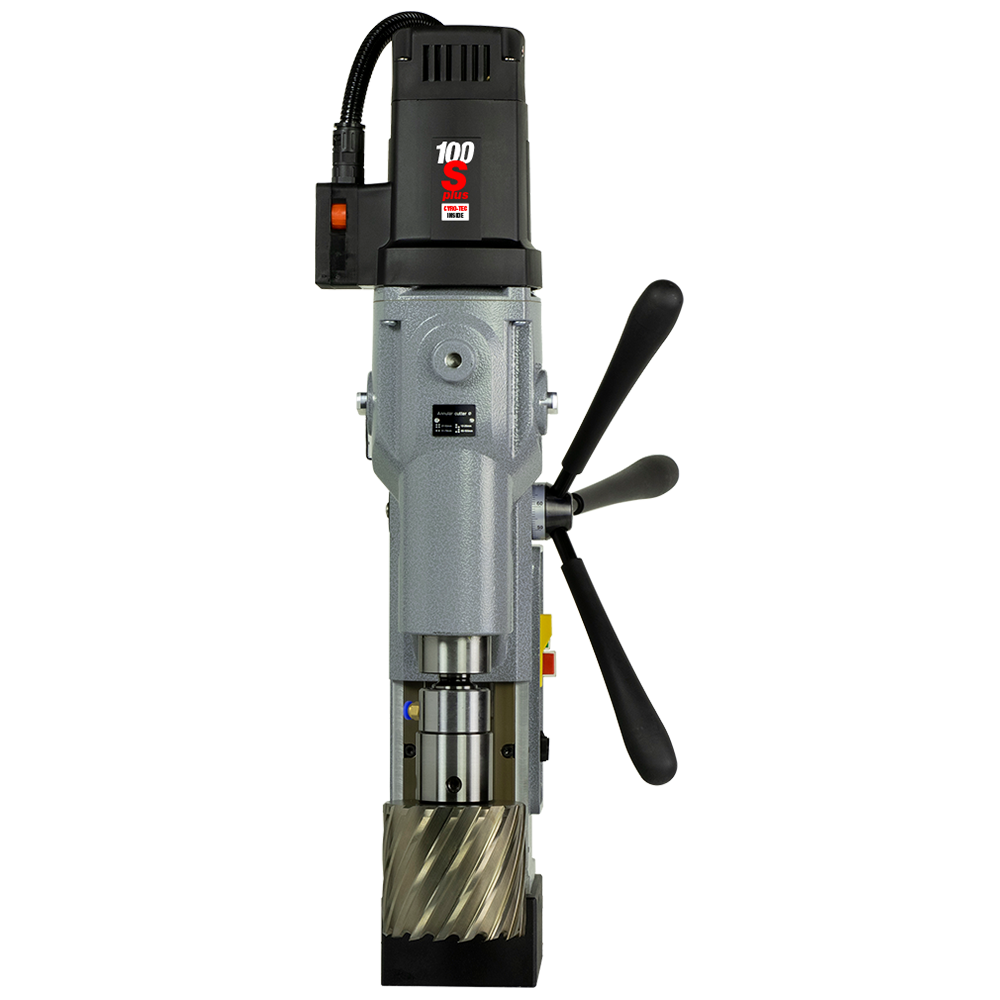

ECO.100S+/T
ECO.100S+/T
ECO.100S+/T
ECO.100S+/T
ECO.100S+/T
ECO.100S+/T
ECO.100S+/T
ECO.100S+/T
ECO.100S+/T
ECO.100S+/T
ECO.100S+/T
ECO.100S+/T

ECO.100S+/T

Magnetic drilling machine, 100 mm, 220 V.

Magnetic drilling machine, annular cutters max. dia 100 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction bidirectional.

Order codeECO.100S+/T
EAN code8720143712449
Price
€2,165.00 excl. VAT
€2,619.65 incl. VAT
Stock Directly available
Order

The Euroboor ECO.100S+/T magnetic core drilling machine cuts holes up to ø 100 mm and is particularly suitable for tapping. This magnetic core drilling machine has an extremely powerful 1,900 W motor with an oil lubricated four-speed gearbox and innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.


Contact us

Key Characteristics
Four-speed oil lubricated gearbox
Particularly suitable for tapping
Right/left rotating
Morse Taper 3 spindle with integrated tool cooling and lubrication
Electronic speed adjustment
Torque control on motor house
Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
Reduced risk of damaging machine, tools and workpiece and hurting operator
Suitable for use in areas and workplaces where power supply is of less quality
Reduced risk of armature damage
Reduced risk of control unit(s) damage
Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement

Accessories

Properties

ECO.100S+/T
Automatic shut off
ECO.100S+/T
Carbon brush wear indicator
ECO.100S+/T
Gyro-Tec
ECO.100S+/T
Overload protection
ECO.100S+/T
Power fluctuation protection
ECO.100S+/T
2 way magnet (TempTec)
ECO.100S+/T
Overheat protection
ECO.100S+/T
Magnet LED indicator
ECO.100S+/T
Power surge protection
ECO.100S+/T
Tapping
ECO.100S+/T
Adjustable speed
ECO.100S+/T
Oil lubricated gearbox
ECO.100S+/T
R/L rotation
ECO.100S+/T
Torque control
ECO.100S+/T
Smart Restart
Connection
minimum diameter threading (inch)1/8
minimum diameter threading (millimeter)M3
maximum diameter threading (inch)1 3/16
maximum diameter threading (millimeter)M30
minimum diameter annular cutters (inch)1/2
minimum diameter annular cutters (millimeter)12
maximum diameter annular cutters (inch)4
maximum diameter annular cutters (millimeter)100
minimum diameter countersinking (inch)3/8
minimum diameter countersinking (millimeter)10
maximum diameter countersinking (inch)1 3/16
maximum diameter countersinking (millimeter)105
minimum diameter twist drills (inch)1/16
minimum diameter twist drills (millimeter)1
maximum diameter twist drills (inch)1 1/4
maximum diameter twist drills (millimeter)32
connection 1 modelinside
connection 1 size (inch)1 1/4
connection 1 size (millimeter)31.75
connection 2 morse taper / drill chuck classMT3
connection 1 typeWeldon
connection 2 modeloutside
connection 2 typemorse taper
Dimensions
stroke (inch)10 1/4
stroke (millimeter)260
magnet length (inch)8 11/16
magnet length (millimeter)220
magnet width (inch)4 5/16
magnet width (millimeter)110
magnet height (inch)2 1/2
magnet height (millimeter)64
minimum height (inch)20 1/16
minimum height (millimeter)510
maximum height (inch)27 15/16
maximum height (millimeter)710
length (inch)14 3/8
width (inch)12 3/16
length (millimeter)365
width (millimeter)310
height (inch)28 1/8
height (millimeter)715
Properties
rotation directionbidirectional
type of gear box lubricationOil
magnetic force (kilogram)3000
magnetic force (pound)6615
electric rotation speed adjustmentyes
nett weight (pound)61.3
nett weight (kilogram)27.8
system of measurementmm (metric)
applicationDrilling, Countersinking, Tapping
Performance
no-load minimum rotation speed gear 1 (rotations per minute)42
no-load maximum rotation speed gear 1 (rotations per minute)110
no-load rotation speed gear 1 (rotations per minute)110
load maximum rotation speed gear 1 (rotations per minute)85
load rotation speed gear 1 (rotations per minute)85
rotation speed gear 1 (rotations per minute)110
no-load minimum rotation speed gear 2 (rotations per minute)65
no-load maximum rotation speed gear 2 (rotations per minute)190
no-load rotation speed gear 2 (rotations per minute)190
load minimum rotation speed gear 2 (rotations per minute)40
load maximum rotation speed gear 2 (rotations per minute)152
load rotation speed gear 2 (rotations per minute)152
no-load minimum rotation speed gear 3 (rotations per minute)140
no-load maximum rotation speed gear 3 (rotations per minute)400
no-load rotation speed gear 3 (rotations per minute)400
load minimum rotation speed gear 3 (rotations per minute)100
load maximum rotation speed gear 3 (rotations per minute)270
load rotation speed gear 3 (rotations per minute)270
no-load minimum rotation speed gear 4 (rotations per minute)220
no-load maximum rotation speed gear 4 (rotations per minute)620
no-load rotation speed gear 4 (rotations per minute)620
load minimum rotation speed gear 4 (rotations per minute)170
load maximum rotation speed gear 4 (rotations per minute)480
load rotation speed gear 4 (rotations per minute)480
Supply
motor power (Ampère)17.3
motor power (Watt)1900
total power (Ampère)18.6
total power (Watt)2050
power supply frequency (Hertz)50 - 60
power supply currentAC
power supply connectionplug according CEE 7/7
power supply sourcemains supply
power supply typeelectric
power supply tension (Volt)220 - 240
Other
rotation speed gear 2 (rotations per minute)190
rotation speed gear 3 (rotations per minute)400
rotation speed gear 4 (rotations per minute)620

Fact sheet

Package contents

  • 1x metal case
  • 1x magnetic drilling machine ECO.100S+/T
  • 3x (Capstan Hub) handles
  • 1x spindle holder MT3 - Weldon 31.75 mm (1 1/4") including cooling/lubrication ring (IMC.30/32-N)
  • 1x adapter Weldon 31.75 to 19.05 mm (1 1/4" to 3/4") (IBK.3219)
  • 1x drift key
  • 1x side handle
  • 1x lubrication/cooling system
  • 1x Allen key 2.5 mm (3/32")
  • 1x Allen key 3 mm (1/8")
  • 1x Allen key 4 mm (5/32")
  • 1x Allen key 5 mm (13/64")
  • 1x protection guard
  • 1x safety chain
  • 1x ear protection
  • 1x safety goggles
  • 1x safety gloves
  • 1x user manual

Manual

MOTORBODYCASE
NoSearch codeDescriptionQty
2050.0106Screw 4.8 x 45
81821004803004		4
3100.0322ZEnd cover
81231300019004		1
4P020.0278Led indicator red alarm 220V
81422820001004		1
5032.0116Screw M4 x 16
81821004201004		2
6100.4006Control unit top ECO.100 110V / 220V
81411030003004		1
7080.1010CK-100S+Housing not incl. Carbon brush set
81231200030004		1
8Carbon.100+Carbon brush set 220V
81261320010004		1
9100.4576Torque switch housing
81641500024004		1
10100.4574Wheel red
81424000005004		1
11130.0026Potentiometer
86821000016004		1
12100.0611Torque/speed switch cap
81641000005004		1
13100.0617Screw PKVZ 6 x 45
81821006009004		4
14100.1004-CK-1Field 220V
81210020011004		1
15100.0391Baffle
81231700004004		1
16100S.1011Armature 220V
81220020013004		1
17032.0166Circlip 472/28/1.2
81823828002004		1
18050.9070Bearing 6001V V
81331000137004		1
19100S.0064Bearing 15 x 23 x 3
81331000033004		1
20100S.0401XInner gear plate
81231000009004		1
21100S.0071O-ring 106 x 1.8
81811200017004		1
22100.0571Circlip 471 11 x 1
81823811001004		1
23100.0458Gasket
81811500001004		1
24100.0426Circlip 471 24 x 1.2
81823824001004		1
25100.4324Drive shaft gear 1.5 x 38T
81311000016004		1
26100.0441Adapter ring
81823600008004		6
27100.0446Bearing 6005
81331000027004		2
28040.0161Needle bearing HK0810
81331000013004		3
29100.4312Friction clutch complete assembly (7T)
81322000008004		1
30080.0506Bearing 6000
81331000021004		2
31100.4332Axle 2 12T+17T
81321400011004		1
32100.4496Key 5 x 5 x 28
81321800029004		1
33100.4491Double gear 1 25T+39T
81341000020004		1
34100.4320Double gear 2 36T+41T
81341200007004		1
35100.4334Axle 3 (13T)
81321400012004		1
36080.0526Key 6 x 6 x 40
81321800006004		1
37080.4486Washer 14 x 22 x 1
81823014002004		1
38080.0481Needle bearing
81331000020004		1
39020.0329Screw M4 x 16
81821004019004		2
40050.0082Screw holder
81826000029004		2
41100S.1006Clutch shaft
81321000011004		1
42100S.1007Clutch shaft
81321000012004		1
43100.0549Casing pin
81825000004004		1
44100S.1017Gear box
81251100012004		1
45050.0078Ring 41.5 x 36.5 x 1.5
81823541501004		2
46100S.1014Gear switch
81321200004004		2
47100S.0462XSlide
81661000032004		1
48020.0003Pin
81825000033004		2
49020.0106Screw M6 x 16
81821000002004		8
50020.0106EBolt M6 x 14
81822006008004		2
51020.0111Washer M6 DIN7980
81823000001004		12
52100S.0076Rack 1.5 x 58T
81231500014004		1
53020.0146Screw M6 x 25
81821000048004		1
54020.0146BScrew M6 x 35
81821006017004		1
55100S.0067Wool felt ring 45 x 58 x 5
81811204501004		1
56100S.0066Bearing NKX-45
81331000031004		1
57100S.0065Bearing 35 x 42 x 8
81331000034004		1
58080.0431Spindle key 6 x 6 x 20
81321800004004		1
59100.0901Spindle drive shaft
81311000011004		1
60100.0459Screw BK 5.5 x 45
81821005500004		4
MOTORBODYCASE
NoSearch codeDescriptionQty
1100S.1001Motor 220V ECO.100S+
81611020038004		1
70KSP.MSScrew M5 x 10
81821005029004		3
71020.0298Motor cable clamp
81433000023004		1
72KSP.M/3Tank holder
81681300012004		1
73100.0193AAluminium rail (L) 22 x 18.5 x 442.5
81661300033004		1
74100.0193BAluminium rail (R) 22 x 18.5 x 442.5
81661300035004		1
75100.0022Bolt M5 x 20
81822004006004		12
76020.0101Panel screw BKVZ M4 x 8
81821004001004		8
77080.0016BX.5ARear panel 220V
81831320010004		1
78100.1028Speed control unit 220V
81411020063004		1
79100.4002Control unit 2 ECO.100 220V 1501 ->
81411020031004		1
80020.0081Screw BKVZ M6 x 16
81821006001004		1
81020.0077HEnd plate black
81231600016004		1
82100S.1002Frame
81631000019004		1
83020.0516Screw M5 x 5
81821000118004		6
84100.0101HCapstan hub assembly black
81651000017004		1
85020.0314XArm for capstan
81651300016004		3
86100.4610Motor cable complete V6
81431200015004		1
86A020.0033Coupling nut PG11
81824611007004		2
86BCS100.0503ACable set
81431000018004		1
86CCS100.0341/2Cable set 1608 ->
81431000022004		1
86D020.0032Adapter PG9 - PG11
81824611008004		2
87020.0182Grounding screw/washer/nut
81829000002004		1
88EU030.B125Main cable set 220V EU
81431520002004		1
88AU020.0036/AUMain cable 220V AU
81431520005004		1
88UK020.0036/UKMain cable 220V UK
81431520004004		1
89020.0031Coupling nut PG11 (main cable)
81824611001004		1
90020.0037Cable clamp complete
81433000008004		1
91100S+/T.B040Front panel set 220V
81411220032004		1
91A100S.0008XFront panel ECO.100S+/T
81831000134004		1
91B030E.0091/YMotor switch 220V (5-pin) yellow
81641120003004		1
91C100.0152Switch L / R (push) 1800W
81641300003004		1
91D020.0011/1Magnet switch
81641400008004		1
91E020.0016BFuse
81422300008004		1
91F020.0016Fuse holder
81422300001004		1
91G020.0206LED indicator set
81422800002004		1
91H100.1009Potentiometer button set
81421800012004		1
92100.0018AFilter
81424000001004		1
93055.1041LGyroscope PCB set
81411500003004		1
94080.0015DPlastic cover
81631500019004		1
95080.0015CScrew M16 x 33
81821000043004		1
96B60.0063Inner hex bolt
82822100014004		2
97080.0015AXMagnet spring ball
81824000052004		1
98100.0006Screw SS M8 x 25
81821008001004		4
99100.0031Washer M8
81823008001004		4
100020.0305Washer M8
81823008003004		4
101100.1022Magnet 220V
81621010024004		1
102100.1008Sensor
81422000006004		1
MOTORBODYCASE
NoSearch codeDescriptionQty
200100S.0203SCase
81843500047004		1
201100S.2019Coolant tank
81681300009004		1
202MEBGLV.MEuroboor working gloves size M
91411000020004		1
202LEBGLV.LEuroboor working gloves size L
91411000021004		1
202XLEBGLV.XLEuroboor working gloves size XL
91411000022004		1
203SAF.400Safety chain (1 mtr) with lock
81841300006004		1
204SAF.100Safety goggles
81841500002004		1
205SAF.200Ear plugs
81841500001004		1
206KSP.PPin and knob for cooling tank
81682400005004		1
207IMB.US2.5Allen key 2.5 mm
81842600006004		1
208IMB.US4Allen key 4.0 mm
81842600004004		1
209IMB.US5Allen key 5.0 mm
81842600005004		1
210IMB.US6Allen key 6.0 mm
81842600008004		1
211100S.0002Side handle M12
81631600004004		1
212DRIFT3Drift MT3
81843000016004		1
213080.2009Spindle MT3 31.75 mm Weldon (1 1/4")
81311400004004		1
214SAF.MDMSafety guard for ECO.100/4
81841000017004		1
215020.0223Screw M5 x 10
81821000127004		2
216IBK.3219Reducing ring Weldon 31.75 - 19.05 mm
31107370001004		1
newsletter

Sign up for news, insights, and exclusive offers!
