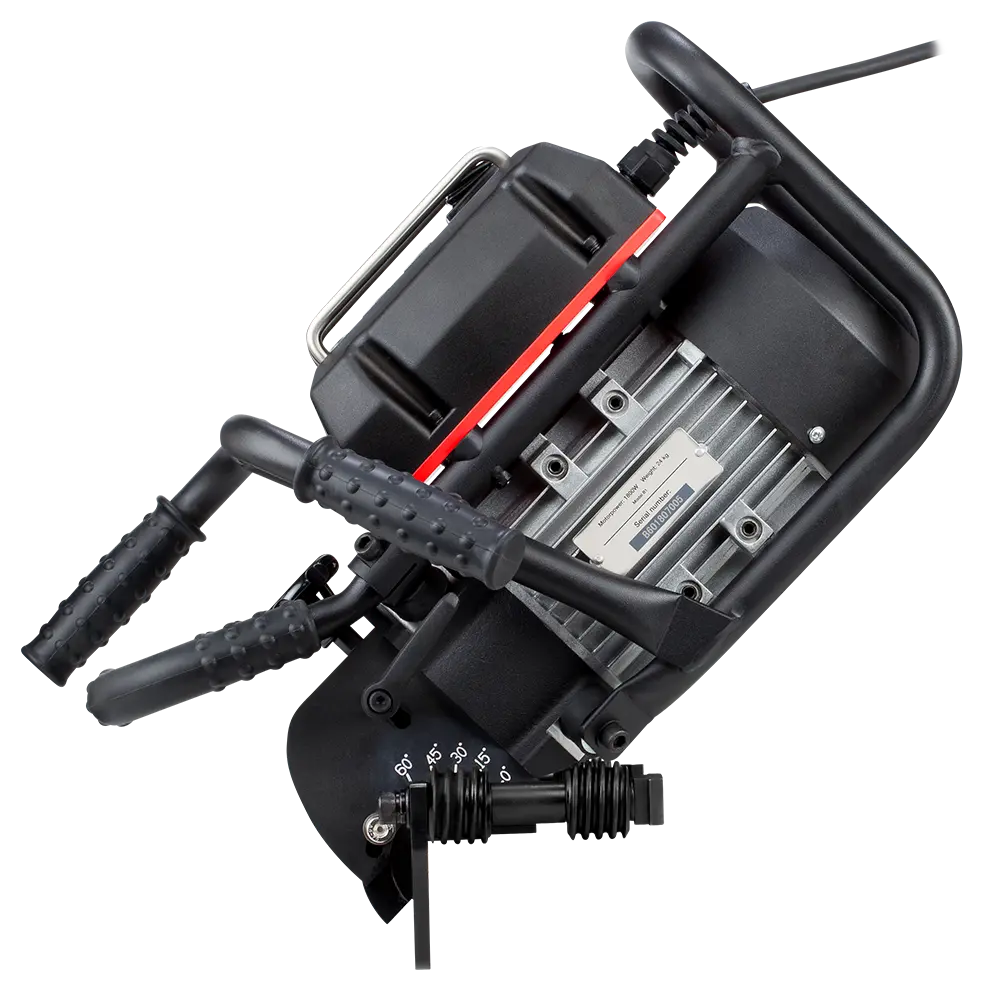

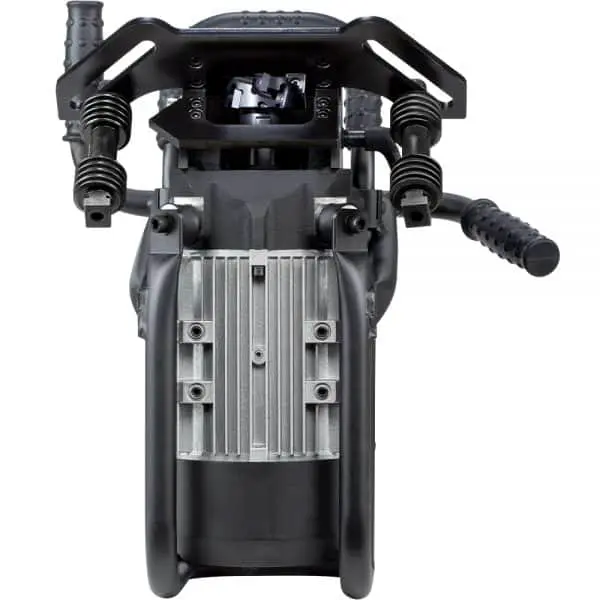

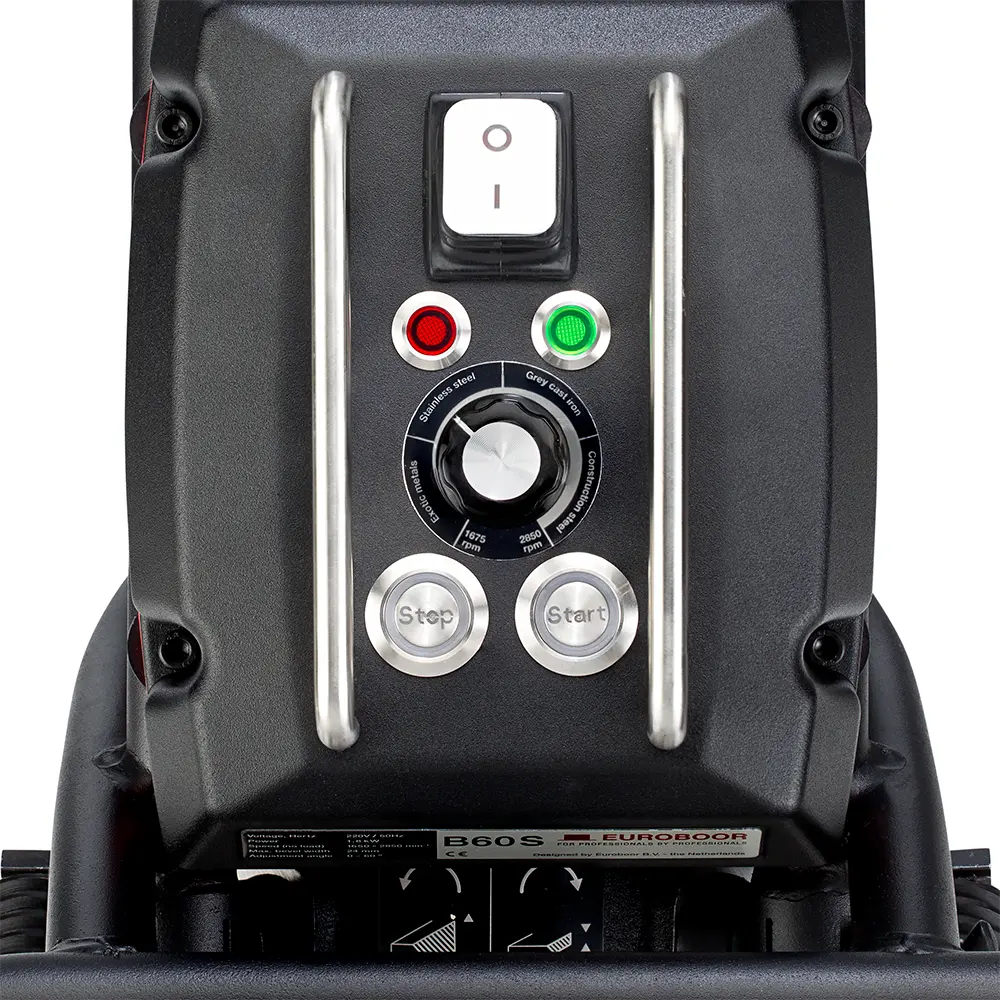

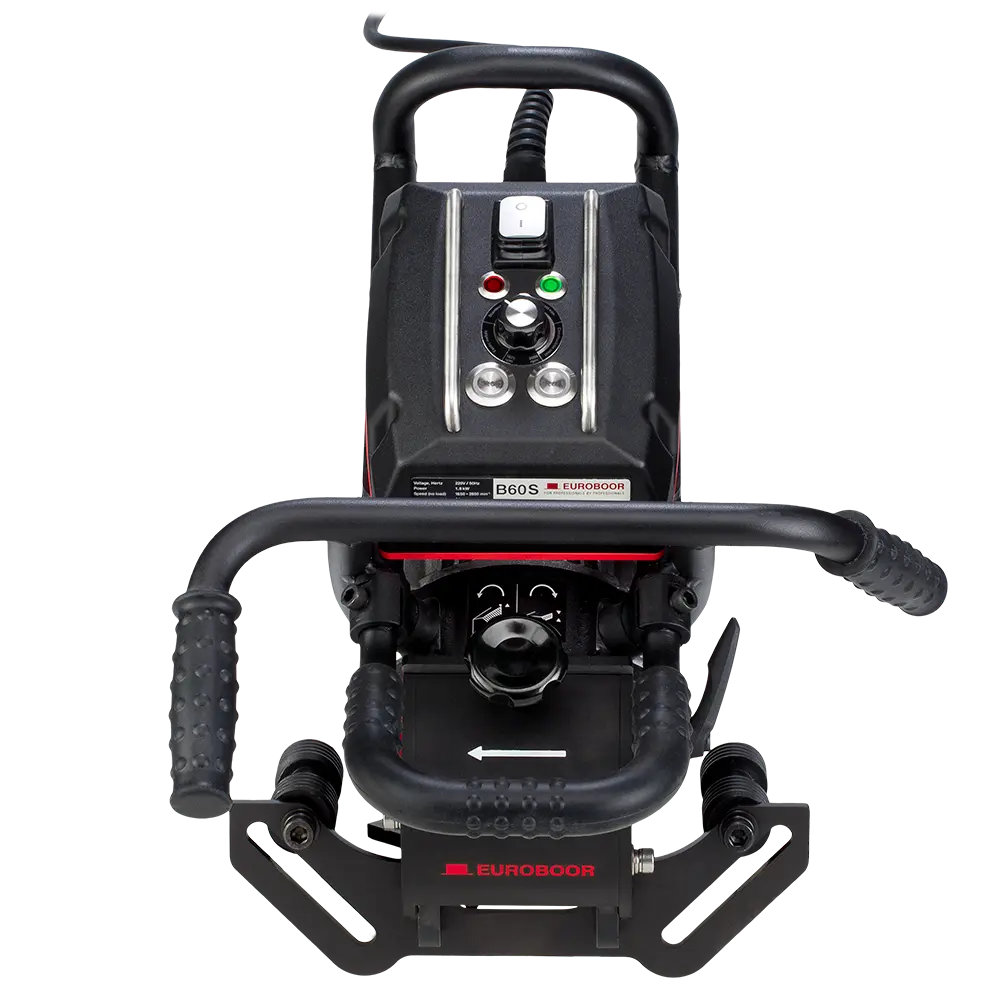

Bevelling machine, 220 V, 1800 W.

Bevelling machine, power supply tension 220 - 240 Volt, motor power 1800 Watt.

Order code

B60S

EAN code

8719956044120

Order

B60S

The Euroboor B60S bevelling machine has a maximum bevel width of 24 mm, at an angle of 45˚, which is unique in the market. Furthermore, this machine benefits from an exceptional powerful 1800 W motor making this machine very suitable for not only cutting stainless steel but a wide variety of materials. The Euroboor B60S is equipped with overload protection and has a variable speed, including material type indicator. This machine is suitable to cut both plate and pipe material.

Need a 110 V version of this machine? Please contact our sales team.

Accessories

Properties
Fact sheet
Package contents
Parts list / manual

Properties

Adjustable speed

Dimensions
maximum bevel size at 0 degrees (millimeter)	24
maximum bevel size at 0 degrees (inch)	15/16
maximum bevel size at 15 degrees (millimeter)	20.2
maximum bevel size at 15 degrees (inch)	4/5
maximum bevel size at 30 degrees (millimeter)	20.6
maximum bevel size at 30 degrees (inch)	13/16
maximum bevel size at 37.5 degrees (millimeter)	21.4
maximum bevel size at 37.5 degrees (inch)	5/6
maximum bevel size at 45 degrees (millimeter)	24
maximum bevel size at 45 degrees (inch)	15/16
maximum bevel size at 60 degrees (millimeter)	20.4
maximum bevel size at 60 degrees (inch)	4/5
minimum bevel size (millimeter)	20.2
minimum bevel size (inch)	4/5
maximum bevel size (millimeter)	24
maximum bevel size (inch)	15/16
length (millimeter)	415
width (millimeter)	375
height (millimeter)	268
Properties
electric rotation speed adjustment	yes
nett weight (pound)	53
nett weight (kilogram)	24.1
system of measurement	mm (metric)
application	Bevelling
Performance
no-load minimum rotation speed gear 1 (rotations per minute)	1675
no-load maximum rotation speed gear 1 (rotations per minute)	2850
no-load rotation speed gear 1 (rotations per minute)	2850
Supply
motor power (Watt)	1800
power supply frequency (Hertz)	50 - 60
power supply connection	plug according CEE 7/7
power supply source	mains supply
power supply type	electric
power supply tension (Volt)	220 - 240
Usage
maximum machining angle (degrees)	60
minimum pipe diameter (millimeter)	150
