Bevelling machine, 220 V, 1100 W.

Bevelling machine, power supply tension 220 - 240 Volt, motor power 1100 Watt.

Order code

B60

EAN code

8719956040474

Order

B60

With a maximum bevel width of 24 mm, at an angle of 45 ̊, the Euroboor B60 beveling machine is a unique machine in the market. This bevelling machine has a powerful high-efficiency motor and is suitable to cut both plate and pipe material. The Euroboor B60 bevel machine has a clear indicator for angle setting, up to 60˚ and is easy to control thanks to the clear, precise, and simple (protected) control buttons. The Euroboor B60 is equipped with overload protection.

Accessories

Properties
Fact sheet
Package contents
Parts list / manual

Properties

Dimensions

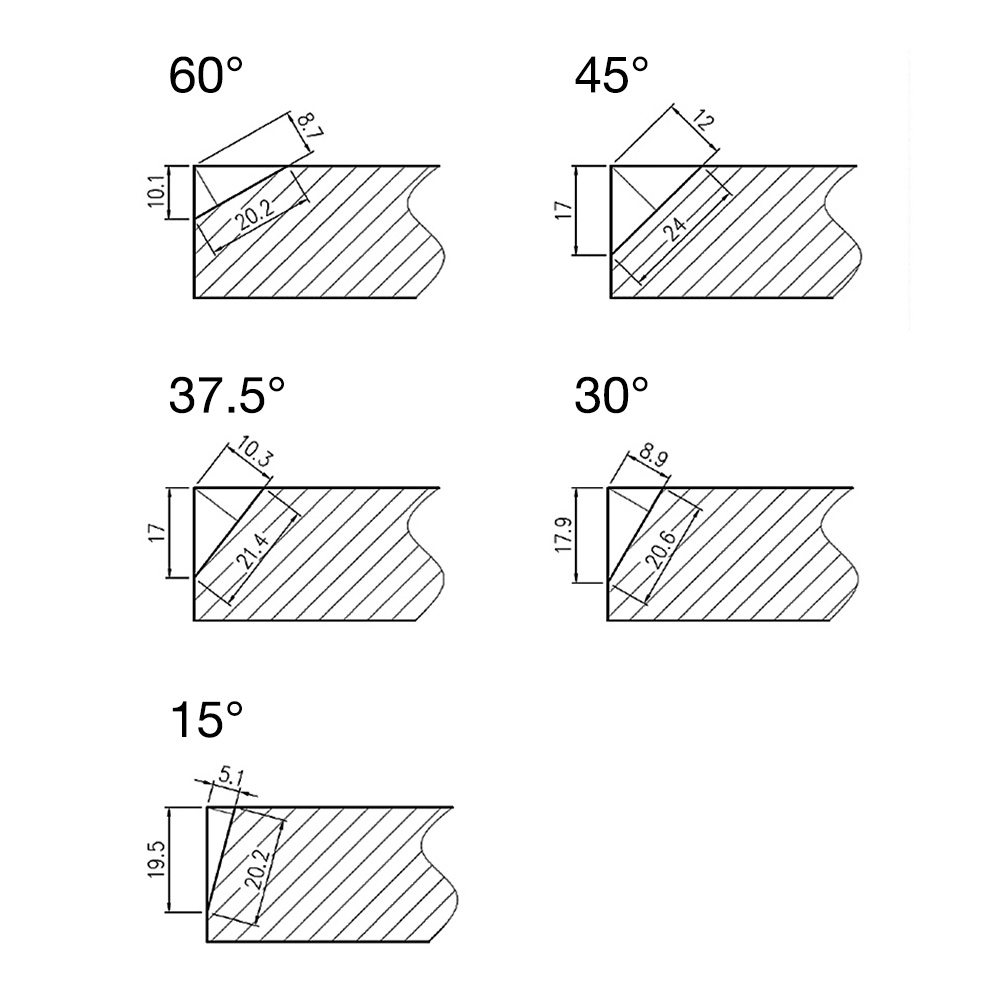

maximum bevel size at 0 degrees (millimeter)	24
maximum bevel size at 0 degrees (inch)	15/16
maximum bevel size at 15 degrees (millimeter)	20.2
maximum bevel size at 15 degrees (inch)	4/5
maximum bevel size at 30 degrees (millimeter)	20.6
maximum bevel size at 30 degrees (inch)	13/16
maximum bevel size at 37.5 degrees (millimeter)	21.4
maximum bevel size at 37.5 degrees (inch)	5/6
maximum bevel size at 45 degrees (millimeter)	24
maximum bevel size at 45 degrees (inch)	15/16
maximum bevel size at 60 degrees (millimeter)	20.4
maximum bevel size at 60 degrees (inch)	4/5
minimum bevel size (millimeter)	20.2
minimum bevel size (inch)	4/5
maximum bevel size (millimeter)	24
maximum bevel size (inch)	15/16
length (millimeter)	415
width (millimeter)	375
height (millimeter)	268
Properties
nett weight (pound)	53
nett weight (kilogram)	24.1
system of measurement	mm (metric)
application	Bevelling
Performance
no-load rotation speed gear 1 (rotations per minute)	2850
Supply
motor power (Watt)	1100
power supply frequency (Hertz)	50 - 60
power supply connection	plug according CEE 7/7
power supply source	mains supply
power supply type	electric
power supply tension (Volt)	220 - 240
Usage
maximum machining angle (degrees)	60
minimum pipe diameter (millimeter)	150
