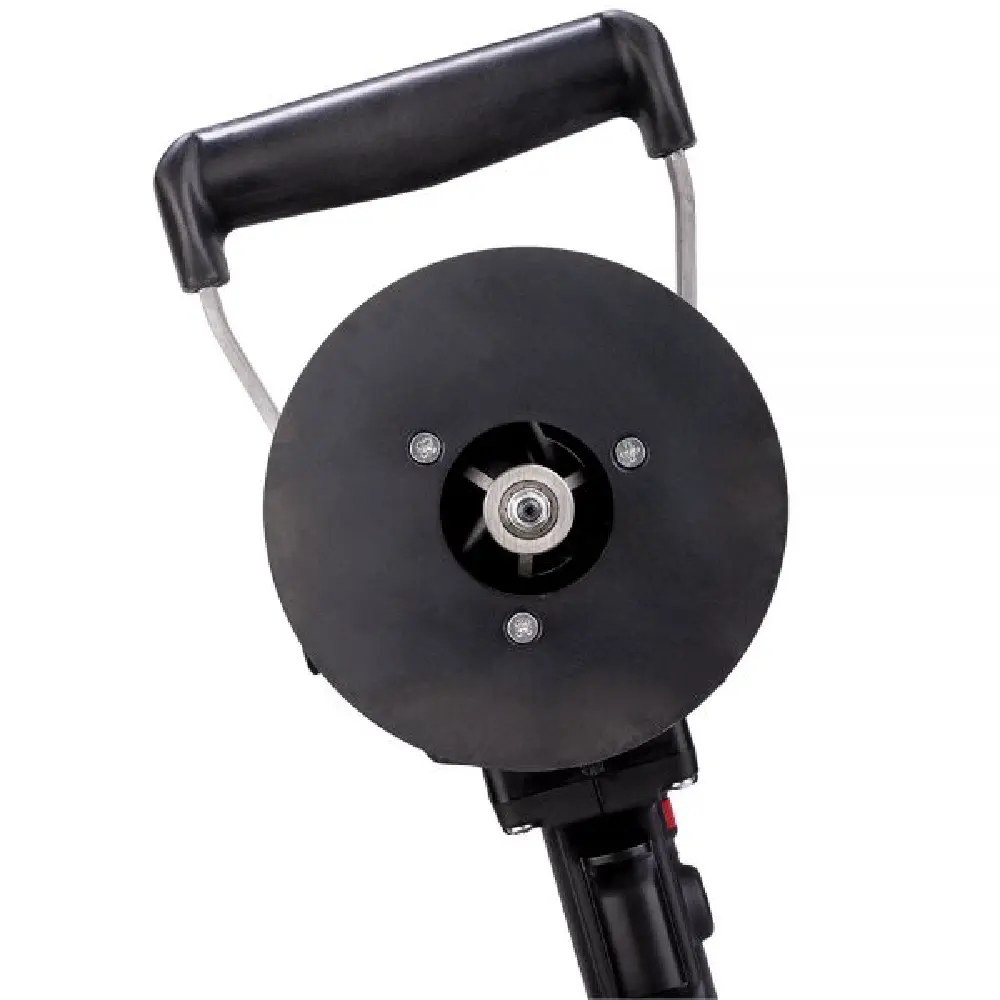

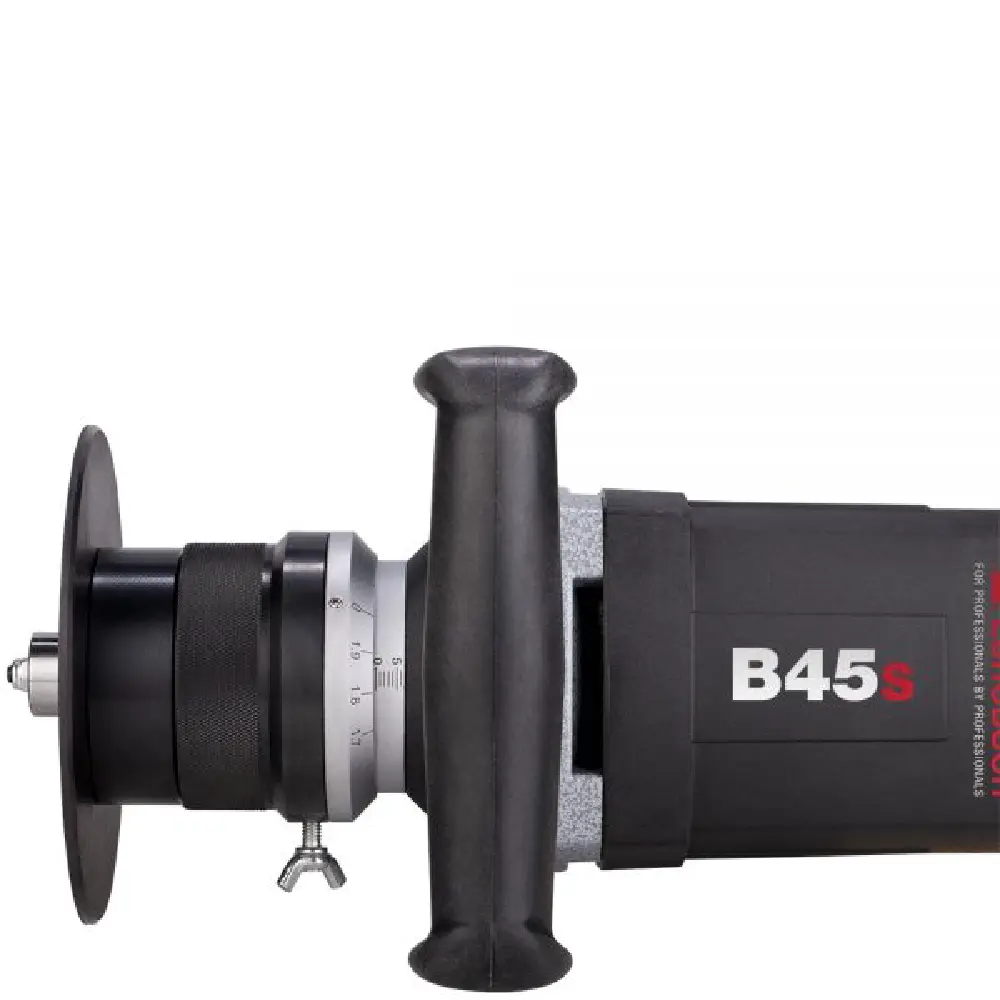

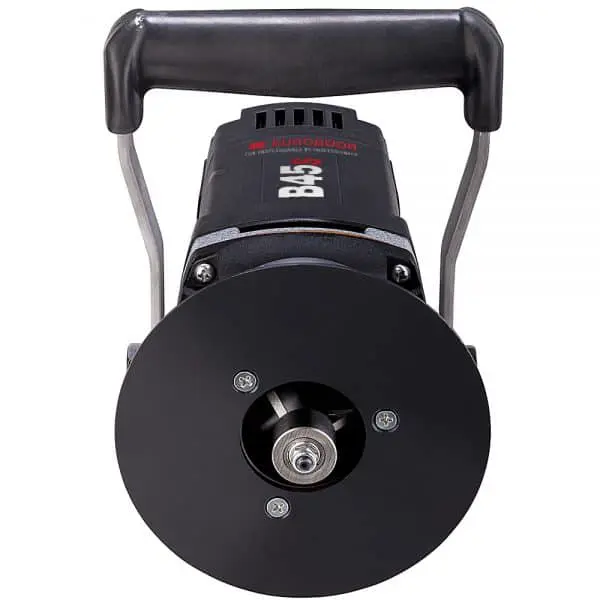

Bevelling machine, 220 V, 1250 W.

Bevelling machine, power supply tension 220 - 240 Volt, motor power 1250 Watt.

Order code

B45S

EAN code

8720143710643

Order

B45S

The Euroboor B45S benefits from quick and easy bevel width adjustment with clear indicator. This bevelling machine has a maximum bevel width of 6 mm, at an angle of 45°.The spindle speed adjustment range makes the B45S suitable for various materials. The electronic speed stabilization and overheat protection take care of creating perfect finishes with the greatest of ease.

Accessories

Properties
Product info
Fact sheet
Package contents
Parts list / manual

Properties

Adjustable speed

Connection
connection 1 model	inside
connection 1 type	thread
Dimensions
maximum bevel size at 45 degrees (millimeter)	6
maximum bevel size at 45 degrees (inch)	1/4
thread pitch (millimeter)	1.75
thread size (millimeter)	12
length (millimeter)	458
width (millimeter)	137
height (millimeter)	300
inside / minimum diameter (millimeter)	20
Properties
electric rotation speed adjustment	yes
nett weight (pound)	10.6
nett weight (kilogram)	4.8
system of measurement	mm (metric)
application	beveling
Performance
no-load minimum rotation speed gear 1 (rotations per minute)	1750
no-load maximum rotation speed gear 1 (rotations per minute)	5250
load maximum rotation speed gear 1 (rotations per minute)	5250
Supply
motor power (Watt)	1250
power supply frequency (Hertz)	50 - 60
power supply current	AC
power supply connection	plug according CEE 7/7
power supply source	mains supply
power supply type	electric
power supply tension (Volt)	220 - 240
Usage
minimum machining angle (degrees)	30
maximum machining angle (degrees)	45
minimum pipe diameter (millimeter)	20

Bevelling Machines -
Which one suits you best!

Bevelling is an essential step in metalworking. By removing material at the edges of a workpiece, it ensures better weld preparation, improves coating adhesion, enhances aesthetics, and reduces the risk of injuries from sharp edges. Different bevelling techniques serve different goals, which is why there are several types of bevelling machines.

Types of Bevelling Machines

1. Straight bevelling machines

Designed to create fixed-angle bevels, typically 45°. Commonly used for weld preparation, chamfering, and deburring, they provide consistent and precise results for structural and industrial applications.

2. Radius bevelling machines

These machines create rounded edges instead of sharp angles. Ideal when coating durability is important, when a smooth and decorative look is desired, or when safety requires the removal of sharp edges.

3. Variable-angle bevelling machines

With adjustable angle settings, these machines allow flexibility for projects that require multiple bevel types on one piece. They are especially valuable in complex welds, custom fabrication, and situations where versatility is key.

Why Choose Euroboor Bevelling Machines?

Versatile Applications
From welding prep to finishing work, our machines handle various bevel types and materials.
Precision Engineering
Consistent, high-quality bevels for stronger welds and professional finishes.
Durable & Portable
Built for industrial use while remaining easy to transport.
