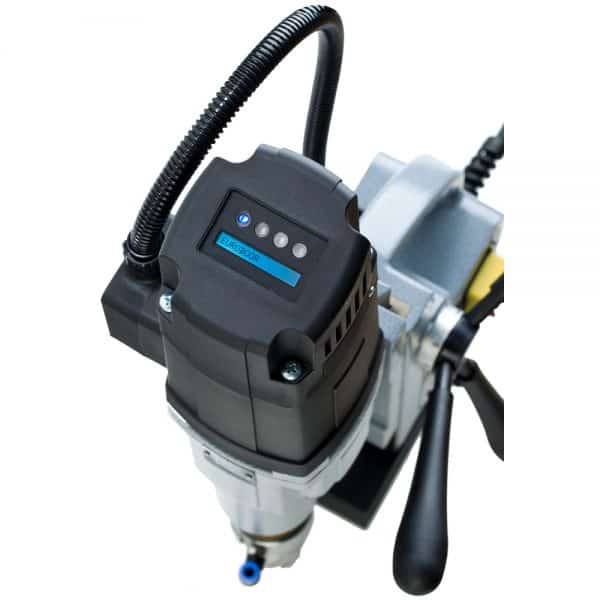

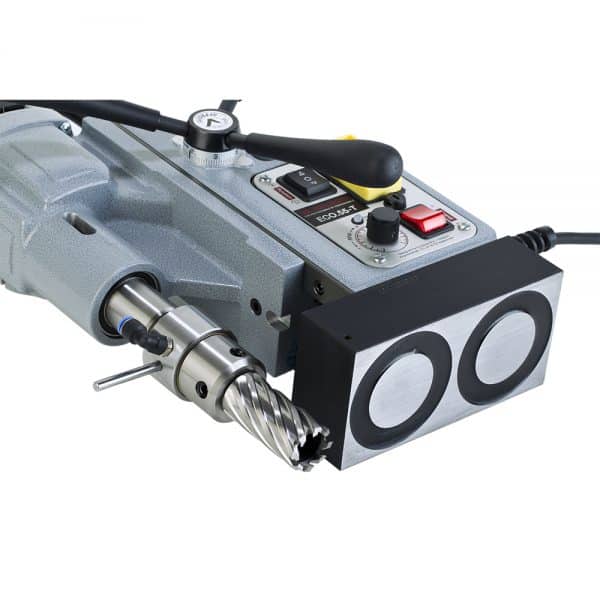

Magnetic drilling machine, 55 mm, 220 V.

Magnetic drilling machine, annular cutters max. dia 55 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction bidirectional.

Order codeECO.55S-T
EAN code8718375410967
Order
Show alternatives


Contact us

Properties

Connection
minimum diameter threading (inch)1/8
minimum diameter threading (millimeter)M3
maximum diameter threading (inch)13/16
maximum diameter threading (millimeter)M20
minimum diameter annular cutters (inch)7/16
minimum diameter annular cutters (millimeter)12
maximum diameter annular cutters (inch)2 3/16
maximum diameter annular cutters (millimeter)55
minimum diameter countersinking (inch)3/8
minimum diameter countersinking (millimeter)10
maximum diameter countersinking (inch)2 3/8
maximum diameter countersinking (millimeter)60
minimum diameter twist drills (inch)1/16
minimum diameter twist drills (millimeter)1
maximum diameter twist drills (inch)15/16
maximum diameter twist drills (millimeter)23
connection 1 modelinside
connection 1 size (inch)3/4
connection 1 size (millimeter)19.05
connection 2 morse taper / drill chuck classMT3
connection 1 typeWeldon
connection 2 modeloutside
connection 2 typemorse taper
Dimensions
stroke (inch)6 11/16
stroke (millimeter)170
magnet length (inch)6 5/8
magnet length (millimeter)168
magnet width (inch)3 5/16
magnet width (millimeter)94
magnet height (inch)1 15/16
magnet height (millimeter)49
minimum height (inch)19 5/16
minimum height (millimeter)490
maximum height (inch)26
maximum height (millimeter)660
length (inch)12 5/8
width (inch)7 7/8
length (millimeter)320
width (millimeter)200
height (inch)26
height (millimeter)660
Properties
rotation directionbidirectional
type of gear box lubricationOil
magnetic force (kilogram)1850
magnetic force (pound)4080
electric rotation speed adjustmentyes
nett weight (pound)28.4
nett weight (kilogram)12.9
system of measurementmm (metric)
applicationDrilling, Countersinking, Tapping
Performance
no-load minimum rotation speed gear 1 (rotations per minute)60
no-load maximum rotation speed gear 1 (rotations per minute)275
no-load rotation speed gear 1 (rotations per minute)775
load minimum rotation speed gear 1 (rotations per minute)60
load maximum rotation speed gear 1 (rotations per minute)275
load rotation speed gear 1 (rotations per minute)440
no-load minimum rotation speed gear 2 (rotations per minute)100
no-load maximum rotation speed gear 2 (rotations per minute)500
load minimum rotation speed gear 2 (rotations per minute)100
load maximum rotation speed gear 2 (rotations per minute)500
Supply
motor power (Ampère)14.5
motor power (Watt)1600
total power (Ampère)15.5
total power (Watt)1700
power supply frequency (Hertz)50 - 60
power supply currentAC
power supply connectionplug according CEE 7/7
power supply sourcemains supply
power supply typeelectric
power supply tension (Volt)220 - 240

Fact sheet

Manual

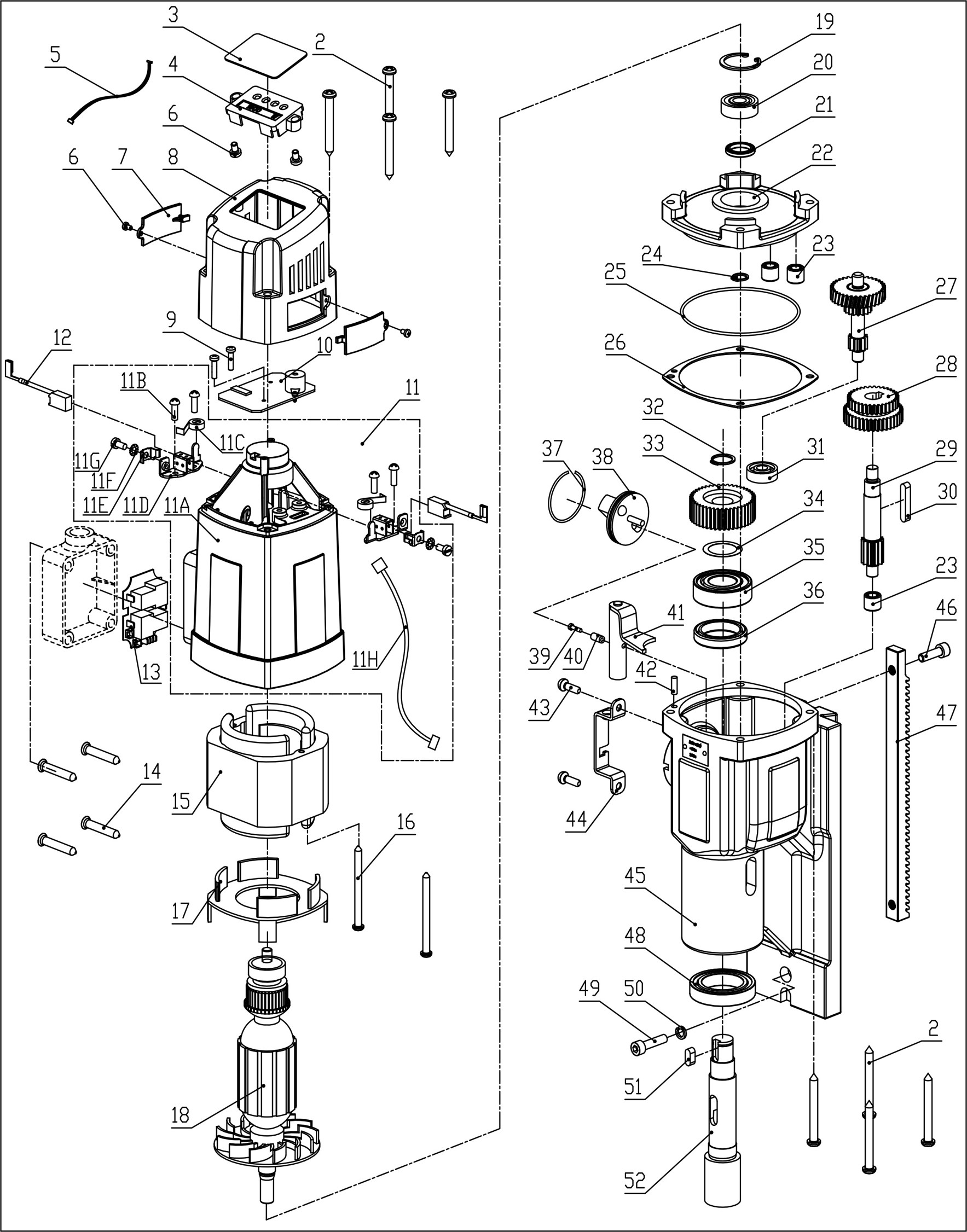

MOTORBODYCASE
NoSearch codeDescriptionQty
2050.0106Screw 4.8 x 45
81821004803004		8
3050.0059Protective cover 53 x 35
81231300017004		1
4050.1013LED screen
81424000017004		1
5050.0137FPC wire for display
81432500009004		1
6050.0060Screw M3 x 5
81821003005004		2
7050.0133End plate
81231600014004		2
8050.0130End cover
81231300018004		1
9032T.0019XAScrew M3 x 8
81821003006004		2
10050T.0340XControl unit B
81411000015004		1
11050.0131Housing
81231200036004		1
12055.1015Carbon brush set 220V
82261320001004		1
13050T.0002-4Control unit A 220V
81411020048004		1
14050.0587Screw 5 x 30
81821004004004		4
15050T.0278Field 220V
81210020034004		1
16020.0328Screw M4 x 70
81821004018004		2
17050.0261Baffle
81231700003004		1
18050T.0183Armature 220V
81220020041004		1
19032.0166Circlip 472/28/1.2
81823828002004		1
20050.9070Bearing 6001V V
81331000137004		1
21050.0064Oil bearing 15 x 21 x 3
81331000124004		1
22050.0236/YInner gear plate
81231000021004		1
23040.0161Needle bearing HK0810
81331000013004		3
24032.0176Circlip 471/10/1
81823810001004		1
25050.0071O-ring 82 x 1.8
81811282001004		1
26050.0207Gasket middle
81811500004004		1
27050.0252Gear assembly
81341500020004		1
28050.0171Gear 34/40Z
81341500002004		1
29050.0231Axle 13T
81321400003004		1
30100.4496Key 5 x 5 x 28
81321800029004		1
31032.0126Bearing 608ZZ 8 x 22 x 7
81331000004004		1
32050.0076Circlip Ø20
81823820001004		1
33050.0463Gear 1 x 45T
81341000025004		1
34050.0462Washer 20.5 x 28 x 0.2
81823028001004		1
35030.0009Bearing 6004 DDU
81331000122004		1
36050.0066Oil bearing 28 x 38 x 7
81331000125004		1
37050.0078Ring 41.5 x 36.5 x 1.5
81823541501004		1
38050.1014Gear switch assembly
81321200007004		1
39020.0329Screw M4 x 16
81821004019004		1
40050.0082Screw holder
81826000029004		1
41050.1005AClutch shaft
81321000010004		1
42032.0211Casing pin 4 x 12
81825004001004		1
43KSP.MSScrew M5 x 10
81821005029004		3
44KSP.M/3Tank holder
81681300012004		1
45050.1015Gear casing ECO.55-series 110V / 220V
81251030001004		1
46020.0106AScrew M6 x 20
81821000047004		1
47050.0074Rack - 1.5X39T
81231500011004		1
48050.0068Bearing 61906 DDU
81331000126004		1
49020.0146Screw M6 x 25
81821000048004		1
50020.0111Washer M6 DIN7980
81823000001004		1
51050.0077Key 6 x 6 x 12
81321800040004		1
52050.0461Spindle drive shaft 34 x 146 #3
81311000018004		1

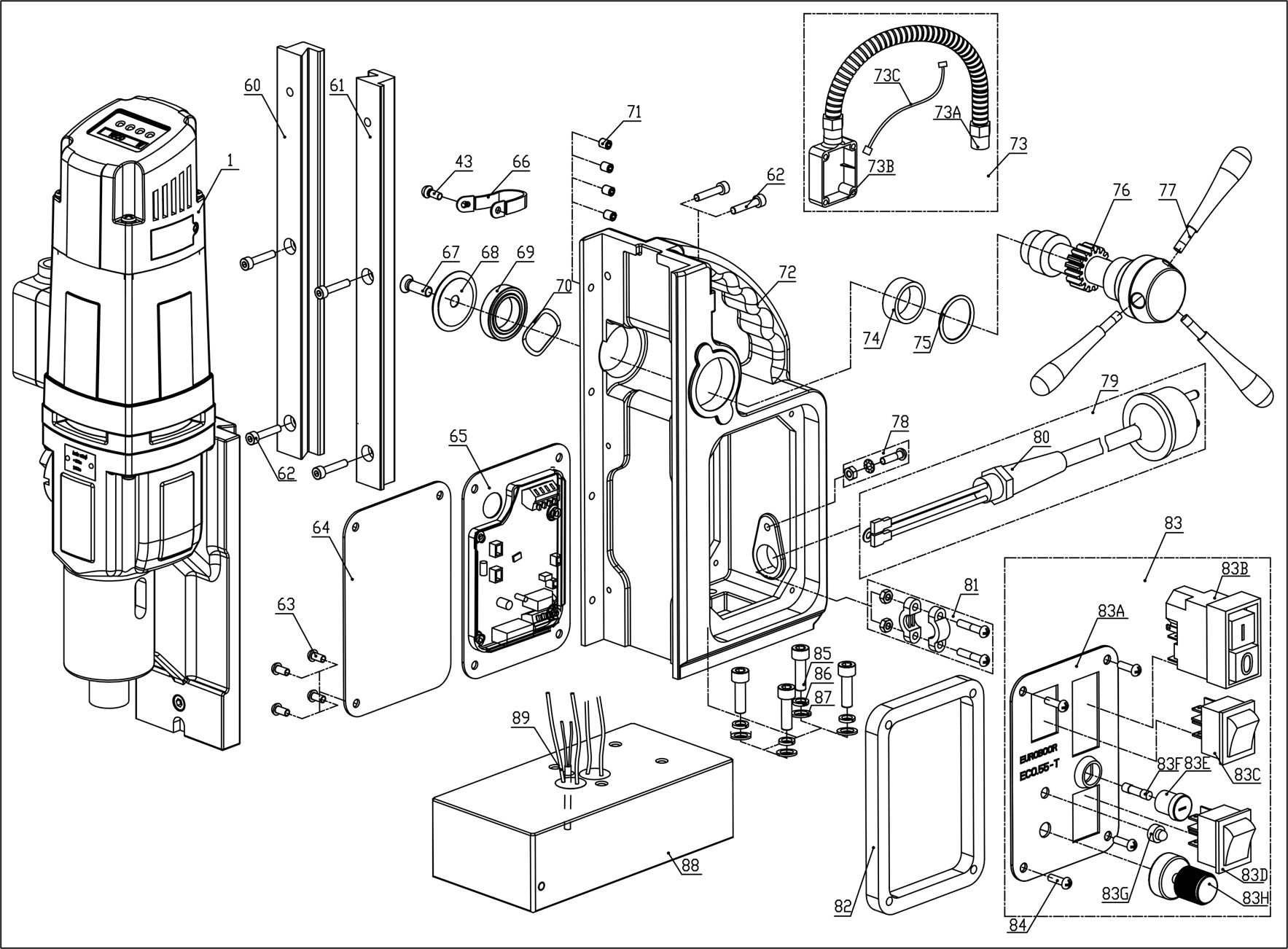

MOTORBODYCASE
NoSearch codeDescriptionQty
1055T.1001ZECO.55S+/T motor unit 220V ext. cable
81611020029004		1
60020.0086/ZRail set Aluminium (L/R) Z-profile
81661300031004		1
61020.0086/ZRail set Aluminium (L/R) Z-profile
81661300031004		1
62100.0022Bolt M5 x 20
81822004006004		6
63020.0101Panel screw BKVZ M4 x 8
81821004001004		4
64055.0002Rear panel 220V
81831320009004		1
65055T.1018-BSpeed control unit 220V
81411020019004		1
66020.0298Motor cable clamp
81433000023004		1
67020.0081Screw BKVZ M6 x 16
81821006001004		1
68050.0030End cover Ø36 X 3
81231300016004		1
69050.0063Bearing 6804 ZZ
81331000123004		1
70040.0023Washer
81823000108004		1
71020.0231Screw M5 x 6
81821005026004		4
72020.0056/ZFrame aluminium rail (Z)
81631000041004		1
73055T.1014-BMotor cable
81431200023004		1
73A020.0041Coupling nut PG9 (motor cable)
81824609002004		2
73B050.0586Cable housing
81433000002004		1
73C050T.0341-01Black six-core wire
81432500020004		1
74032.0127AAdapter ring v2
81823600019004		1
75030.0027Washer 28 x 34.5 x 0.2 mm
81823000107004		1
76020.0315XArm for capstan
81651300022004		3
77020.0061/ZCapstan hub assembly
81651000013004		1
78020.0182Grounding screw/washer/nut
81829000002004		1
79EU030.B125Main cable set 220V EU
81431520002004		1
79AU020.0036/AUMain cable 220V AU
81431520005004		1
79UK020.0036/UKMain cable 220V UK
81431520004004		1
80020.0031Coupling nut PG11 (main cable)
81824611001004		1
81020.0037Cable clamp complete
81433000008004		1
82032T.0009Spacer
81826500004004		1
83055T.B050ZPanel plate assembly 220V
81411220020004		1
83A050T.0001Front plate 55S-T
81831000068004		1
83BBY20.0006BMotor switch (7-pin) 220V
81641120005004		1
83C100.0152Switch L / R (push) 1800W
81641300003004		1
83D020.0011/1Magnet switch
81641400008004		1
83E020.0016Fuse holder
81422300001004		1
83F020.0016BFuse
81422300008004		1
83G020.0206LED indicator set
81422800002004		1
83H050T.1009Potentiometer (turn) knob
81421800010004		1
84020.0183Screw M4 x 20
81821004025004		4
85020.0146Screw M6 x 25
81821000048004		4
86020.0111Washer M6 DIN7980
81823000001004		4
87020.0112Washer M6
81823006003004		4
88050.1003Magnet 220V
81621020017004		1
89100.1008Sensor
81422000006004		1

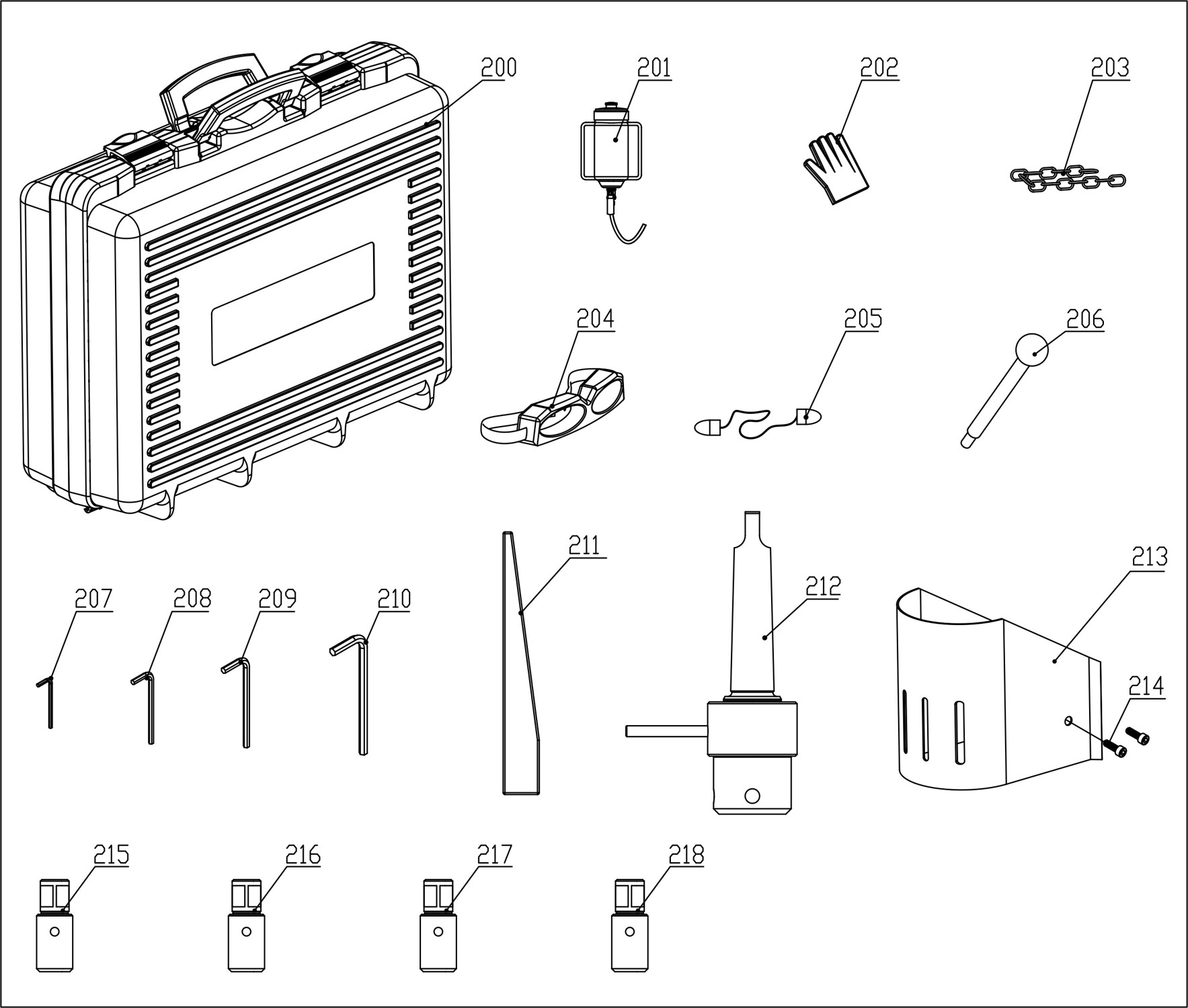

MOTORBODYCASE
NoSearch codeDescriptionQty
200055T.2010   Case for ECO.55S/T
81843500045004		1
201KSP.Q2Coolant tank Quick Connect 2015
81681300010004		1
202MEBGLV.MEuroboor working gloves size M
91411000020004		1
202LEBGLV.LEuroboor working gloves size L
91411000021004		1
202XLEBGLV.XLEuroboor working gloves size XL
91411000022004		1
203SAF.400Safety chain (1 mtr) with lock
81841300006004		1
204SAF.100Safety goggles
81841500002004		1
205SAF.200Ear plugs
81841500001004		1
206KSP.PPin and knob for cooling tank
81682400005004		1
207IMB.US2.5Allen key 2.5 mm
81842600006004		1
208IMB.US3Allen key 3.0 mm
81842600007004		1
209IMB.US4Allen key 4.0 mm
81842600004004		1
210IMB.US5Allen key 5.0 mm
81842600005004		1
211DRIFT3Drift MT3
81843000016004		1
212IMC.30/19-NArbor MT3 - 19.05 (3/4") Weldon
31125332001004		1
213SAF.MDMBSafety guard for ECO.50
81841000019004		1
214020.0223Screw M5 x 10
81821000127004		2
215TCM.10D376Tap holder DIN376 M10 Ø7
52520701000004		1
216TCM.12D376Tap holder DIN376 12 Ø9
52520901200004		1
217TCM.14D376Tap holder DIN376 M14 Ø11
52521101400004		1
218TCM.16D376Tap holder DIN376 M16 Ø12
52521201600004		1
