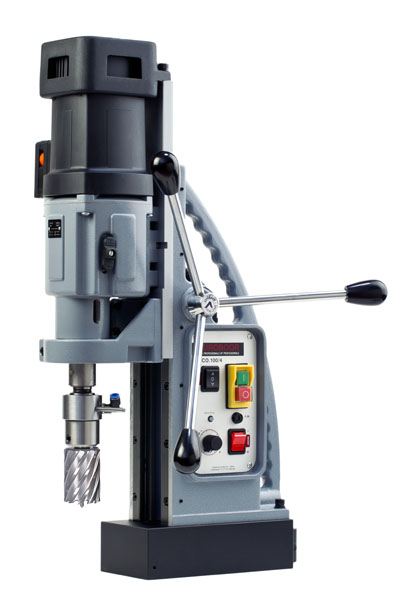

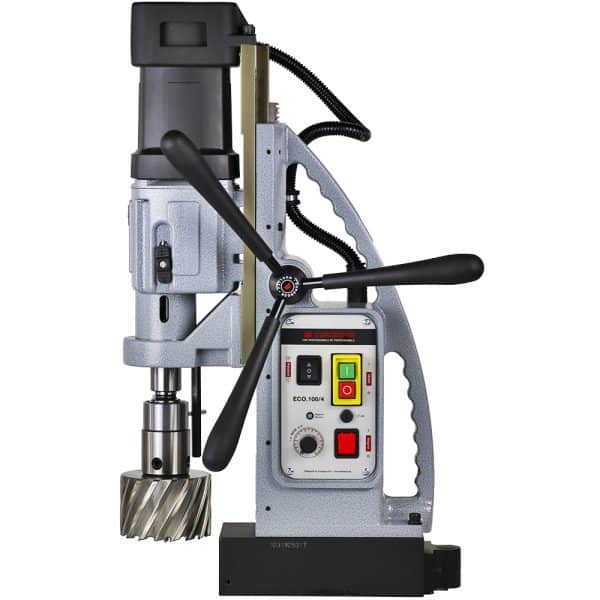

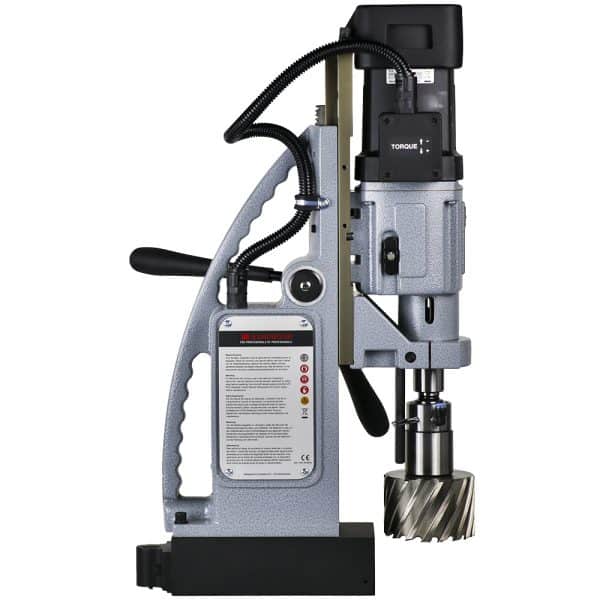

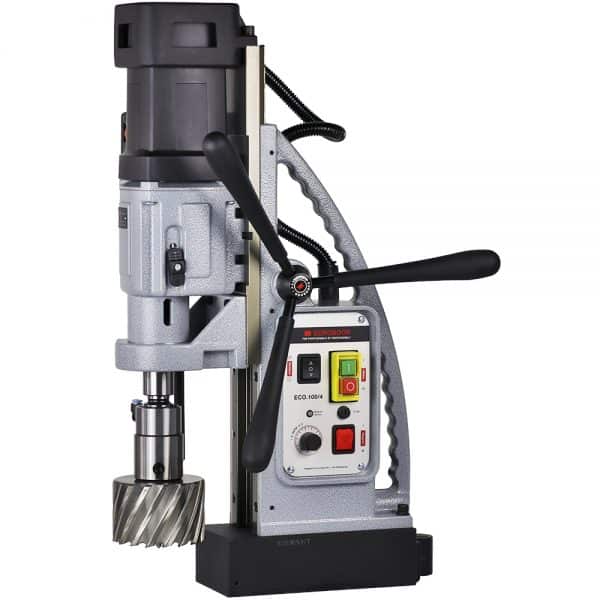

Magnetic drilling machine, 100 mm, 220 V.

Magnetic drilling machine, annular cutters max. dia 100 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction bidirectional.

Order codeECO.100/4
EAN code8718375390153
Order

The Euroboor ECO.100/4 magnetic core drilling machine cuts holes up to ø 100 mm (4“) and is particularly suitable for tapping. This magnetic core drilling machine has an extremely powerful 1,900 W (17.3 A) motor with a four-speed gearbox. The ECO.100/4 drilling machine benefits from a right/left rotating functionality and electronic speed adjustment.


Contact us

Properties

Connection
minimum diameter threading (inch)1/8
minimum diameter threading (millimeter)M3
maximum diameter threading (inch)1 3/16
maximum diameter threading (millimeter)M30
minimum diameter annular cutters (inch)7/16
minimum diameter annular cutters (millimeter)12
maximum diameter annular cutters (inch)4
maximum diameter annular cutters (millimeter)100
minimum diameter countersinking (inch)3/8
minimum diameter countersinking (millimeter)10
maximum diameter countersinking (inch)4 1/8
maximum diameter countersinking (millimeter)105
minimum diameter twist drills (inch)1/16
minimum diameter twist drills (millimeter)1
maximum diameter twist drills (inch)1 1/4
maximum diameter twist drills (millimeter)32
connection 1 modelinside
connection 1 size (inch)3/4
connection 1 size (millimeter)19.05
connection 1 typeWeldon
Dimensions
stroke (inch)10 1/4
stroke (millimeter)260
magnet length (inch)8 11/16
magnet length (millimeter)220
magnet width (inch)4 5/6
magnet width (millimeter)110
magnet height (inch)2 1/2
magnet height (millimeter)64
minimum height (inch)20 1/16
minimum height (millimeter)510
maximum height (inch)27 15/16
maximum height (millimeter)710
length (inch)14 3/8
width (inch)12 3/16
length (millimeter)365
width (millimeter)310
height (inch)27 15/16
height (millimeter)710
Properties
rotation directionbidirectional
type of gear box lubricationGrease
magnetic force (kilogram)3000
magnetic force (pound)6615
electric rotation speed adjustmentno
nett weight (pound)61.73
nett weight (kilogram)28
system of measurementmm (metric)
applicationDrilling, Countersinking, Tapping
Performance
no-load minimum rotation speed gear 1 (rotations per minute)42
no-load maximum rotation speed gear 1 (rotations per minute)110
load rotation speed gear 1 (rotations per minute)85
no-load minimum rotation speed gear 2 (rotations per minute)65
no-load maximum rotation speed gear 2 (rotations per minute)190
load minimum rotation speed gear 2 (rotations per minute)152
load maximum rotation speed gear 2 (rotations per minute)152
load rotation speed gear 2 (rotations per minute)152
no-load minimum rotation speed gear 3 (rotations per minute)140
no-load maximum rotation speed gear 3 (rotations per minute)400
load minimum rotation speed gear 3 (rotations per minute)270
load maximum rotation speed gear 3 (rotations per minute)270
load rotation speed gear 3 (rotations per minute)270
no-load minimum rotation speed gear 4 (rotations per minute)220
no-load maximum rotation speed gear 4 (rotations per minute)620
load minimum rotation speed gear 4 (rotations per minute)480
load maximum rotation speed gear 4 (rotations per minute)480
load rotation speed gear 4 (rotations per minute)480
Supply
motor power (Ampère)17.3
motor power (Watt)1900
total power (Ampère)18.6
total power (Watt)2050
power supply frequency (Hertz)50 - 60
power supply currentAC
power supply connectionplug according CEE 7/7
power supply sourcemains supply
power supply typeelectric
power supply tension (Volt)220 - 240
