Sciage
Machines de sciage
EDC.355
Scie à découper à sec, 14", 110 V, US.
Scie à découper à sec, D 14 pouce, tension d'alimentation 110 - 120 Volts, fiche US selon NEMA 5-15, puissance du moteur 2480 Watts.
Code EAN
8720663012043
Obtenez un devis
EDC.355 metal Dry cut-off saw
The Euroboor EDC.355 “Bladerunner” metal dry cut-off saw is ideal for cutting metal profiles, pipes and sheet material. This robust machine has an adjustable cutting angle from 0° to 45° and a molded aluminum base with adjustable angle indication. In addition, the base has 3 attachment points to fix the machine to your workbench. The EDC.355 is powered by an extremely powerful 2480 W motor with built-in soft start functionality. With 1450 rpm, this machine is suitable for sawing all types of metals.
The supplied 66-teeth saw blade is suited for sawing mild steel. It provides an accurate and smooth finish so that the sawn material is ready for welding. The big advantage of our saw blade is that it produces virtually no sparks and the cuts stay cool, making it faster, easier and safer to use than abrasive wheel cutters. A 66-teeth TCT Japanese saw blade is also available for hard steel and cast iron.
The transparent protective shield ensures that the chips are safely discharged while you keep a good view of your work. The machine has a locking pin and an ergonomic handle, so you can easily carry the machine. The safety button also ensures that you are protected against accidental start-up.
Free V-clamp included.
Montre plus
Montrer moins
Contactez-nous
Adjustable sawing angle from 0° to 45°
Molded aluminum base with adjustable angle indication.

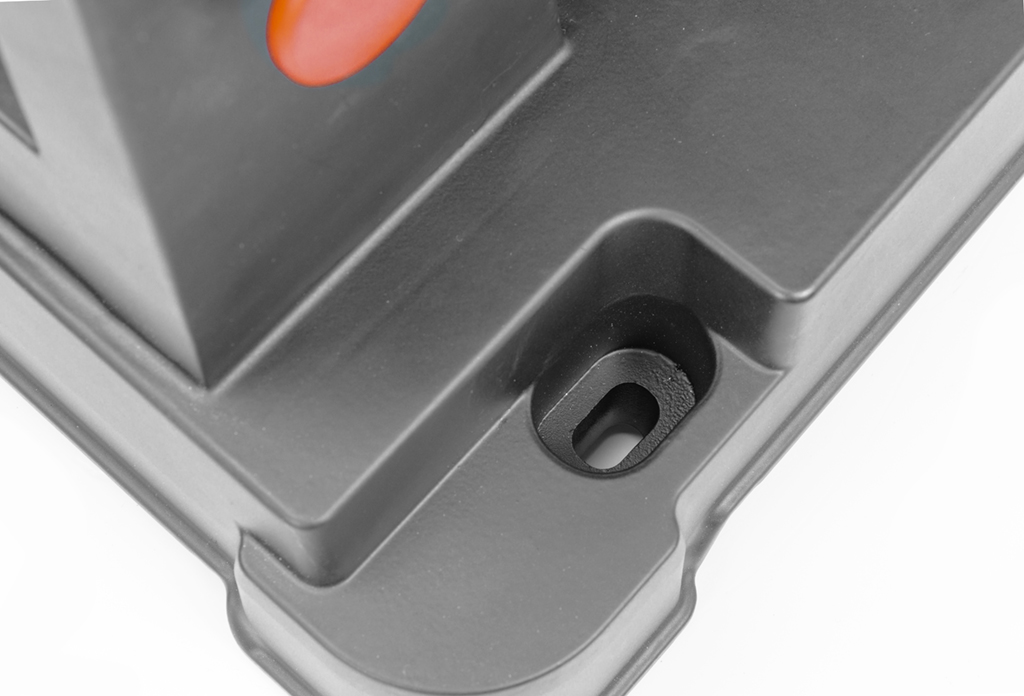

3 attachment points to fix the machine to your workbench.
Ergonomic handle and locking pin to easily carry the machine
Safety button for protection against accidental start-up.
Transparent protective shield for safely discharging of the chips
Robust clamp for very precise clamping of materials
Dust collection tray for a cleaner workspace
Built-in soft-start functionality
Propriétés
Fiche descriptive
Liste des pièces/manuel
Propriétés
Connexion
modèle de connexion 1
intérieur
connexion 1 taille (pouce)
1
connexion 1 taille (millimètre)
25.4
Dimensions
longueur (pouce)
24 7/16
hauteur (pouce)
24 13/16
largeur (pouce)
13 3/4
longueur (millimètre)
620
largeur (millimètre)
350
hauteur (millimètre)
630
extérieur / diamètre maximum (pouce)
14
diamètre extérieur / maximum (millimètre)
355
Propriétés
poids net (livres)
41
poids net (kilogrammes)
18.6
system of measurement
pouce (impérial)
application
sawing
Performance
vitesse de rotation engrenage 1 (rotations par minute)
140
Fournir
puissance du moteur (Ampère)
11
puissance du moteur (Watts)
2480
fréquence de l'alimentation (Hertz)
60
courant d'alimentation
AC
connexion à l'alimentation électrique
fiche selon NEMA 5-15
source d'alimentation électrique
alimentation secteur
type d'alimentation
électrique
tension de l'alimentation (Volts)
110 - 120
Usage
diamètre maximal du matériau rond à 0 degré (millimètre)
120
diamètre maximum du matériau rond à 0 degré (pouce)
4 3/4
diamètre maximal du matériau rond à 45 degrés (millimètre)
90
diamètre maximal du matériau rond à 45 degrés (pouce)
3 9/16
taille maximale du matériau carré à 0 degré (millimètre)
105
taille maximale du matériau carré à 0 degré (pouce)
4 1/8
matériau carré de taille maximale à 45 degrés (millimètre)
80
taille maximale du matériau carré à 45 degrés (pouce)
3 1/8
taille maximale du matériau rectangulaire à 0 degré (millimètre)
90 x 145
taille maximale du matériau rectangulaire à 0 degré (pouce)
3 9/16 x 5 11/16
taille maximale du matériau rectangulaire à 45 degrés (millimètre)
90 x 80
taille maximale du matériau rectangulaire à 45 degrés (pouce)
3 9/16 x 5 11/16
milieu d'usinage
grinding disk
spécifications du support d'usinage
max diam 13 31/32"
angle d'usinage minimum (degrés)
0
angle d'usinage maximum (degrés)
45
Fiche descriptive
Télécharger la fiche d'information
Manuel
Télécharger Manuel
×
