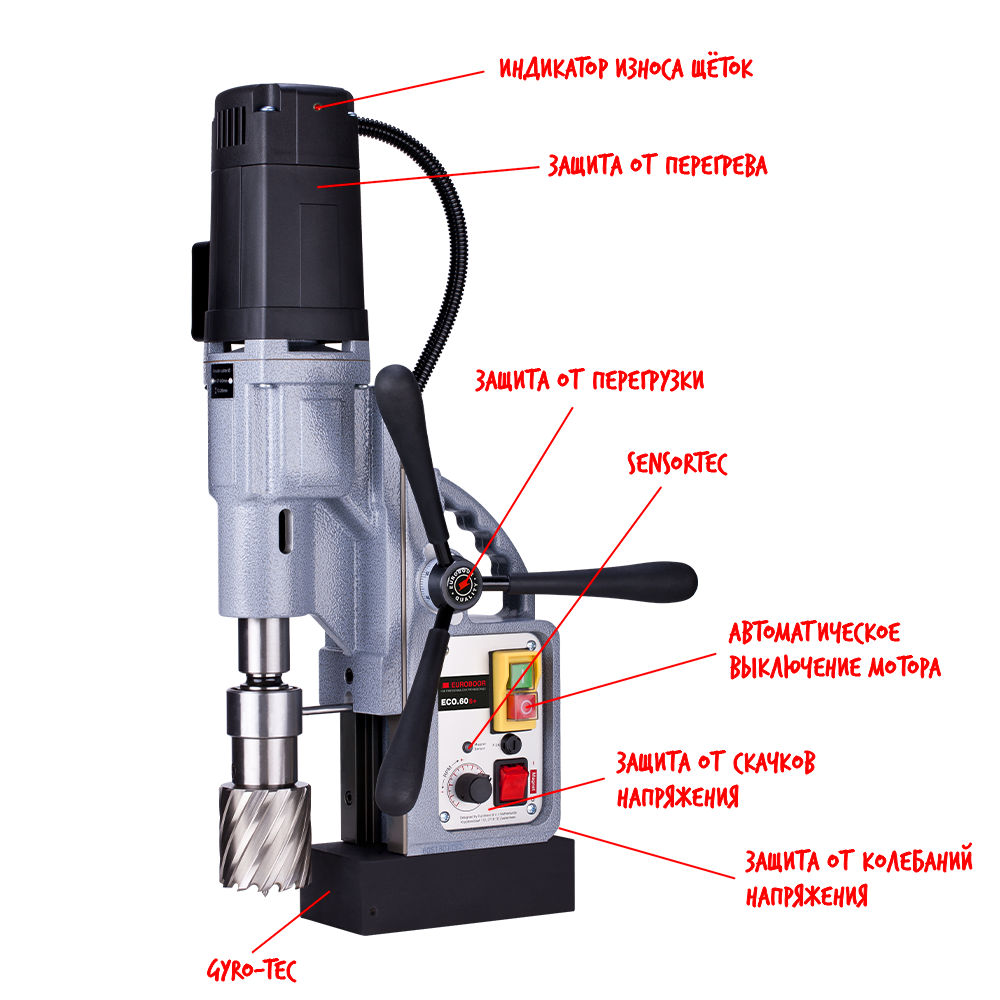

Magnetic drilling machine, 60 mm, 220 V.

Magnetic drilling machine, annular cutters max. dia 60 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction clockwise.

Order codeECO.60S+
EAN code8720143712425
Get a quote

The Euroboor ECO.60S+ magnetic core drilling machine has a powerful 1,600 W motor, an oil lubricated gearbox and overheat protection. This portable magnetic core drilling machine benefits from innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs. This light and reliable machine is a true addition for every workplace.


Contact us

Key Charateristics
Two-speed oil lubricated gearbox
Electronic speed adjustment
High-accuracy capstan hub
Morse Taper 3 spindle with integrated tool cooling and lubrication
Integrated slide for:
High accuracy
Enlarged lifecycle
Minimal vibration
High-precision height adjustment for:
Low maintenance
Minimal wear correction
Overload protection
Smart Restart technology
Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
Reduced risk of damaging machine, tools and workpiece and hurting operator
Suitable for use in areas and workplaces where power supply is of less quality
Reduced risk of armature damage
Reduced risk of control unit(s) damage
Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement

Accessories

Tab Properties

ECO.60S+
Automatic shut off
ECO.60S+
Carbon brush wear indicator
ECO.60S+
Gyro-Tec
ECO.60S+
Overload protection
ECO.60S+
Power fluctuation protection
ECO.60S+
2 way magnet (TempTec)
ECO.60S+
Overheat protection
ECO.60S+
Magnet LED indicator
ECO.60S+
Power surge protection
ECO.60S+
Adjustable speed
ECO.60S+
Oil lubricated gearbox
ECO.60S+
Smart Restart
Connection
minimum diameter annular cutters (inch)1/2
minimum diameter annular cutters (millimeter)12
maximum diameter annular cutters (inch)2 3/8
maximum diameter annular cutters (millimeter)60
minimum diameter countersinking (inch)3/8
minimum diameter countersinking (millimeter)10
maximum diameter countersinking (inch)2 9/16
maximum diameter countersinking (millimeter)65
minimum diameter twist drills (inch)1/16
minimum diameter twist drills (millimeter)1
maximum diameter twist drills (inch)15/16
maximum diameter twist drills (millimeter)23
connection 1 modelinside
connection 1 size (inch)3/4
connection 1 size (millimeter)19.05
connection 2 morse taper / drill chuck classMT3
connection 1 typeWeldon
connection 2 modeloutside
connection 2 typemorse taper
Dimensions
stroke (inch)6 11/16
stroke (millimeter)170
magnet length (inch)6 5/8
magnet length (millimeter)168
magnet width (inch)3 5/16
magnet width (millimeter)84
magnet height (inch)1 15/16
magnet height (millimeter)49
minimum height (inch)17 3/16
minimum height (millimeter)452
maximum height (inch)24 1/2
maximum height (millimeter)622
length (inch)12 5/8
width (inch)7 7/8
length (millimeter)320
width (millimeter)200
height (inch)24 1/2
height (millimeter)622
Properties
rotation directionclockwise
type of gear box lubricationoil
magnetic force (kilogram)1850
magnetic force (pound)4080
electric rotation speed adjustmentyes
nett weight (pound)28.4
nett weight (kilogram)12.9
system of measurementmm (metric)
applicationdrilling, countersinking
Performance
no-load minimum rotation speed gear 1 (rotations per minute)60
no-load maximum rotation speed gear 1 (rotations per minute)275
load minimum rotation speed gear 1 (rotations per minute)60
load maximum rotation speed gear 1 (rotations per minute)275
no-load minimum rotation speed gear 2 (rotations per minute)100
no-load maximum rotation speed gear 2 (rotations per minute)500
load minimum rotation speed gear 2 (rotations per minute)100
load maximum rotation speed gear 2 (rotations per minute)500
Supply
motor power (Ampère)14.5
motor power (Watt)1600
total power (Ampère)15.5
total power (Watt)1700
power supply frequency (Hertz)50 - 60
power supply currentAC
power supply connectionplug according CEE 7/7
power supply source-
power supply type-
power supply tension (Volt)220 - 240

Tab Fact sheet

Tab Package contents

  • 1x case
  • 1x magnetic drilling machine ECO.60S+
  • 3x (Capstan Hub) handles
  • 1x spindle holder MT 3 - 19.05 (3/4"), including cooling/lubrication ring (IMC.30/19-N)
  • 1x drift key
  • 1x lubrication/cooling system
  • 1x Allen key 2.5 mm (3/32")
  • 1x Allen key 4 mm (5/32")
  • 1x Allen key 5 mm (13/64")
  • 1x protection guard
  • 1x safety chain
  • 1x ear protection
  • 1x safety goggles
  • 1x safety gloves
  • 1x user manual

Manual

MOTORBODYCASE
NoSearch codeDescQty
2050.0106Screw 4.8 x 45
81821004803004		8
3050.0111ZEnd cover 110V / 220V
81231300007004		1
4P020.0278Led indicator red alarm 220V
81422820001004		1
5032T.0019XAScrew M3 x 8
81821003006004		2
6050T.0340X-1ZTest-circuit-board
81411000022004		1
7055.1002-60S+Housing 60S+ Including Print
81231200043004		1
8Carbon.55+Carbon brush set 220V
81261320009004		1
9050.0587Screw 5 x 30
81821004004004		4
10050T.0278Field 220V
81210020034004		1
11020.0328Screw M4 x 70
81821004018004		2
12050.0261Baffle
81231700003004		1
13050T.0183Armature 220V
81220020041004		1
14032.0166Circlip 472/28/1.2
81823828002004		1
15050.9070Bearing 6001V V
81331000137004		1
16050.0064Oil bearing 15 x 21 x 3
81331000124004		1
17050.0236/YInner gear plate
81231000021004		1
18040.0161Needle bearing HK0810
81331000013004		3
19032.0176Circlip 471/10/1
81823810001004		1
20050.0071O-ring 82 x 1.8
81811282001004		1
21050.0207Gasket middle
81811500004004		1
22050.0252Gear assembly
81341500020004		1
23050.0171Gear 34/40Z
81341500002004		1
24050.0231Axle 13T
81321400003004		1
25100.4496Key 5 x 5 x 28
81321800029004		1
26032.0126Bearing 608ZZ 8 x 22 x 7
81331000004004		1
27050.0076Circlip Ø20
81823820001004		1
28050.0463Gear 1 x 45T
81341000025004		1
29050.0462Washer 20.5 x 28 x 0.2
81823028001004		1
30030.0009Bearing 6004 DDU
81331000122004		1
31050.0066Oil bearing 28 x 38 x 7
81331000125004		1
32050.0078Ring 41.5 x 36.5 x 1.5
81823541501004		1
33050.1014Gear switch assembly
81321200007004		1
34020.0329Screw M4 x 16
81821004019004		1
35050.0082Screw holder
81826000029004		1
36050.1005AClutch shaft
81321000010004		1
37032.0211Casing pin 4 x 12
81825004001004		1
38KSP.MSScrew M5 x 10
81821005029004		3
39KSP.M/3Tank holder
81681300012004		1
40060.1019Gear box set
81251100010004		1
40A055.0008GGear casing
81251000036004		1
40B055.0028GSlide
81661000031004		1
40C020.0003Pin
81825000033004		2
40D020.0106Screw M6 x 16
81821000002004		6
40E020.0111Washer M6 DIN7980
81823000001004		6
41050.0074Rack - 1.5X39T
81231500011004		1
42030.0012Screw motorhousing
81821000092004		1
43050.0068Bearing 61906 DDU
81331000126004		1
44020.0146Screw M6 x 25
81821000048004		1
45020.0111Washer M6 DIN7980
81823000001004		1
46050.0077Key 6 x 6 x 12
81321800040004		1
47050.0461Spindle drive shaft 34 x 146 #3
81311000018004		1
MOTORBODYCASE
NoSearch codeDescQty
1060.1001ZMotor220V ECO.60S+ unit ext. cable
81611010035004		1
50020.0298Motor cable clamp
81433000023004		1
51020.0086/ZRail set Aluminium (L/R) Z-profile
81661300031004		1
52020.0086/ZRail set Aluminium (L/R) Z-profile
81661300031004		1
53100.0022Bolt M5 x 20
81822004006004		6
54020.0101Panel screw BKVZ M4 x 8
81821004001004		4
55055.0002Rear panel 220V
81831320009004		1
56050T.1028Speed control unit 220V
81411020016004		1
57020.0081Screw BKVZ M6 x 16
81821006001004		1
58050.0030End cover Ø36 X 3
81231300016004		1
59050.0063Bearing 6804 ZZ
81331000123004		1
60040.0023Washer
81823000108004		1
61020.0231Screw M5 x 6
81821005026004		4
62020.0056/ZFrame aluminium rail (Z)
81631000041004		1
63060S.B085Motor cable complete
81431200022004		1
63A020.0041Coupling nut PG9 (motor cable)
81824609002004		2
63B050.0586Cable housing
81433000002004		1
63CCS050.0341/2Cable set 1608 ->
81431000020004		1
64032.0127AAdapter ring v2
81823600019004		1
65030.0027Washer 28 x 34.5 x 0.2 mm
81823000107004		1
66020.0315XArm for capstan
81651300022004		3
67020.0061/ZCapstan hub assembly
81651000013004		1
68020.0182Grounding screw/washer/nut
81829000002004		1
69EU030.B125Main cable set 220V EU
81431520002004		1
69AU020.0036/AUMain cable 220V AU
81431520005004		1
69UK020.0036/UKMain cable 220V UK
81431520004004		1
70020.0031Coupling nut PG11 (main cable)
81824611001004		1
71020.0037Cable clamp complete
81433000008004		1
72032T.0009Spacer
81826500004004		1
73060S+.B050ZPanel plate assembly 220V
81411220023004		1
73A060+.0107Front panel ECO.60S+
81831000130004		1
73B030E.0091/YMotor switch 220V (5-pin) yellow
81641120003004		1
73C020.0011-1Magnet Switch
81641400010004		1
73D020.0016Fuse holder
81422300001004		1
73E020.0016BFuse
81422300008004		1
73F020.0206LED indicator set
81422800002004		1
73G060.1009Potentiometer
81421800011004		1
74020.0183Screw M4 x 20
81821004025004		4
75055.1041Gyroscope PCB set
81411500011004		1
76020.0146Screw M6 x 25
81821000048004		4
77020.0111Washer M6 DIN7980
81823000001004		4
78020.0112Washer M6
81823006003004		4
79060.1022Magnet 220V
81621020009004		1
80100.1008Sensor
81422000006004		1
MOTORBODYCASE
NoSearch codeDescQty
200060S+.2010Case for ECO.60S+ with sticker
81843500040004		1
201KSP.Q2Coolant tank Quick Connect 2015
81681300010004		1
202MEBGLV.MEuroboor working gloves size M
91411000020004		1
202LEBGLV.LEuroboor working gloves size L
91411000021004		1
202XLEBGLV.XLEuroboor working gloves size XL
91411000022004		1
203SAF.400Safety chain (1 mtr) with lock
81841300006004		1
204SAF.100Safety goggles
81841500002004		1
205SAF.200Ear plugs
81841500001004		1
206KSP.PPin and knob for cooling tank
81682400005004		1
207IMB.US2.5Allen key 2.5 mm
81842600006004		1
208IMB.US4Allen key 4.0 mm
81842600004004		1
209IMB.US5Allen key 5.0 mm
81842600005004		1
210DRIFT3Drift MT3
81843000016004		1
211SAF.MDMBSafety guard for ECO.50
81841000019004		1
212020.0223Screw M5 x 10
81821000127004		2
213IMC.30/19-NArbor MT3 - 19.05 (3/4") Weldon
31125332001004		1
