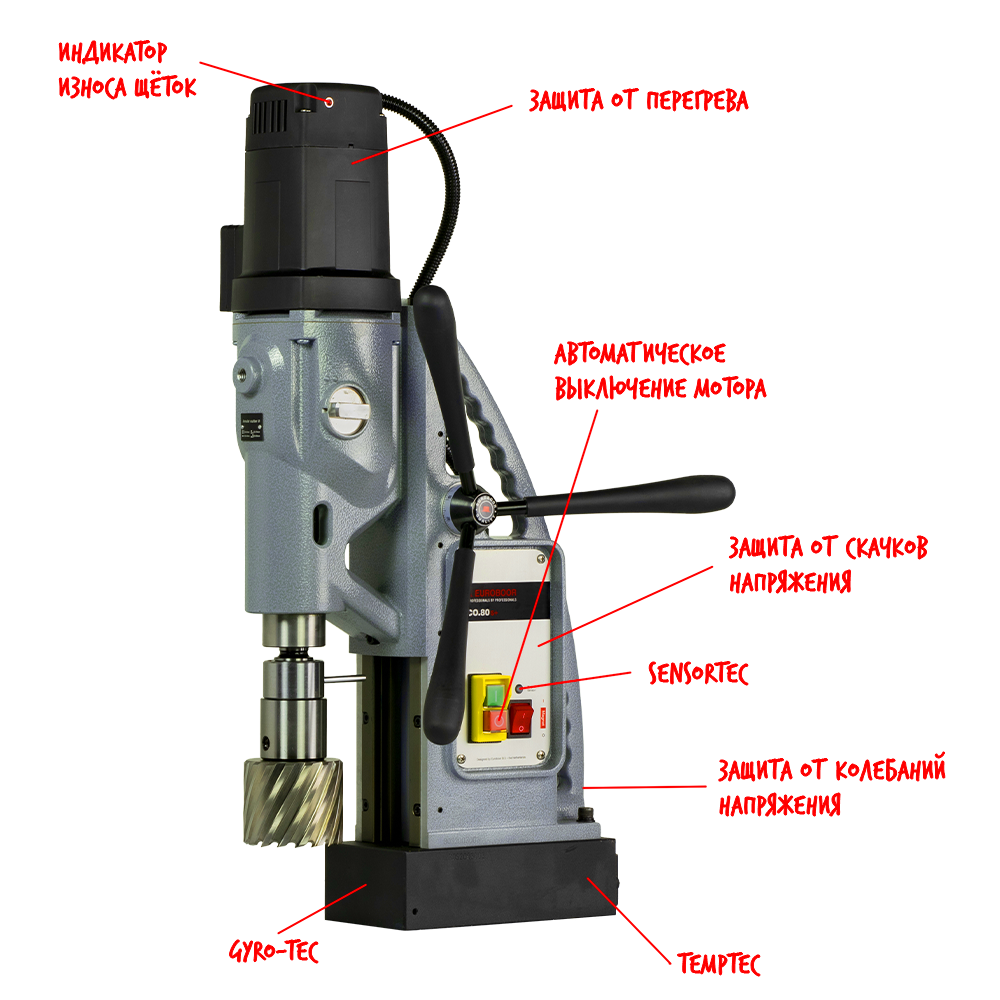

ECO.80S+

Magnetic drilling machine, 80 mm, 220 V.

Magnetic drilling machine, annular cutters max. dia 80 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction clockwise.

Order code

ECO.80S+

EAN code

8720143712432

Get a quote

Thanks to its four-speed oil lubricated gearbox our portable Euroboor ECO.80S+ magnetic core drilling machine is able to tackle twist drilling tasks just as easily as big diameter annular cutter challenges. The innovative electronics in this magnetic core drilling machine offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs.

Accessories

Tab Properties
Tab Fact sheet
Tab Package contents
Tab Parts list / manual

Tab Properties

Automatic shut off

Carbon brush wear indicator

Gyro-Tec

Overload protection

Power fluctuation protection

2 way magnet (TempTec)

Overheat protection

Magnet LED indicator

Power surge protection

Oil lubricated gearbox

Smart Restart

Connection
minimum diameter annular cutters (inch)	1/2
minimum diameter annular cutters (millimeter)	12
maximum diameter annular cutters (inch)	3 1/8
maximum diameter annular cutters (millimeter)	80
minimum diameter countersinking (inch)	3/8
minimum diameter countersinking (millimeter)	10
maximum diameter countersinking (inch)	3 3/8
maximum diameter countersinking (millimeter)	85
minimum diameter twist drills (inch)	1/16
minimum diameter twist drills (millimeter)	1
maximum diameter twist drills (inch)	1 1/4
maximum diameter twist drills (millimeter)	32
connection 1 model	inside
connection 1 size (inch)	1 1/4
connection 1 size (millimeter)	31.75
connection 2 morse taper / drill chuck class	MT3
connection 1 type	Weldon
connection 2 model	outside
connection 2 type	morse taper
Dimensions
stroke (inch)	10 1/4
stroke (millimeter)	260
magnet length (inch)	8 11/16
magnet length (millimeter)	220
magnet width (inch)	4 5/16
magnet width (millimeter)	110
magnet height (inch)	2 1/2
magnet height (millimeter)	64
minimum height (inch)	20 1/16
minimum height (millimeter)	510
maximum height (inch)	27 15/16
maximum height (millimeter)	710
length (inch)	14 3/8
width (inch)	12 3/6
length (millimeter)	365
width (millimeter)	310
height (inch)	27 15/16
height (millimeter)	710
Properties
rotation direction	clockwise
type of gear box lubrication	oil
magnetic force (kilogram)	3000
magnetic force (pound)	6615
electric rotation speed adjustment	yes
nett weight (pound)	60.2
nett weight (kilogram)	27.3
system of measurement	mm (metric)
application	drilling, countersinking
Performance
no-load minimum rotation speed gear 1 (rotations per minute)	150
no-load maximum rotation speed gear 1 (rotations per minute)	650
no-load rotation speed gear 1 (rotations per minute)	150
no-load rotation speed gear 2 (rotations per minute)	300
load rotation speed gear 2 (rotations per minute)	200
no-load rotation speed gear 3 (rotations per minute)	415
load rotation speed gear 3 (rotations per minute)	275
no-load rotation speed gear 4 (rotations per minute)	650
load rotation speed gear 4 (rotations per minute)	400
Supply
motor power (Ampère)	15.4
motor power (Watt)	1700
total power (Ampère)	16.4
total power (Watt)	1800
power supply frequency (Hertz)	50 - 60
power supply current	AC
power supply connection	plug according CEE 7/7
power supply source	-
power supply type	-
power supply tension (Volt)	220 - 240

Tab Fact sheet

Download fact sheet

Tab Package contents

1x metal case
1x magnetic drilling machine ECO.80S+
3x (Capstan Hub) handles
1x spindle holder MT3 - Weldon 31.75 mm (1 1/4") including cooling/lubrication ring (IMC.30/32-N)
1x adapter Weldon 31.75 naar 19.05 mm (1 1/4" to 3/4") (IBK.MC3-MC2)
1x drift key
1x side handle
1x lubrication/cooling system
1x Allen key 2.5 mm (3/32")
1x Allen key 4 mm (5/32")
1xAllen key 5 mm (13/64")
1x Allen key 6 mm (14/64")
1x protection guard
1x safety chain
1x ear protection
1x safety goggles
1x safety gloves
1x user manual

Manual

Download Manual

MOTORBODYCASE

2 13.045540796963945 3.806907671292184 3 3 13.045540796963945 12.988273231467451 3 4 36.67347832433221 17.54163338732673 3 5 13.136768354984675 16.795180902759636 3 6 13.2279959130054 19.930281337941434 3 8 45.7962341264049 20.004926586398142 3 7 9.122755802072689 23.43860801540678 3 9 7.389432199678879 39.26340068822919 3 29 81.01007152240548 27.39480618361238 3 29 89.67668953437453 27.84267767435264 3 10 13.926819207338504 53.285119886093554 3 11 2.1221819744515815 59.25392150266209 3 12 35.94445719227367 54.370356543651475 3 13 36.87291180609623 63.920439130161114 3 14 35.281275325257546 82.80355697166881 3 15 77.99018756109562 1.0852366575579138 2 16 78.12282393449885 3.6898046356969063 2 17 78.12282393449885 5.7517542850569425 2 18 78.52073305470853 8.68189326046331 3 19 78.65336942811174 13.782505550985505 3 20 77.59227844088595 17.038215523659243 3 21 77.72491481428918 20.51097282784457 3 22 51.065003760241176 50.354980910687196 3 23 43.637366849660644 55.45559320120938 2 24 47.218548931547694 56.43230619301151 2 25 49.20809453259605 27.782058433482593 3 26 49.20809453259605 31.797434066446872 3 27 48.942821785789604 35.37871503638799 2 28 48.942821785789604 37.766235683015395 3 29 75.07218734622471 26.69682177592468 3 30 71.35836889093443 37.874759348771185 3 31 69.76673241009574 48.18450759557137 3 32 81.30609689617623 30.820721074644748 3 33 76.00064196004726 43.409466302316545 3 34 79.84709678874076 43.083895305049175 2 35 90.72327940780511 30.38662641162158 3 36 90.060097540789 35.70428603365536 3 37 83.16300612382136 43.192418970804965 3 38 82.8977333770149 46.66517627499029 2 39 83.03036975041813 48.944173255861905 2 31 79.31655129512787 48.944173255861905 3 24 94.96764335670828 47.85893659830399 2 23 97.48773445136953 49.16122058737349 2 40 93.24337050246638 44.928797622897626 3 41 56.23782232296691 57.951637513592594 2 42 55.83991320275724 60.66472915748737 2 43 68.30773230266028 89.85759524579525 3 44 69.36882328988607 96.04344419387536 3 45 51.330276507047635 72.819379722136 3 46 56.76836781657981 82.36946230864565 3 47 56.63573144317658 87.79564559643521 2 48 48.412276292176706 67.71876743161381 3 49 51.99345837406375 69.0210514206833 3 50 97.48773445136953 56.5408298587673 3 51 90.85591578120834 64.1374864616727 2 52 91.91700676843413 66.30795977678852 2 53 92.04964314183735 75.20690036876341 3 54 90.72327940780511 79.22227600172769 3 55 78.91864217491819 63.37782080138216 3 56 63.400186486741006 85.84221961283097 3 57 47.88173079856381 58.602779508127334 2 56 50.53445826662829 57.51754285056943 2 58 59.55373165804752 86.60188527312151 3 59 83.29564249722458 88.88088225399314 3 48 86.87682457911163 83.0206043031804 3 49 82.36718788340201 81.93536764562248 3 28 49.34073090599927 47.099270938013454 3

No	Search code	Desc	Qty
2	050.0106	Screw 4.8 x 45 81821004803004	4
3	100.0322Z	End cover 81231300019004	1
4	P020.0278	Led indicator red alarm 220V 81422820001004	1
5	032.0116	Screw M4 x 16 81821004201004	2
6	100.4006	Control unit top ECO.100 110V / 220V 81411030003004	1
7	080.1010CK-80S+	Housing not incl. Carbon brush set 81231200035004	1
8	Carbon.100+	Carbon brush set 220V 81261320010004	1
9	080.0661A	T/S-switch-cover 81641500025004	1
10	080.0661B	T/S-switch-housing 81641500028004	1
11	35H.0051_1	Screw M6 x 35 81821006014004	4
12	100.1004-CK-1	Field 220V 81210020011004	1
13	100.0391	Baffle 81231700004004	1
14	100S.1011	Armature 220V 81220020013004	1
15	032.0166	Circlip 472/28/1.2 81823828002004	1
16	050.9070	Bearing 6001V V 81331000137004	1
17	100S.0064	Bearing 15 x 23 x 3 81331000033004	1
18	100S.0401X	Inner gear plate 81231000009004	1
19	100S.0071	O-ring 106 x 1.8 81811200017004	1
20	100.0571	Circlip 471 11 x 1 81823811001004	1
21	100.0458	Gasket 81811500001004	1
22	100S.1006	Clutch shaft 81321000011004	1
23	020.0329	Screw M4 x 16 81821004019004	2
24	050.0082	Screw holder 81826000029004	2
25	100.0426	Circlip 471 24 x 1.2 81823824001004	1
26	100.4324	Drive shaft gear 1.5 x 38T 81311000016004	1
27	100.0441	Adapter ring 81823600008004	6
28	100.0446	Bearing 6005 81331000027004	2
29	040.0161	Needle bearing HK0810 81331000013004	3
30	100.4312	Friction clutch complete assembly (7T) 81322000008004	1
31	080.0506	Bearing 6000 81331000021004	2
32	100.4332	Axle 2 12T+17T 81321400011004	1
33	100.4496	Key 5 x 5 x 28 81321800029004	1
34	100.4491	Double gear 1 25T+39T 81341000020004	1
35	100.4320	Double gear 2 36T+41T 81341200007004	1
36	100.4334	Axle 3 (13T) 81321400012004	1
37	080.0526	Key 6 x 6 x 40 81321800006004	1
38	080.4486	Washer 14 x 22 x 1 81823014002004	1
39	080.0481	Needle bearing 81331000020004	1
40	100S.1007	Clutch shaft 81321000012004	1
41	100.0549	Casing pin 81825000004004	1
42	080S.1017	Gear box 81251100004004	1
43	100S.0067	Wool felt ring 45 x 58 x 5 81811204501004	1
44	100S.0066	Bearing NKX-45 81331000031004	1
45	100S.0065	Bearing 35 x 42 x 8 81331000034004	1
46	080.0431	Spindle key 6 x 6 x 20 81321800004004	1
47	100.0901	Spindle drive shaft 81311000011004	1
48	050.0078	Ring 41.5 x 36.5 x 1.5 81823541501004	2
49	100S.1014	Gear switch 81321200004004	2
50	100S.0076	Rack 1.5 x 58T 81231500014004	1
51	020.0003	Pin 81825000033004	2
52	020.0106	Screw M6 x 16 81821000002004	8
53	020.0106E	Bolt M6 x 14 81822006008004	2
54	020.0111	Washer M6 DIN7980 81823000001004	10
55	100S.0462X	Slide 81661000032004	1
56	020.0111	Washer M6 DIN7980 81823000001004	2
57	020.0146	Screw M6 x 25 81821000048004	1
58	020.0146B	Screw M6 x 35 81821006017004	1
59	100.0459	Screw BK 5.5 x 45 81821005500004	4

MOTORBODYCASE

No	Search code	Desc	Qty
1	080S.1001	Motor 220V ECO.80S+ 81611020039004	1
60	KSP.MS	Screw M5 x 10 81821005029004	3
61	020.0298	Motor cable clamp 81433000023004	1
62	KSP.M/3	Tank holder 81681300012004	1
63	020.0101	Panel screw BKVZ M4 x 8 81821004001004	8
64	080.0016BX.5A	Rear panel 220V 81831320010004	1
65	080.1028	Speed control unit 220V 81411020062004	1
66	100.0022	Bolt M5 x 20 81822004006004	12
67	100.0193A	Aluminium rail (L) 22 x 18.5 x 442.5 81661300033004	1
68	100.0193B	Aluminium rail (R) 22 x 18.5 x 442.5 81661300035004	1
69	020.0081	Screw BKVZ M6 x 16 81821006001004	1
70	020.0077H	End plate black 81231600016004	1
71	100S.1002	Frame 81631000019004	1
72	020.0516	Screw M5 x 5 81821000118004	6
73	080.1010A	Motor cable 81431200024004	1
73A	020.0041	Coupling nut PG9 (motor cable) 81824609002004	2
73B	CS100.0341/2	Cable set 1608 -> 81431000022004	1
74	100.0101H	Capstan hub assembly black 81651000017004	1
75	020.0314X	Arm for capstan 81651300016004	3
76	020.0182	Grounding screw/washer/nut 81829000002004	1
77EU	030.B125	Main cable set 220V EU 81431520002004	1
77AU	020.0036/AU	Main cable 220V AU 81431520005004	1
77UK	020.0036/UK	Main cable 220V UK 81431520004004	1
78	020.0031	Coupling nut PG11 (main cable) 81824611001004	1
79	020.0037	Cable clamp complete 81433000008004	1
80	080S+.B050Z	Front panel set 220V 81411220040004	1
80A	080S.0016BX	Front panel ECO.80S+ 81831000136004	1
80B	030E.0091/Y	Motor switch 220V (5-pin) yellow 81641120003004	1
80C	020.0011-1	Magnet Switch 81641400010004	1
80D	020.0206	LED indicator set 81422800002004	1
80E	020.0257	Capacitance 81421300010004	1
81	055.1041L	Gyroscope PCB set 81411500003004	1
82	080.0015D	Plastic cover 81631500019004	1
83	080.0015C	Screw M16 x 33 81821000043004	1
84	B60.0063	Inner hex bolt 82822100014004	2
85	080.0015AX	Magnet spring ball 81824000052004	1
86	100.0006	Screw SS M8 x 25 81821008001004	4
87	100.0031	Washer M8 81823008001004	4
88	020.0305	Washer M8 81823008003004	4
89	100.1022	Magnet 220V 81621010024004	1
90	100.1008	Sensor 81422000006004	1

MOTORBODYCASE

No	Search code	Desc	Qty
200	100S.0203S	Case 81843500047004	1
201	100S.2019	Coolant tank 81681300009004	1
202M	EBGLV.M	Euroboor working gloves size M 91411000020004	1
202L	EBGLV.L	Euroboor working gloves size L 91411000021004	1
202XL	EBGLV.XL	Euroboor working gloves size XL 91411000022004	1
203	SAF.400	Safety chain (1 mtr) with lock 81841300006004	1
204	SAF.100	Safety goggles 81841500002004	1
205	SAF.200	Ear plugs 81841500001004	1
206	KSP.P	Pin and knob for cooling tank 81682400005004	1
207	IMB.US2.5	Allen key 2.5 mm 81842600006004	1
208	IMB.US4	Allen key 4.0 mm 81842600004004	1
209	IMB.US5	Allen key 5.0 mm 81842600005004	1
210	IMB.US6	Allen key 6.0 mm 81842600008004	1
211	100S.0002	Side handle M12 81631600004004	1
212	DRIFT3	Drift MT3 81843000016004	1
213	080.2009	Spindle MT3 31.75 mm Weldon (1 1/4") 81311400004004	1
214	SAF.MDM	Safety guard for ECO.100/4 81841000017004	1
215	020.0223	Screw M5 x 10 81821000127004	2
216	IBK.3219	Reducing ring Weldon 31.75 - 19.05 mm 31107370001004	1
