Euroboor Type J Cylinder – Rotary Burr

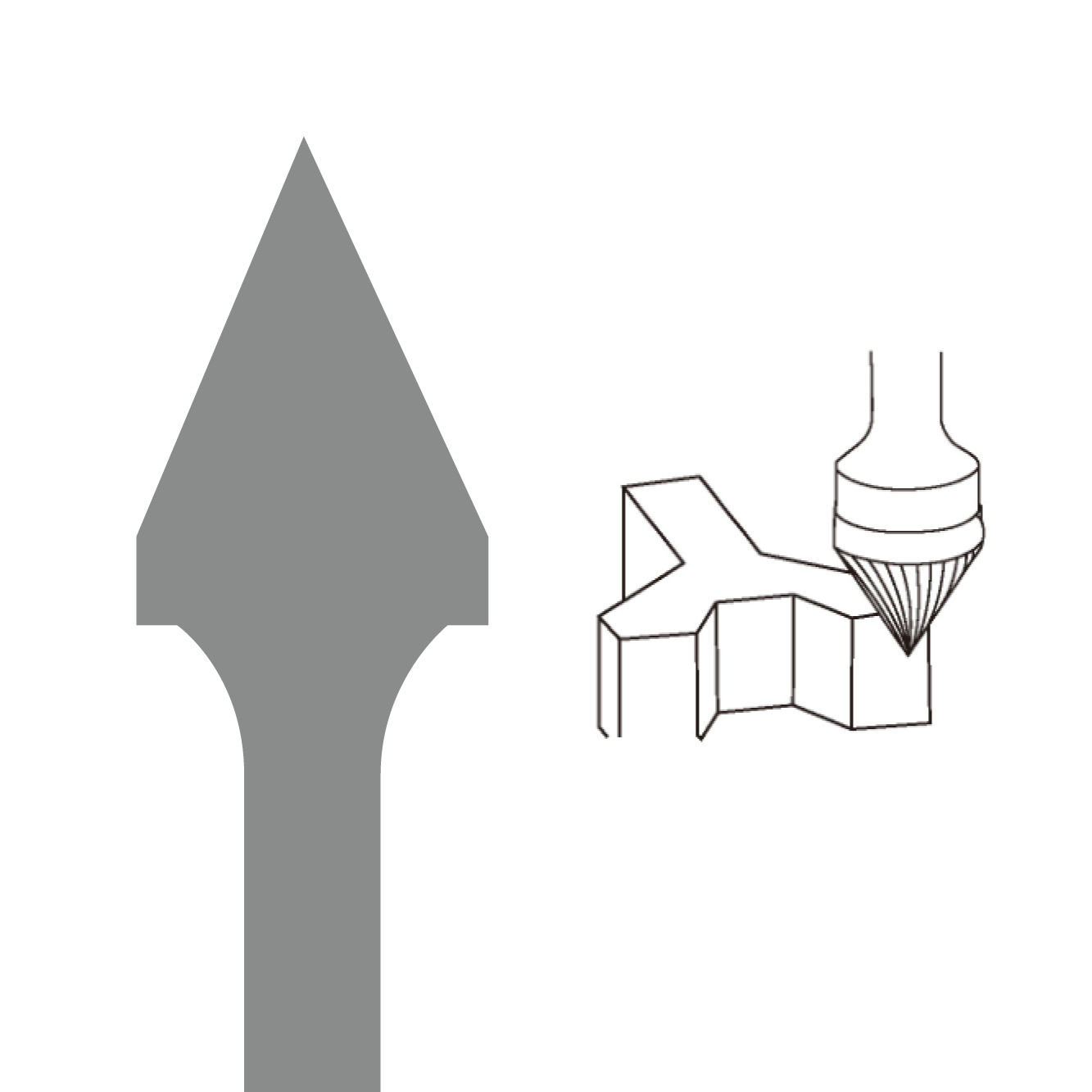

60 degree cone burr
Euroboor carbide rotary burrs are available in different cuts, models and sizes (see Technical data below). Your choice depends on which material you have to work on and what finish you need.

Applications:
Cutting out holes, deburring, leveling, milling out, surfacing, smoothing welds and shaping

Type J is available in:
– Single Cut: Ideal for; Cast iron, Cast steel, Unhardened steels, Low alloy steels, Stainless steel, Brass, Bronze/Copper
– Double Cut: Ideal for; Cast iron, Cast steel, Unhardened steels, Low alloy steels, Stainless steel, Brass, Bronze/Copper


Contact us

Properties

Connection
connection 1 modeloutside
connection 1 size (inch)1/4, 15/64
connection 1 size (millimeter)6, 6.5
connection 1 typestraight shank

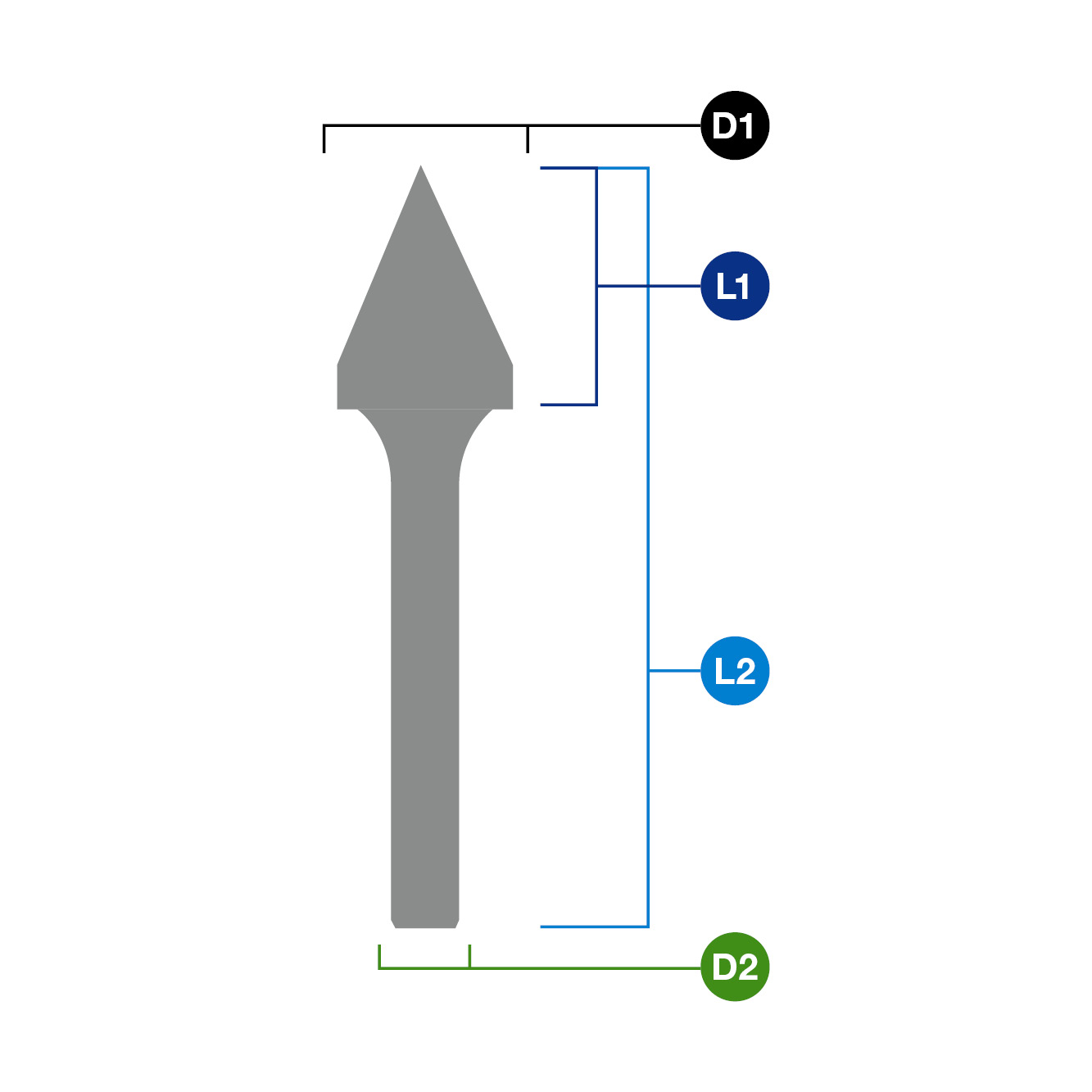

Dimensions
length shaft (inch)1-49/64, 1-47/64, 1-3/4
length shaft (millimeter)44.2, 44.3, 44.6, 44.8
rotary burr teeth typedouble cut, diamond cut, single cut
diameter head (millimeter)6, 10, 12, 16
diameter head (inch)5/8, 15/32, 15/64, 25/64
diameter shaft (millimeter)6
diameter shaft (inch)15/64
burr shape60 degree cone
rotary burr modelJ
length head (inch)17/32, 13/64, 11/32, 13/32
length head (millimeter)5.2, 8.7, 10.4, 13.8
length (inch)2-5/32, 1-31/32, 2-9/32, 2-5/64
length (millimeter)50, 53, 55, 58
Properties
materialtungsten carbide with 9% cobalt
system of measurementmm (metric)
applicationgrinding

Variations

No.length shaft (inch)length shaft (millimeter)rotary burr teeth typediameter head (millimeter)diameter head (inch)length head (inch)length head (millimeter)materiallength (millimeter)connection 1 size (inch)connection 1 size (millimeter)
57228060600004
RBS.J0606		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 44.8teeth type (Tt): single cutdiameter head (Dh / mm): 6diameter head (Dh / inch): 15/64length head (Lh / inch): 13/64length head (Lh / mm): 5.2material (Mtr): length (L / mm): 50connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
57228100600004
RBS.J1006		length shaft (Ls / inch): 1-47/64length shaft (Ls / mm): 44.3teeth type (Tt): single cutdiameter head (Dh / mm): 10diameter head (Dh / inch): 25/64length head (Lh / inch): 11/32length head (Lh / mm): 8.7material (Mtr): length (L / mm): 53connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
57228120600004
RBS.J1206		length shaft (Ls / inch): 1-3/4length shaft (Ls / mm): 44.6teeth type (Tt): single cutdiameter head (Dh / mm): 12diameter head (Dh / inch): 15/32length head (Lh / inch): 13/32length head (Lh / mm): 10.4material (Mtr): length (L / mm): 55connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
57228160600004
RBS.J1606		length shaft (Ls / inch): 1-47/64length shaft (Ls / mm): 44.2teeth type (Tt): single cutdiameter head (Dh / mm): 16diameter head (Dh / inch): 5/8length head (Lh / inch): 17/32length head (Lh / mm): 13.8material (Mtr): length (L / mm): 58connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
57428060601004
RB.J0606		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 44.8teeth type (Tt): double cutdiameter head (Dh / mm): 6diameter head (Dh / inch): 15/64length head (Lh / inch): 13/64length head (Lh / mm): 5.2material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 50connection size 1 (ConnS_1 / inch): 1/4connection size 1 (ConnS_1 / mm): 6.5
57428100601004
RB.J1006		length shaft (Ls / inch): 1-47/64length shaft (Ls / mm): 44.3teeth type (Tt): double cutdiameter head (Dh / mm): 10diameter head (Dh / inch): 25/64length head (Lh / inch): 11/32length head (Lh / mm): 8.7material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 53connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
57428120601004
RB.J1206		length shaft (Ls / inch): 1-3/4length shaft (Ls / mm): 44.6teeth type (Tt): double cutdiameter head (Dh / mm): 12diameter head (Dh / inch): 15/32length head (Lh / inch): 13/32length head (Lh / mm): 10.4material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 55connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
57428160601004
RB.J1606		length shaft (Ls / inch): 1-47/64length shaft (Ls / mm): 44.2teeth type (Tt): double cutdiameter head (Dh / mm): 16diameter head (Dh / inch): 5/8length head (Lh / inch): 17/32length head (Lh / mm): 13.8material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 58connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
57628100601004
RBD.J1006		length shaft (Ls / inch): 1-47/64length shaft (Ls / mm): 44.3teeth type (Tt): diamond cutdiameter head (Dh / mm): 10diameter head (Dh / inch): 25/64length head (Lh / inch): 11/32length head (Lh / mm): 8.7material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 53connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
57628120601004
RBD.J1206		length shaft (Ls / inch): 1-3/4length shaft (Ls / mm): 44.6teeth type (Tt): diamond cutdiameter head (Dh / mm): 12diameter head (Dh / inch): 15/32length head (Lh / inch): 13/32length head (Lh / mm): 10.4material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 55connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
57628160601004
RBD.J1606		length shaft (Ls / inch): 1-47/64length shaft (Ls / mm): 44.2teeth type (Tt): diamond cutdiameter head (Dh / mm): 16diameter head (Dh / inch): 5/8length head (Lh / inch): 17/32length head (Lh / mm): 13.8material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 58connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
