Carbide burrs

Carbide burrs

Measurement
  2. Products
  3. Grinding
  4. Carbide burrs
RB L
RB L
RB L
RB L
RB L
RB L

RB L

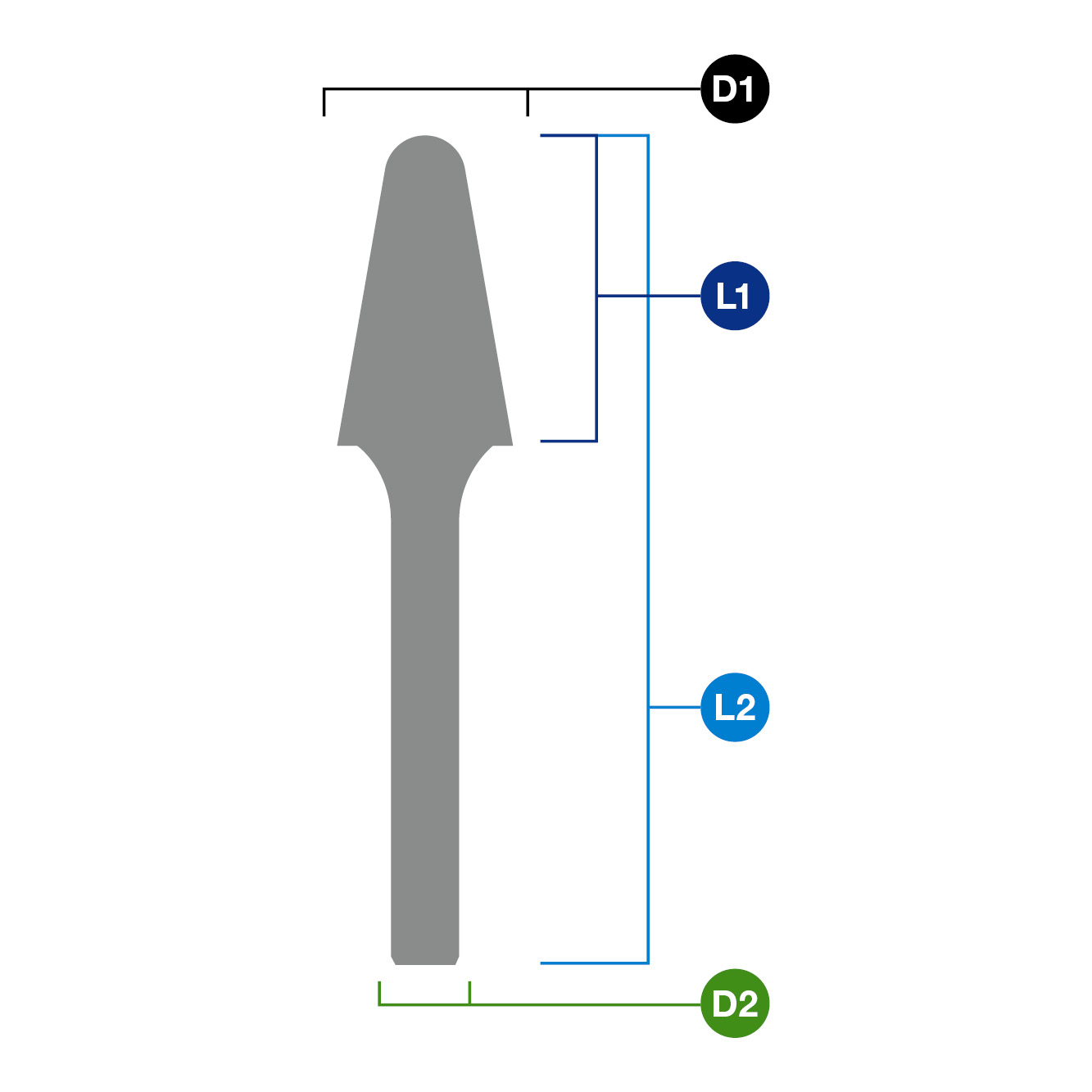

Rotary burr, burr shape L.

Rotary burr, model L.

rotary burr teeth type
diameter head (millimeter)
diameter head (inch)
diameter shaft (millimeter)
diameter shaft (inch)
length head (inch)
length head (millimeter)
length (inch)
length (millimeter)
Order
Order codeRB.L0303
EAN code8718375417652
Order
Order codeRB.L0606
EAN code8718375417669
Order
Order codeRB.L0806
EAN code8718375417676
Order
Order codeRB.L1006
EAN code8718375417683
Order
Order codeRB.L1206
EAN code8718375417690
Order
Order codeRB.L1606
EAN code8718375417706
Order
Order codeRBA.L0606
EAN code8720365555640
Order
Order codeRBA.L1006
EAN code8720365555657
Order
Order codeRBA.L1206
EAN code8720365555664
Order
Order codeRBD.L0806
EAN code8718375415085
Order
Order codeRBD.L1006
EAN code8718375415092
Order
Order codeRBD.L1206
EAN code8718375415115
Order
Order codeRBD.L1606
EAN code8718375415122
Order
Order codeRBDL.L1006
EAN code8720365555329
Order
Order codeRBDL.L1206
EAN code8720365555336
Order
Order codeRBS.L0303
EAN code8720365555008
Order
Order codeRBS.L0606
EAN code8720365555015
Order
Order codeRBS.L0806
EAN code8720365555022
Order
Order codeRBS.L1006
EAN code8720365555039
Order
Order codeRBS.L1206
EAN code8720365555046
Order
Order codeRBS.L1606
EAN code8720365555053
Order

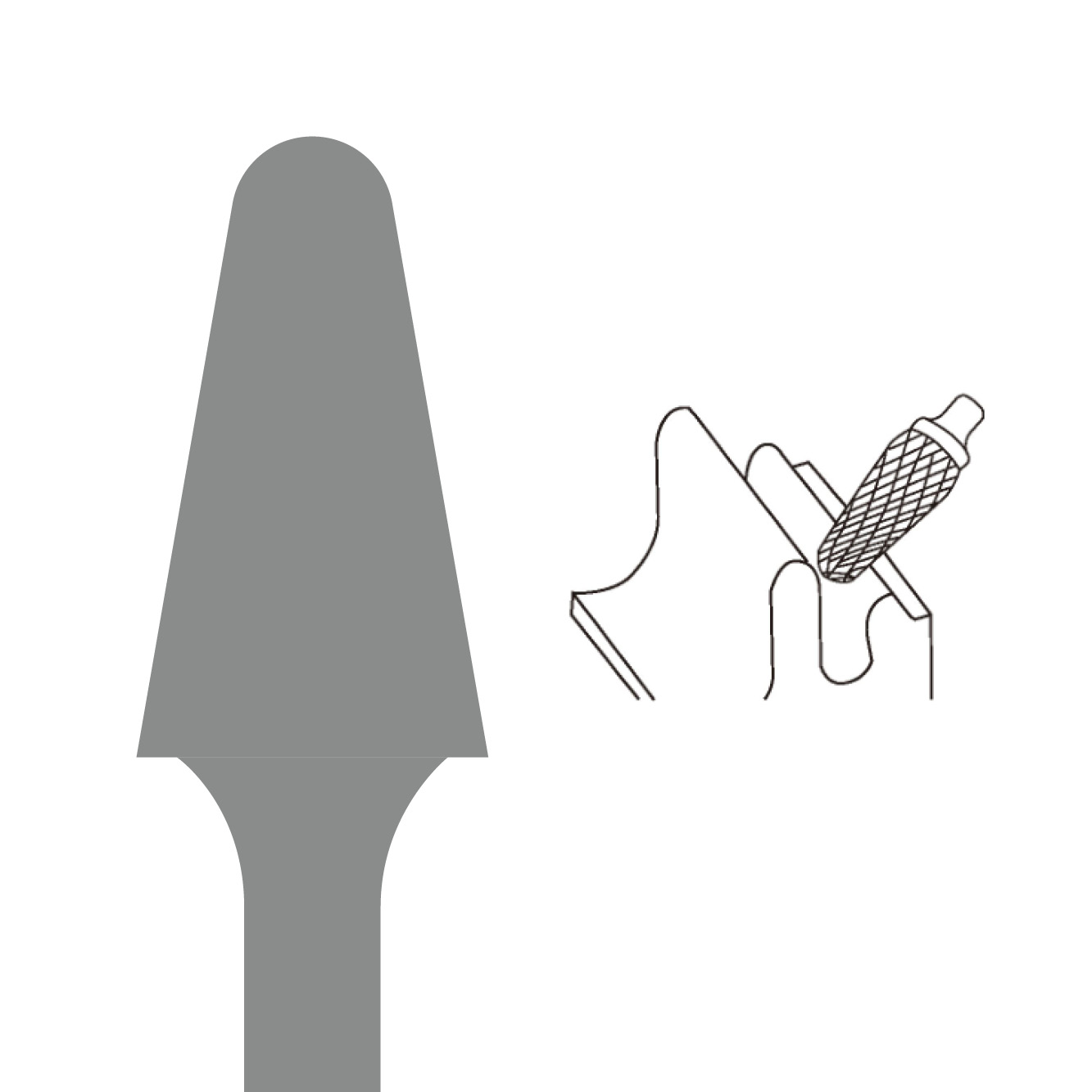

Euroboor Type L Cylinder – Rotary Burr
Ball nose cone burr
Euroboor carbide rotary burrs are available in different cuts, models and sizes (see Technical data below). Your choice depends on which material you have to work on and what finish you need.

Applications:
Cutting out holes, deburring, leveling, milling out, surfacing, smoothing welds and shaping

Type L is available in:
– Single Cut: Ideal for; Cast iron, Cast steel, Unhardened steels, Low alloy steels, Stainless steel, Brass, Bronze/Copper
– Double Cut: Ideal for; Cast iron, Cast steel, Unhardened steels, Low alloy steels, Stainless steel, Brass, Bronze/Copper
– Diamond Cut: Ideal for; Cast iron, Cast steel, Unhardened steels, Hardened steels, Low alloy steels, High alloy steels, Heat treated steels, Stainless steel, Titanium alloy, Brass, Bronze/Copper
– Alu Cut: Ideal for; Plastics, Aluminium, Zinc alloy


Contact us

Properties

Connection
connection 1 modeloutside
connection 1 size (inch)15/64, 7/64
connection 1 size (millimeter)3, 6
connection 1 typestraight shank
Dimensions
length shaft (inch)1-49/64, 1-11/16, 5-45/64, 1
length shaft (millimeter)38, 43, 45, 145
rotary burr teeth typedouble cut, diamond cut, single cut, aluminium cut
diameter head (millimeter)See table
diameter head (inch)See table
diameter shaft (millimeter)3, 6
diameter shaft (inch)15/64, 7/64
burr shapeball nosed cone
rotary burr modelL
length head (inch)See table
length head (millimeter)See table
length (inch)See table
length (millimeter)See table
Properties
materialtungsten carbide with 9% cobalt
system of measurementmm (metric)
applicationgrinding

Variations

No.length shaft (inch)length shaft (millimeter)rotary burr teeth typediameter head (millimeter)diameter head (inch)diameter shaft (millimeter)diameter shaft (inch)length head (inch)length head (millimeter)materiallength (millimeter)connection 1 size (inch)connection 1 size (millimeter)Quantity
57232030300004
RBS.L0303		length shaft (Ls / inch): 1length shaft (Ls / mm): 38teeth type (Tt): single cutdiameter head (Dh / mm): 3diameter head (Dh / inch): 7/64diameter shaft (Ds / mm): 3diameter shaft (Ds / inch): 7/64length head (Lh / inch): 1/2length head (Lh / mm): 13material (Mtr): length (L / mm): 38.5connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
57232060600004
RBS.L0606		length shaft (Ls / inch): 1-11/16length shaft (Ls / mm): 43teeth type (Tt): single cutdiameter head (Dh / mm): 6diameter head (Dh / inch): 15/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 45/64length head (Lh / mm): 18material (Mtr): length (L / mm): 61connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
57232080600004
RBS.L0806		length shaft (Ls / inch): 1-11/16length shaft (Ls / mm): 43teeth type (Tt): single cutdiameter head (Dh / mm): 8diameter head (Dh / inch): 5/16diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 55/64length head (Lh / mm): 22material (Mtr): length (L / mm): 65connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
57232100600004
RBS.L1006		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): single cutdiameter head (Dh / mm): 10diameter head (Dh / inch): 25/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 63/64length head (Lh / mm): 25material (Mtr): length (L / mm): 70connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
57232120600004
RBS.L1206		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): single cutdiameter head (Dh / mm): 12diameter head (Dh / inch): 15/32diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 1-3/32length head (Lh / mm): 28material (Mtr): length (L / mm): 73connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
57232160600004
RBS.L1606		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): single cutdiameter head (Dh / mm): 16diameter head (Dh / inch): 5/8diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 1-19/64length head (Lh / mm): 33material (Mtr): length (L / mm): 78connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
57432030301004
RB.L0303		length shaft (Ls / inch): 1length shaft (Ls / mm): 38teeth type (Tt): double cutdiameter head (Dh / mm): 3diameter head (Dh / inch): 7/64diameter shaft (Ds / mm): 3diameter shaft (Ds / inch): 7/64length head (Lh / inch): 1/2length head (Lh / mm): 13material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 38.5connection size 1 (ConnS_1 / inch): 7/64connection size 1 (ConnS_1 / mm): 3
57432060601004
RB.L0606		length shaft (Ls / inch): 1-11/16length shaft (Ls / mm): 43teeth type (Tt): double cutdiameter head (Dh / mm): 6diameter head (Dh / inch): 15/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 45/64length head (Lh / mm): 18material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 61connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
57432080601004
RB.L0806		length shaft (Ls / inch): 1-11/16length shaft (Ls / mm): 43teeth type (Tt): double cutdiameter head (Dh / mm): 8diameter head (Dh / inch): 5/16diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 55/64length head (Lh / mm): 22material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 65connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
57432100601004
RB.L1006		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): double cutdiameter head (Dh / mm): 10diameter head (Dh / inch): 25/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 63/64length head (Lh / mm): 25material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 70connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
57432120601004
RB.L1206		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): double cutdiameter head (Dh / mm): 12diameter head (Dh / inch): 15/32diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 1-3/32length head (Lh / mm): 28material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 73connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
57432160601004
RB.L1606		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): double cutdiameter head (Dh / mm): 16diameter head (Dh / inch): 5/8diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 1-19/64length head (Lh / mm): 33material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 78connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
57532100600004
RBDL.L1006		length shaft (Ls / inch): 5-45/64length shaft (Ls / mm): 145teeth type (Tt): double cutdiameter head (Dh / mm): 10diameter head (Dh / inch): 25/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 63/64length head (Lh / mm): 25material (Mtr): length (L / mm): 170connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
57532120600004
RBDL.L1206		length shaft (Ls / inch): 5-45/64length shaft (Ls / mm): 145teeth type (Tt): double cutdiameter head (Dh / mm): 12diameter head (Dh / inch): 15/32diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 1-3/32length head (Lh / mm): 28material (Mtr): length (L / mm): 173connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
57632080601004
RBD.L0806		length shaft (Ls / inch): 1-11/16length shaft (Ls / mm): 43teeth type (Tt): diamond cutdiameter head (Dh / mm): 8diameter head (Dh / inch): 5/16diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 55/64length head (Lh / mm): 22material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 65connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
57632100601004
RBD.L1006		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): diamond cutdiameter head (Dh / mm): 10diameter head (Dh / inch): 25/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 63/64length head (Lh / mm): 25material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 70connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
57632120601004
RBD.L1206		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): diamond cutdiameter head (Dh / mm): 12diameter head (Dh / inch): 15/32diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 1-3/32length head (Lh / mm): 28material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 73connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
57632160601004
RBD.L1606		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): diamond cutdiameter head (Dh / mm): 16diameter head (Dh / inch): 5/8diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 1-19/64length head (Lh / mm): 33material (Mtr): tungsten carbide with 9% cobaltlength (L / mm): 78connection size 1 (ConnS_1 / inch): 15/64connection size 1 (ConnS_1 / mm): 6
57832060600004
RBA.L0606		length shaft (Ls / inch): 1-11/16length shaft (Ls / mm): 43teeth type (Tt): aluminium cutdiameter head (Dh / mm): 6diameter head (Dh / inch): 15/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 45/64length head (Lh / mm): 18material (Mtr): length (L / mm): 61connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
57832100600004
RBA.L1006		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): aluminium cutdiameter head (Dh / mm): 10diameter head (Dh / inch): 25/64diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 63/64length head (Lh / mm): 25material (Mtr): length (L / mm): 70connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
57832120600004
RBA.L1206		length shaft (Ls / inch): 1-49/64length shaft (Ls / mm): 45teeth type (Tt): aluminium cutdiameter head (Dh / mm): 12diameter head (Dh / inch): 15/32diameter shaft (Ds / mm): 6diameter shaft (Ds / inch): 15/64length head (Lh / inch): 1-3/32length head (Lh / mm): 28material (Mtr): length (L / mm): 73connection size 1 (ConnS_1 / inch): connection size 1 (ConnS_1 / mm):
