Magnetic drilling machine, 40 mm, 220 V.

Magnetic drilling machine, annular cutters max. dia 40 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction clockwise.

EAN code8718375390061
Get a quote

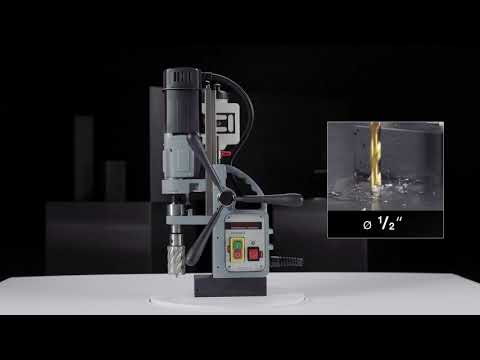

Our compact Euroboor ECO.40/2 is the perfect magnetic core drilling machine for annular cutters up to ø 40 mm and twist drills up to ø 13 mm. This magnetic core drilling machine has a powerful 1,050 W motor, integrated slide and two-speed gearbox. This portable drilling machine also benefits from integrated tool cooling and lubrication to make your drilling process more efficient.


Contact us

Key Charateristics
Integrated slide for:
High accuracy
Enlarged lifecycle
Minimal vibration
High-precision height adjustment for:
Low maintenance
Minimal wear correction

Accessories

Properties

ECO.40/2
Magnet LED indicator
Connection
minimum diameter annular cutters (inch)1/2
minimum diameter annular cutters (millimeter)12
maximum diameter annular cutters (inch)1 9/16
maximum diameter annular cutters (millimeter)40
minimum diameter countersinking (inch)3/8
minimum diameter countersinking (millimeter)10
maximum diameter countersinking (inch)1 3/4
maximum diameter countersinking (millimeter)45
minimum diameter twist drills (inch)1/16
minimum diameter twist drills (millimeter)1
maximum diameter twist drills (inch)1/2
maximum diameter twist drills (millimeter)13
connection 1 modelinside
connection 1 size (inch)3/4
connection 1 size (millimeter)19.05
connection 1 typeWeldon
Dimensions
stroke (inch)5 15/16
stroke (millimeter)150
magnet length (inch)6 5/16
magnet length (millimeter)160
magnet width (inch)3 1/8
magnet width (millimeter)80
magnet height (inch)1 5/8
magnet height (millimeter)42
minimum height (inch)15 9/16
minimum height (millimeter)395
maximum height (inch)21 1/4
maximum height (millimeter)540
length (inch)12 5/8
width (inch)8 1/4
length (millimeter)320
width (millimeter)210
height (inch)21 1/4
height (millimeter)540
Properties
rotation directionclockwise
type of gear box lubricationgrease
magnetic force (kilogram)1500
magnetic force (pound)3305
electric rotation speed adjustmentyes
nett weight (pound)25.4
nett weight (kilogram)11.5
system of measurementmm (metric)
applicationdrilling, countersinking
Performance
no-load rotation speed gear 1 (rotations per minute)720
load rotation speed gear 1 (rotations per minute)560
no-load rotation speed gear 2 (rotations per minute)1300
load rotation speed gear 2 (rotations per minute)560
Supply
motor power (Ampère)9.5
motor power (Watt)1050
total power (Ampère)10
total power (Watt)1100
power supply frequency (Hertz)50 - 60
power supply currentAC
power supply connectionplug according CEE 7/7
power supply sourcemains supply
power supply typeelectric
power supply tension (Volt)220 - 240

Fact sheet

Package contents

  • 1x case
  • 1x magnetic drilling machine ECO.40/2
  • 3x (Capstan Hub) handles
  • 1x lubrication/cooling system
  • 1x Allen key 2.5 mm (3/32")
  • 1x Allen key 4 mm (5/32")
  • 1x Allen key 5 mm (13/64")
  • 1x protection guard
  • 1x safety chain
  • 1x ear protection
  • 1x safety goggles
  • 1x safety gloves
  • 1x user manual
