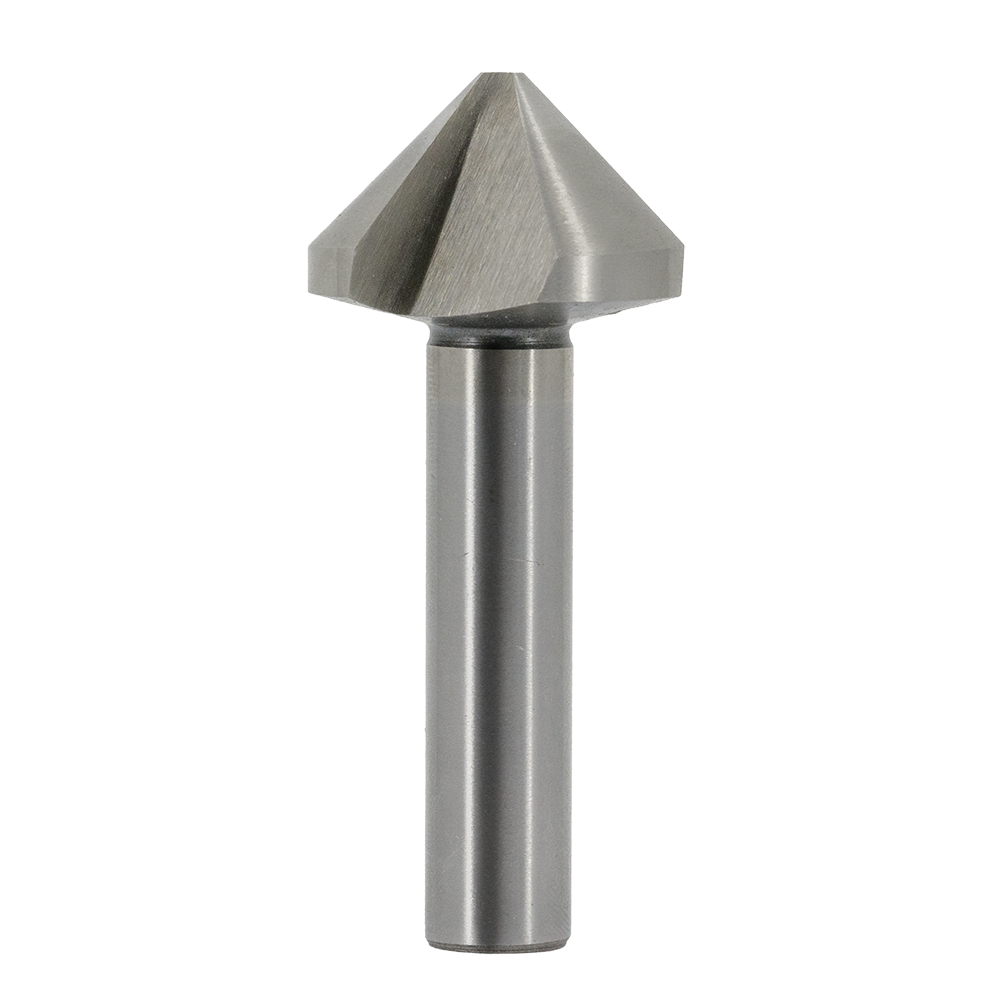

Countersink bit, straight shank.

Countersink bit, straight shank, material high speed steel with 5% cobalt.

outside / maximum diameter (millimeter)
Order
Order codeCSB.104
EAN code8719323602519
Order
Order codeCSB.124
EAN code8719323602526
Order
Order codeCSB.165
EAN code8719323608238
Order
Order codeCSB.205
EAN code8719323602533
Order
Order codeCSB.63
EAN code8719323602540
Order
Order codeCSB.83
EAN code8719323602557
Order

Countersinks are a precision tool made for creating clean, beveled edges in drilled holes, ensuring fastener heads sit flush or below the surface.

Ideal for metalworking, and industrial applications, offers exceptional control and accuracy, making them essential for machining professionals.


Contact us

Properties

Connection
connection 1 modeloutside
connection 1 size (inch)3/8
connection 1 size (millimeter)10
connection 1 typestraight shank
Dimensions
tool point type90 degrees
quantity of cutting edges or teeth3
length (inch)2 13/16
length (millimeter)71
outside / maximum diameter (inch)1 7/32
outside / maximum diameter (millimeter)See table
Properties
materialhigh speed steel with 5% cobalt
system of measurementmm (metric)
applicationcountersinking

Variations

No.outside / maximum diameter (millimeter)Quantity
52225306309004
CSB.63		diameter outside, -to (Do / mm): 6.3
52225308309004
CSB.83		diameter outside, -to (Do / mm): 8.3
52225310409004
CSB.104		diameter outside, -to (Do / mm): 10.4
52225312409004
CSB.124		diameter outside, -to (Do / mm): 12.4
52225316509004
CSB.165		diameter outside, -to (Do / mm): 16.5
52225320509004
CSB.205		diameter outside, -to (Do / mm): 20.5
