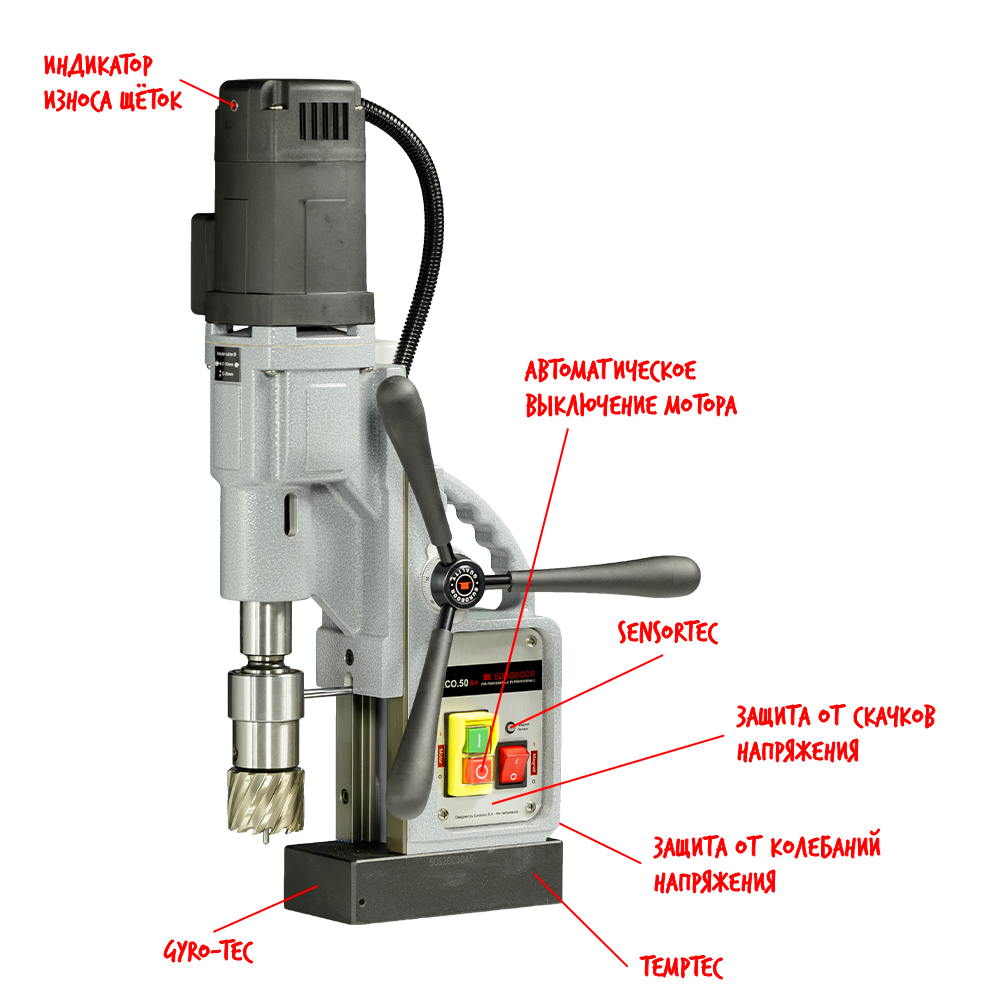

ECO.50S

Magnetic drilling machine, 50 mm, 220 V.

Magnetic drilling machine, annular cutters max. dia 50 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction clockwise.

Order code

ECO.50S

EAN code

8719274468721

Get a quote

The Euroboor ECO.50S magnetic core drilling machine converts maximum power through its two speed oil lubricated gearbox. This improves motor efficiency and lifetime of key components. This portable industrial magnetic core drilling machine has an integrated slide which ensures stable support, faster drilling times and more accurate hole sizing.

Accessories

Tab Properties
Tab Fact sheet
Tab Package contents
Tab Parts list / manual

Tab Properties

2 way magnet (TempTec)

Magnet LED indicator

Oil lubricated gearbox

Connection
minimum diameter annular cutters (inch)	7/16
minimum diameter annular cutters (millimeter)	12
maximum diameter annular cutters (inch)	2
maximum diameter annular cutters (millimeter)	50
minimum diameter countersinking (inch)	3/8
minimum diameter countersinking (millimeter)	10
maximum diameter countersinking (inch)	2 3/16
maximum diameter countersinking (millimeter)	55
minimum diameter twist drills (inch)	1/16
minimum diameter twist drills (millimeter)	1
maximum diameter twist drills (inch)	15/16
maximum diameter twist drills (millimeter)	23
connection 1 model	inside
connection 1 size (inch)	3/4
connection 1 size (millimeter)	19.05
connection 2 morse taper / drill chuck class	MT3
connection 1 type	Weldon
connection 2 model	outside
connection 2 type	morse taper
Dimensions
stroke (inch)	6 11/16
stroke (millimeter)	170
magnet length (inch)	6 5/8
magnet length (millimeter)	168
magnet width (inch)	3 5/16
magnet width (millimeter)	84
magnet height (inch)	1 5/8
magnet height (millimeter)	42
minimum height (inch)	6 5/16
minimum height (millimeter)	445
maximum height (inch)	24 3/16
maximum height (millimeter)	615
length (inch)	12 5/8
width (inch)	7 7/8
length (millimeter)	320
width (millimeter)	200
height (inch)	24 3/16
height (millimeter)	615
Properties
rotation direction	clockwise
type of gear box lubrication	oil
magnetic force (kilogram)	1700
magnetic force (pound)	3305
electric rotation speed adjustment	yes
nett weight (pound)	26.5
nett weight (kilogram)	12
system of measurement	mm (metric)
application	drilling, countersinking
Performance
no-load minimum rotation speed gear 1 (rotations per minute)	235
no-load maximum rotation speed gear 1 (rotations per minute)	690
no-load rotation speed gear 1 (rotations per minute)	235
no-load rotation speed gear 2 (rotations per minute)	690
load rotation speed gear 2 (rotations per minute)	415
Supply
motor power (Ampère)	11.4
motor power (Watt)	1250
total power (Ampère)	11.8
total power (Watt)	1300
power supply frequency (Hertz)	50 - 60
power supply current	AC
power supply connection	plug according CEE 7/7
power supply source	-
power supply type	-
power supply tension (Volt)	220 - 240

Tab Fact sheet

Download fact sheet

Tab Package contents

1x case
1x magnetic drilling machine ECO.50S
3x (Capstan Hub) handles
1x lubrication/cooling system
1x spindle holder MT3 - 19,05 (3/4"), including cooling/lubrication ring (IMC.30/19-N)
1x drift key
1x Allen key 2.5 mm (3/32")
1x Allen key 4 mm (5/32")
1x Allen key 5 mm (13/64")
1x protection guard
1x safety chain
1x ear protection
1x safety goggles
1x safety gloves
1x user manual

Manual

Download Manual

MOTORBODYCASE

No	Search code	Desc	Qty
2	050.0106	Screw 4.8 x 45 81821004803004	8
3	050.0111	End cover 81231300003004	1
4	050.1009CK-50	Housing not incl. Carbon brush set 81231200033004	1
5	050.0147	Carbon brush set 220V 81261320002004	1
6	050.0587	Screw 5 x 30 81821004004004	4
7	050.1013-CK	Field 220V 81210020012004	1
8	020.0024	Screw M4 x 60 82821004002004	2
9	050.0261	Baffle 81231700003004	1
10	050.0181	Armature 220V 81220020005004	1
11	032.0166	Circlip 472/28/1.2 81823828002004	1
12	050.9070	Bearing 6001V V 81331000137004	1
13	050.0064	Oil bearing 15 x 21 x 3 81331000124004	1
14	050.0236/Y	Inner gear plate 81231000021004	1
15	040.0161	Needle bearing HK0810 81331000013004	3
16	032.0176	Circlip 471/10/1 81823810001004	1
17	050.0071	O-ring 82 x 1.8 81811282001004	1
18	050.0207	Gasket middle 81811500004004	1
19	050.0252	Gear assembly 81341500020004	1
20	050.0171	Gear 34/40Z 81341500002004	1
21	050.0231	Axle 13T 81321400003004	1
22	100.4496	Key 5 x 5 x 28 81321800029004	1
23	032.0126	Bearing 608ZZ 8 x 22 x 7 81331000004004	1
24	050.0076	Circlip Ø20 81823820001004	1
25	050.0463	Gear 1 x 45T 81341000025004	1
26	050.0462	Washer 20.5 x 28 x 0.2 81823028001004	1
27	030.0009	Bearing 6004 DDU 81331000122004	1
28	050.0066	Oil bearing 28 x 38 x 7 81331000125004	1
29	050.0078	Ring 41.5 x 36.5 x 1.5 81823541501004	1
30	050.1014	Gear switch assembly 81321200007004	1
31	020.0329	Screw M4 x 16 81821004019004	1
32	050.0082	Screw holder 81826000029004	1
33	050.1005A	Clutch shaft 81321000010004	1
34	032.0211	Casing pin 4 x 12 81825004001004	1
35	020.0106A	Screw M6 x 20 81821000047004	1
36	050.0074	Rack - 1.5X39T 81231500011004	1
37	KSP.MS	Screw M5 x 10 81821005029004	3
38	KSP.M/3	Tank holder 81681300012004	1
39	040.1008	Gear casing ECO.50S 81251000035004	1
40	050.0068	Bearing 61906 DDU 81331000126004	1
41	020.0146	Screw M6 x 25 81821000048004	1
42	020.0111	Washer M6 DIN7980 81823000001004	1
43	050.0077	Key 6 x 6 x 12 81321800040004	1
44	050.0461	Spindle drive shaft 34 x 146 #3 81311000018004	1

MOTORBODYCASE

No	Search code	Desc	Qty
1	040.1001	Motor ECO.50S 220V (incl. gear box) 81611520002004	1
50	020.0298	Motor cable clamp 81433000023004	1
51	020.0086/Z	Rail set Aluminium (L/R) Z-profile 81661300031004	1
52	020.0086/Z	Rail set Aluminium (L/R) Z-profile 81661300031004	1
53	100.0022	Bolt M5 x 20 81822004006004	6
54	020.0101	Panel screw BKVZ M4 x 8 81821004001004	8
55	055.0002	Rear panel 220V 81831320009004	1
56	020.0081	Screw BKVZ M6 x 16 81821006001004	1
57	050.0030	End cover Ø36 X 3 81231300016004	1
58	050.0063	Bearing 6804 ZZ 81331000123004	1
59	040.0023	Washer 81823000108004	1
60	020.0231	Screw M5 x 6 81821005026004	4
61	020.0056/Z	Frame aluminium rail (Z) 81631000041004	1
62	050S.B085	Motor cable complete 81431200019004	1
62A	020.0041	Coupling nut PG9 (motor cable) 81824609002004	2
62B	050.0586	Cable housing 81433000002004	1
63	032.0127A	Adapter ring v2 81823600019004	1
64	030.0027	Washer 28 x 34.5 x 0.2 mm 81823000107004	1
65	020.0315X	Arm for capstan 81651300022004	3
66	020.0061/Z	Capstan hub assembly 81651000013004	1
67	020.0182	Grounding screw/washer/nut 81829000002004	1
68EU	030.B125	Main cable set 220V EU 81431520002004	1
68AU	020.0036/AU	Main cable 220V AU 81431520005004	1
68UK	020.0036/UK	Main cable 220V UK 81431520004004	1
69	020.0031	Coupling nut PG11 (main cable) 81824611001004	1
70	020.0037	Cable clamp complete 81433000008004	1
71	050S.B050Z	Panel plate assembly 220V 81411220017004	1
71A	PP.50S	Front panel ECO.50S 81831000100004	1
71B	020.0011-1	Magnet Switch 81641400010004	1
71C	030E.0091/Y	Motor switch 220V (5-pin) yellow 81641120003004	1
71D	032.1006	LED indicator 81422800007004	1
72	032.1008R	Control unit 81411000019004	1
73	020.0146	Screw M6 x 25 81821000048004	4
74	020.0111	Washer M6 DIN7980 81823000001004	4
75	020.0112	Washer M6 81823006003004	4
76	050.1025	Magnet 220V 81621020004020	1
77	020.0201	Sensor 81422000002004	1

MOTORBODYCASE

No	Search code	Desc	Qty
200	CAS.50S	Case for ECO.50S (black with inlay) 81843500024004	1
201	KSP.Q2	Coolant tank Quick Connect 2015 81681300010004	1
202M	EBGLV.M	Euroboor working gloves size M 91411000020004	1
202L	EBGLV.L	Euroboor working gloves size L 91411000021004	1
202XL	EBGLV.XL	Euroboor working gloves size XL 91411000022004	1
203	SAF.400	Safety chain (1 mtr) with lock 81841300006004	1
204	SAF.100	Safety goggles 81841500002004	1
205	SAF.200	Ear plugs 81841500001004	1
206	KSP.P	Pin and knob for cooling tank 81682400005004	1
207	IMB.US2.5	Allen key 2.5 mm 81842600006004	1
208	IMB.US4	Allen key 4.0 mm 81842600004004	1
209	IMB.US5	Allen key 5.0 mm 81842600005004	1
210	DRIFT3	Drift MT3 81843000016004	1
211	IMC.30/19-N	Arbor MT3 - 19.05 (3/4") Weldon 31125332001004	1
212	SAF.MDMB	Safety guard for ECO.50 81841000019004	1
213	020.0223	Screw M5 x 10 81821000127004	2
