Magnetic drilling machine, 40 mm, 220 V.

Magnetic drilling machine, annular cutters max. dia 40 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction clockwise.

Order codeECO.40/2+
EAN code8720143712364
Get a quote

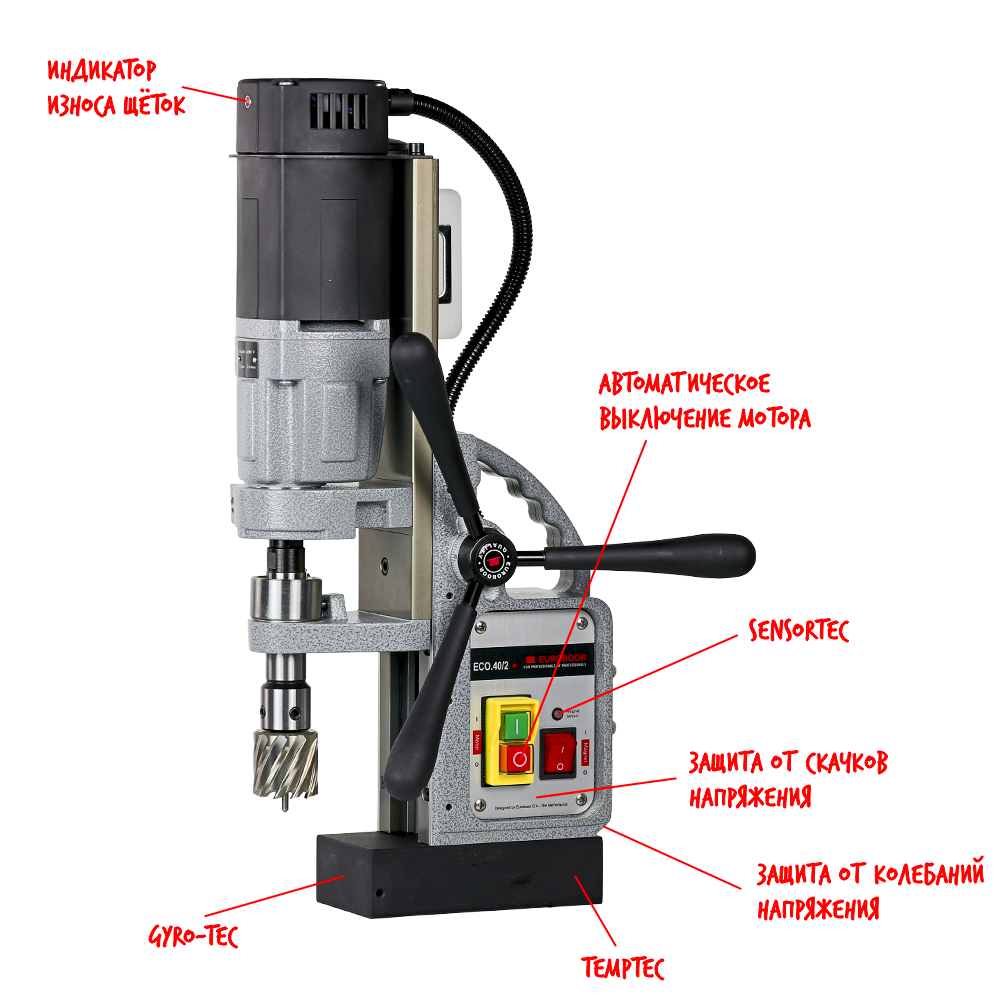

Our compact Euroboor ECO.40/2+ is the perfect magnetic core drill for core drills up to 40 mm (1 9/16″) and spiral drills up to 13 mm (1/2″). The innovative electronics in this magnetic core drill offer more safety, significantly reduce the risks of damage to the machine, tool and workpiece and protect the user in case of excessive vibration or sudden movement. The service life is considerably longer and high maintenance costs are avoided. This lightweight and reliable magnetic drill is a true addition to any workstation.


Contact us

Key Charateristics
Detachable spindle drive and integrated tool cooling and lubrication
Two-speed gearbox
Integrated slide for:
High accuracy
Ectended lifecycle
Minimal vibration
High-precision height adjustment for:
Low maintenance
Minimal wear correction
Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
Reduced risk of damaging machine, tools and workpiece and hurting operator
Suitable for use in areas and workplaces where power supply is of less quality
Reduced risk of armature damage
Reduced risk of control unit(s) damage
Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement

Accessories

Tab Properties

ECO.40/2+
Automatic shut off
ECO.40/2+
Carbon brush wear indicator
ECO.40/2+
Gyro-Tec
ECO.40/2+
Power fluctuation protection
ECO.40/2+
2 way magnet (TempTec)
ECO.40/2+
Magnet LED indicator
ECO.40/2+
Power surge protection
ECO.40/2+
Adjustable speed
Connection
minimum diameter annular cutters (inch)1/2
minimum diameter annular cutters (millimeter)12
maximum diameter annular cutters (inch)1 9/16
maximum diameter annular cutters (millimeter)40
minimum diameter countersinking (inch)3/8
minimum diameter countersinking (millimeter)10
maximum diameter countersinking (inch)1 3/4
maximum diameter countersinking (millimeter)45
minimum diameter twist drills (inch)1/16
minimum diameter twist drills (millimeter)1
maximum diameter twist drills (inch)1/2
maximum diameter twist drills (millimeter)13
connection 1 modelinside
connection 1 size (inch)3/4
connection 1 size (millimeter)19.05
connection 1 typeWeldon
Dimensions
stroke (inch)5 15/16
stroke (millimeter)150
magnet length (inch)6 5/16
magnet length (millimeter)160
magnet width (inch)3 1/8
magnet width (millimeter)80
magnet height (inch)1 5/8
magnet height (millimeter)42
minimum height (inch)15 9/16
minimum height (millimeter)395
maximum height (inch)21 1/4
maximum height (millimeter)540
length (inch)12 5/8
width (inch)8 1/4
length (millimeter)320
width (millimeter)210
height (inch)21 1/4
height (millimeter)540
Properties
rotation directionclockwise
type of gear box lubricationgrease
magnetic force (kilogram)1500
magnetic force (pound)3305
electric rotation speed adjustmentyes
nett weight (pound)25.4
nett weight (kilogram)11.5
system of measurementmm (metric)
applicationdrilling, countersinking
Performance
no-load minimum rotation speed gear 1 (rotations per minute)720
no-load maximum rotation speed gear 1 (rotations per minute)1300
no-load rotation speed gear 1 (rotations per minute)720
load rotation speed gear 1 (rotations per minute)315
rotation speed gear 1 (rotations per minute)1300
no-load rotation speed gear 2 (rotations per minute)1300
load rotation speed gear 2 (rotations per minute)560
Supply
motor power (Ampère)9.5
motor power (Watt)1050
total power (Ampère)10
total power (Watt)1100
power supply frequency (Hertz)50 - 60
power supply currentAC
power supply connectionplug according CEE 7/7
power supply source-
power supply type-
power supply tension (Volt)220 - 240

Drawing

Tab Fact sheet

Tab Package contents

  • 1x case
  • 1x magnetic drilling machine ECO.40/2+
  • 3x (Capstan Hub) handles
  • 1x lubrication/cooling system
  • 1x Allen key 2.5 mm (3/32")
  • 1x Allen key 3 mm (1/8")
  • 1x Allen key 4 mm (5/32")
  • 1x Allen key 5 mm (13/64")
  • 1x protection guard
  • 1x safety chain
  • 1x ear protection
  • 1x safety goggles
  • 1x safety gloves
  • 1x user manual

Manual

MOTORBODYCASE
NoSearch codeDescQty
2036.0043Screw M4.8 x 55
81822004801004		4
3032.0111ZEnd cover 110V / 220V
81231300004004		1
4P020.0278Led indicator red alarm 220V
81422820001004		1
5032.0116Screw M4 x 16
81821004201004		2
6032.0131-1Adapter ring cap
81231900004004		1
7032.0241X-40/2+Housing incl. print ECO.40/2
81231200021004		1
8032.0136Screw for spring
81821000003004		2
9032.0141-1Spring
81331300006004		2
10020.0101Panel screw BKVZ M4 x 8
81821004001004		2
11Carbon.30+Carbon brush set 220V
81261320007004		1
12040.0276Field 220V
81210020004004		1
13032.0156Screw BK 4 x 55
81821004003004		2
14032.0161Baffle
81231700002004		1
15040.1005YArmature 220V
81220020015004		1
16032.0166Circlip 472/28/1.2
81823828002004		1
17032.0171Bearing 6001ZZ 12 x 28 x 8
81331000005004		1
18040.0146Inner gear plate
81231000005004		1
19020.0308Circlip
81823800032004		1
20032.0125Gasket
81811500007004		1
21040.0100Spacer
81826500007004		1
22032.0126Bearing 608ZZ 8 x 22 x 7
81331000004004		2
23040.1004Bevel gear assembly
81341500018004		1
24040.0161Needle bearing HK0810
81331000013004		2
25040.0171/2Gear 34/28
81341500017004		1
26040.0231Axle
81321400002004		1
27100.4496Key 5 x 5 x 28
81321800029004		1
28040.0176Spindle gear
81342000002004		1
29040.0181Adapter ring
81823600015004		1
30040.0086Bearing 6001 DDU
81331000128004		1
31040.0291Clutch shaft
81321000001004		1
32032.0211Casing pin 4 x 12
81825004001004		1
33040.0286Gear switch
81321200003004		1
34040.0242Gear casing complete
81251000028004		1
35032.0106Screw M5 x 50
81821005018004		4
36040.0196Bearing
81331000014004		1
37040.0191Spindle drive shaft
81311000005004		1
MOTORBODYCASE
NoSearch codeDescQty
1040.1001ZECO.40/2+ motor unit 220V ext. cable
81611020020004		1
40020.0106AScrew M6 x 20
81821000047004		6
41020.0111Washer M6 DIN7980
81823000001004		6
42040.0041Motor fixing plate 110 mm
81231600004004		1
43040.0011Slide
81661000004004		1
44KSP.M/3Tank holder
81681300012004		1
45KSP.MSScrew M5 x 10
81821005029004		3
46032.0026Motor holder HD 66 mm
81661600001004		1
47020.0146BScrew M6 x 35
81821006017004		1
48020.0145/2Coolant ring quick steel, for 020.0142/2
81681600007004		1
49020.0142/2Steady auto coolant, for 020.0145/2
81681000006004		1
50020.0116Spindle complete 112 mm
81311300001004		1
50B020.0121Spindle spring set
81333800001004		1
50C020.0136Grub screw M8 x 8
81821308007004		2
51020.0146Screw M6 x 25
81821000048004		4
52032.0016Rack
81231500002004		1
53020.0086/XRail set Aluminium (L/R) L-profile
81661300024004		1
54020.0086/XRail set Aluminium (L/R) L-profile
81661300024004		1
55020.0229Screw M4 x 20
81821004023004		6
56020.0101Panel screw BKVZ M4 x 8
81821004001004		8
57055.0002Rear panel 220V
81831320009004		1
58032.1008ZControl unit 110V / 220V
81411000004004		1
59020.0298Motor cable clamp
81433000023004		1
60020.0081Screw BKVZ M6 x 16
81821006001004		1
61020.0077HEnd plate black
81231600016004		1
62020.0056/XFrame aluminium rail (L)
81631000028004		1
63020.0231Screw M5 x 6
81821005026004		4
64020.0061/XBCapstan hub assembly black
81651000014004		1
65020.0315XArm for capstan
81651300022004		3
66020.0046Motor cable complete
81431200030004		1
67020.0041Coupling nut PG9 (motor cable)
81824609002004		2
68020.0182Grounding screw/washer/nut
81829000002004		1
69EU030.B125Main cable set 220V EU
81431520002004		1
69AU020.0036/AUMain cable 220V AU
81431520005004		1
69UK020.0036/UKMain cable 220V UK
81431520004004		1
70020.0031Coupling nut PG11 (main cable)
81824611001004		1
71020.0037Cable clamp complete
81433000008004		1
72040/2+.B040ZFront panel set 220V
81411220035004		1
72A040+.0003XFront panel ECO.40/2+
81831000125004		1
72B020.0011-1Magnet Switch
81641400010004		1
72C032.1006LED indicator
81422800007004		1
72D030E.0091/YMotor switch 220V (5-pin) yellow
81641120003004		1
73055.1041Gyroscope PCB set
81411500011004		1
74020.0146Screw M6 x 25
81821000048004		4
75020.0111Washer M6 DIN7980
81823000001004		4
76020.0112Washer M6
81823006003004		4
77032.1022Magnet 220V
81621020003004		1
78100.1008Sensor
81422000006004		1
MOTORBODYCASE
NoSearch codeDescQty
200040/2+.2010Case for ECO.40/2+ with sticker
81843500036004		1
201KSP.Q2Coolant tank Quick Connect 2015
81681300010004		1
202MEBGLV.MEuroboor working gloves size M
91411000020004		1
202LEBGLV.LEuroboor working gloves size L
91411000021004		1
202XLEBGLV.XLEuroboor working gloves size XL
91411000022004		1
203SAF.400Safety chain (1 mtr) with lock
81841300006004		1
204SAF.100Safety goggles
81841500002004		1
205KSP.PPin and knob for cooling tank
81682400005004		1
206SAF.200Ear plugs
81841500001004		1
207IMB.US2.5Allen key 2.5 mm
81842600006004		1
208IMB.US3Allen key 3.0 mm
81842600007004		1
209IMB.US4Allen key 4.0 mm
81842600004004		1
210IMB.US5Allen key 5.0 mm
