TUBE.30S+

Magnetic drilling machine, 30 mm, 220 V.

Magnetic drilling machine, annular cutters max. dia 30 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction clockwise.

Order code

TUBE.30S+

EAN code

8720143712470

Get a quote

The Euroboor TUBE.30S+ magnetic core drilling machine is suitable for both flat and pipe material. The TUBE.30S+ with patented shallow-field magnetic technology offers an incredibly strong grip, even on steel as thin as 3 mm. This magnetic core drilling machine automatically pivots to conform to any pipe of ø 76.2 mm or larger. The magnet does not require electricity, so all the power goes to the motor. This offers increased safety as the drilling machine will not release from the target material in the event of an unintentional power loss. The oil lubracted gearbox and innovative electronics reduces the risk of damage to the machine, tool and workpiece. When the GYRO-TEC sensor detects any excessive vibrations or sudden displacement it will automatically shut off the machine. The contributes to the wellbeing of the user and the lifespan of the machine, it also avoids high maintenance costs.

Accessories

Tab Properties
Tab Fact sheet
Tab Package contents
Tab Parts list / manual

Tab Properties

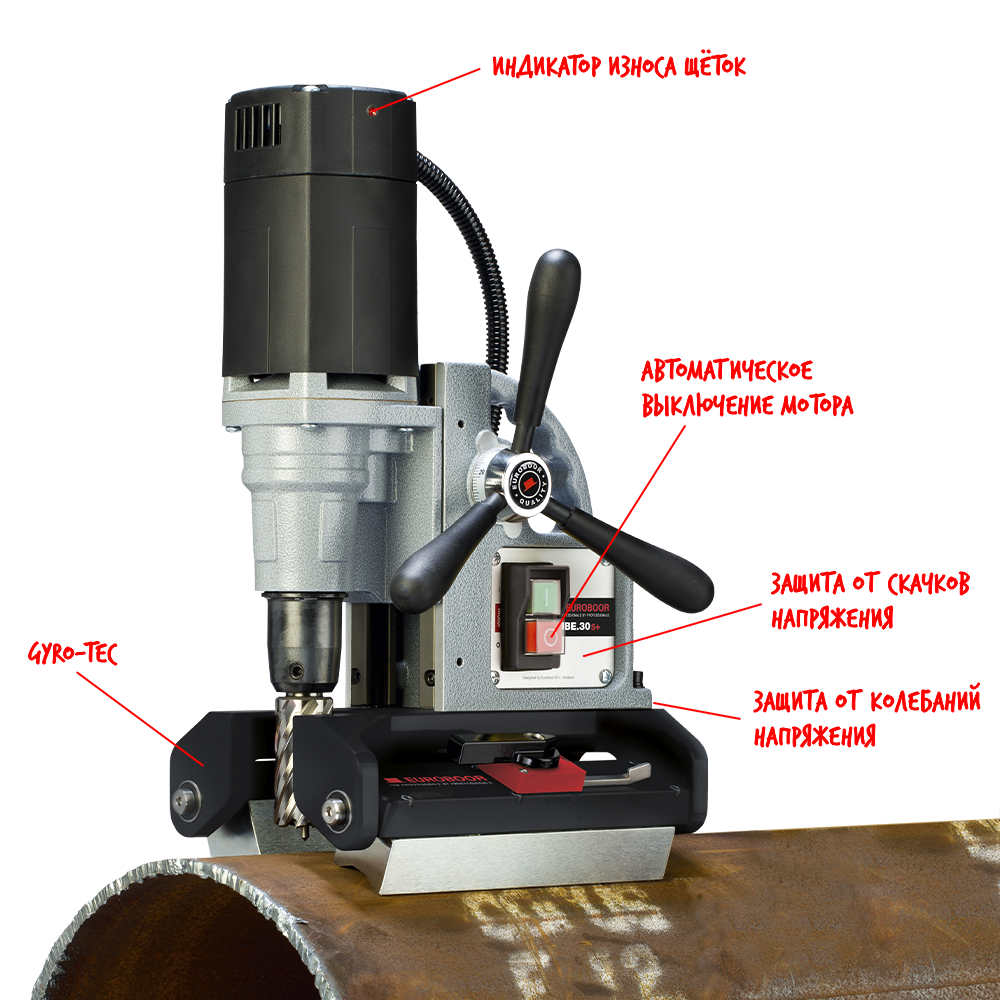

Automatic shut off

Carbon brush wear indicator

Gyro-Tec

Power fluctuation protection

Power surge protection

Oil lubricated gearbox

Permanent magnet

Connection
minimum diameter annular cutters (inch)	1/2
minimum diameter annular cutters (millimeter)	12
maximum diameter annular cutters (inch)	1 7/8
maximum diameter annular cutters (millimeter)	30
minimum diameter countersinking (inch)	3/8
minimum diameter countersinking (millimeter)	10
maximum diameter countersinking (inch)	1 3/8
maximum diameter countersinking (millimeter)	35
minimum diameter twist drills (inch)	1/16
minimum diameter twist drills (millimeter)	1
maximum diameter twist drills (inch)	1/2
maximum diameter twist drills (millimeter)	13
connection 1 model	inside
connection 1 size (inch)	3/4
connection 1 size (millimeter)	19.05
connection 1 type	Weldon
Dimensions
stroke (inch)	3 9/16
stroke (millimeter)	90
magnet length (inch)	7 3/8
magnet length (millimeter)	187
magnet width (inch)	6 1/2
magnet width (millimeter)	165
magnet height (inch)	3 1/4
magnet height (millimeter)	83
minimum height (inch)	12 13/16
minimum height (millimeter)	326
maximum height (inch)	16 3/8
maximum height (millimeter)	416
length (inch)	10 13/16
width (inch)	7 1/4
length (millimeter)	275
width (millimeter)	185
height (inch)	16 3/8
height (millimeter)	416
Properties
rotation direction	clockwise
type of gear box lubrication	oil
magnetic force (kilogram)	532
magnetic force (pound)	1175
electric rotation speed adjustment	no
nett weight (pound)	22.7
nett weight (kilogram)	10.3
system of measurement	mm (metric)
application	countersinking, pipe/tube mounted drilling
Performance
no-load rotation speed gear 1 (rotations per minute)	775
load rotation speed gear 1 (rotations per minute)	400
Supply
motor power (Ampère)	8.2
motor power (Watt)	900
total power (Ampère)	8.6
total power (Watt)	950
power supply frequency (Hertz)	50 - 60
power supply current	AC
power supply connection	plug according CEE 7/7
power supply source	-
power supply type	-
power supply tension (Volt)	220 - 240
Usage
minimum pipe diameter (inch)	3
minimum pipe diameter (millimeter)	76
minimum material thickness (inch)	1/8
minimum material thickness (millimeter)	3

Tab Fact sheet

Download fact sheet

Tab Package contents

1x metal case
1x magnetic drilling machine TUBE.30S+
1x pilot pin IBC.K25
1x Weldon extension IBK.50
3x (Capstan Hub) handles
1x lubrication/cooling system
1x Allen key 2.5 mm (3/32")
1x Allen key 3 mm (1/8")
1x Allen key 4 mm (5/32")
1x Allen key 5 mm (13/64")
1x safety chain
1x ear protection
1x safety goggles
1x safety gloves
1x user manual

Manual

Download Manual

MOTORBODYCASE

No	Search code	Desc	Qty
2	036.0043	Screw M4.8 x 55 81822004801004	4
3	032.0111Z	End cover 110V / 220V 81231300004004	1
4	P020.0278	Led indicator red alarm 220V 81422820001004	1
5	032.0116	Screw M4 x 16 81821004201004	2
6	032.0131-1	Adapter ring cap 81231900004004	1
7	032.0241X-30S+	Housing incl. print ECO.30S+ 81231200016004	1
8	032.0136	Screw for spring 81821000003004	2
9	032.0141-1	Spring 81331300006004	2
10	020.0101	Panel screw BKVZ M4 x 8 81821004001004	2
11	Carbon.30+	Carbon brush set 220V 81261320007004	1
12	032.0151	Field 220V 81210020002004	1
13	032.0156	Screw BK 4 x 55 81821004003004	2
14	032.0161	Baffle 81231700002004	1
15	030S.0181	Armature 220V 81220020011004	1
16	032.0166	Circlip 472/28/1.2 81823828002004	1
17	050.9070	Bearing 6001V V 81331000137004	1
18	050.0064	Oil bearing 15 x 21 x 3 81331000124004	1
19	040S.0236X	Inner gear plate 81231000022004	1
20	020.0308	Circlip 81823800032004	1
21	040S.0128	Gasket 81811500008004	1
22	032.0126	Bearing 608ZZ 8 x 22 x 7 81331000004004	1
23	032.1014E	Gear set 81321500003004	1
24	032.0126	Bearing 608ZZ 8 x 22 x 7 81331000004004	1
25	032.0186	Spindle gear 40T 81342000001004	1
26	032.0191	Adapter ring 17 x 24 x 0.2 81823600003004	1
27	032.0196	Bearing 6003 17 x 35 x 10 81331000006004	1
28	KSP.S	Coolant connector Quick straight brass 81682400010004	1
29	050.0025	Pin 4 x 10 81825000029004	2
30	030.0012	Screw motorhousing 81821000092004	1
31	030.0011	Slide L243 B80 HD 66 mm 81661000001004	1
32	020.0106A	Screw M6 x 20 81821000047004	1
33	030S.0008X	Gear box 110V / 220V 81251100002004	1
34	032.0216	Screw BK 5 x 40 81821005007004	4
35	030E.5033	Seal 81811000016004	2
36	030.0009	Bearing 6004 DDU 81331000122004	1
37	030.1006	Spindle assembly 81311300037004	1

MOTORBODYCASE

No	Search code	Desc	Qty
1	030S.1001	ECO.30S+ motor unit 220V ext. cable 81611020001004	1
40	030E.5042	Guide rail Aluminium left ECO.30 81661300027004	1
41	030E.5043	Guide rail Aluminium right ECO.30 81661300028004	1
42	020.0229	Screw M4 x 20 81821004023004	6
43	PP.30/2	Rear panel ECO.30 81831300040004	1
44	020.0101	Panel screw BKVZ M4 x 8 81821004001004	8
45	KSP.M/4	Tank holder ECO.30(S) (frame side) 81682000006004	1
46	KSP.MS	Screw M5 x 10 81821005029004	2
47	020.0081	Screw BKVZ M6 x 16 81821006001004	1
48	020.0077H	End plate black 81231600016004	1
49	030E.5051	Spring washer 81823000101004	1
50	030E.5052/2	Frame ECO.30 1507+ 81631000042004	1
51	020.0231	Screw M5 x 6 81821005026004	3
52	030.0027	Washer 28 x 34.5 x 0.2 mm 81823000107004	1
53	020.0061/XB	Capstan hub assembly black 81651000014004	1
54	030E.5058	Arm for capstan 81651300010004	3
55	030.B095	Motor cable complete 81431200026004	1
56	030.0021	Coupling nut PG9 81824609007004	2
57	020.0182	Grounding screw/washer/nut 81829000002004	1
58EU	030.B125	Main cable set 220V EU 81431520002004	1
58AU	020.0036/AU	Main cable 220V AU 81431520005004	1
58UK	020.0036/UK	Main cable 220V UK 81431520004004	1
59	020.0031	Coupling nut PG11 (main cable) 81824611001004	1
60	020.0037	Cable clamp complete 81433000008004	1
61	030S.1004	Control unit 110V / 220V 81411000006004	1
62	T030S+.B060Z	Front panel set 220V 81411220042004	1
62A	030+.0004B	Front Panel Plate 81831000144004	1
62B	030E.0091/Y	Motor switch 220V (5-pin) yellow 81641120003004	1
62C	020.0011-1	Magnet Switch 81641400010004	1
63	055.1041	Gyroscope PCB set 81411500011004	1
64	020.0146	Screw M6 x 25 81821000048004	2
65	020.0111	Washer M6 DIN7980 81823000001004	2
66	020.0112	Washer M6 81823006003004	2
67	030.1013	Magnetic base complete ECO-TUBE.30 81621200002004	1
68	100A.0014A	Screw M8 x 25 81821008005004	2

MOTORBODYCASE

No	Search code	Desc	Qty
200	CAS.TUBE30	Case for TUBE.30 metal 81843500027004	1
201	KSP.Q2	Coolant tank Quick Connect 2015 81681300010004	1
202	020.0223	Screw M5 x 10 81821000127004	1
203	IBC.50	Pilot pin Ø5.0 x 73 mm 32107350011004	1
204	IBC.K25	Pilot pin Ø6.35 x 127 mm 32112763511004	1
205M	EBGLV.M	Euroboor working gloves size M 91411000020004	1
205L	EBGLV.L	Euroboor working gloves size L 91411000021004	1
205XL	EBGLV.XL	Euroboor working gloves size XL 91411000022004	1
206	SAF.400	Safety chain (1 mtr) with lock 81841300006004	1
207	SAF.100	Safety goggles 81841500002004	1
208	SAF.200	Ear plugs 81841500001004	1
209	IMB.US2.5	Allen key 2.5 mm 81842600006004	1
210	IMB.US3	Allen key 3.0 mm 81842600007004	1
211	IMB.US4	Allen key 4.0 mm 81842600004004	1
212	IMB.US5	Allen key 5.0 mm 81842600005004	1
