Magnetic drilling machine, 30 mm, 220 V.

Magnetic drilling machine, annular cutters max. dia 30 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction clockwise.

Order codeECO.30S+
EAN code8720143712340
Get a quote

The Euroboor ECO.30S+ is the lightest ø 30 mm machine on the market. It not only benefits from an oil lubricated gearbox, but also from innovative electronics which offer more safety, significantly reduce the risk of damage to the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs. Due to its small size, the Euroboor ECO.30S+ is the ideal magnetic core drilling machine to drill holes in small spaces. This machine measures barely 27.5 cm in length and weighs only 8.5 kg.


Contact us

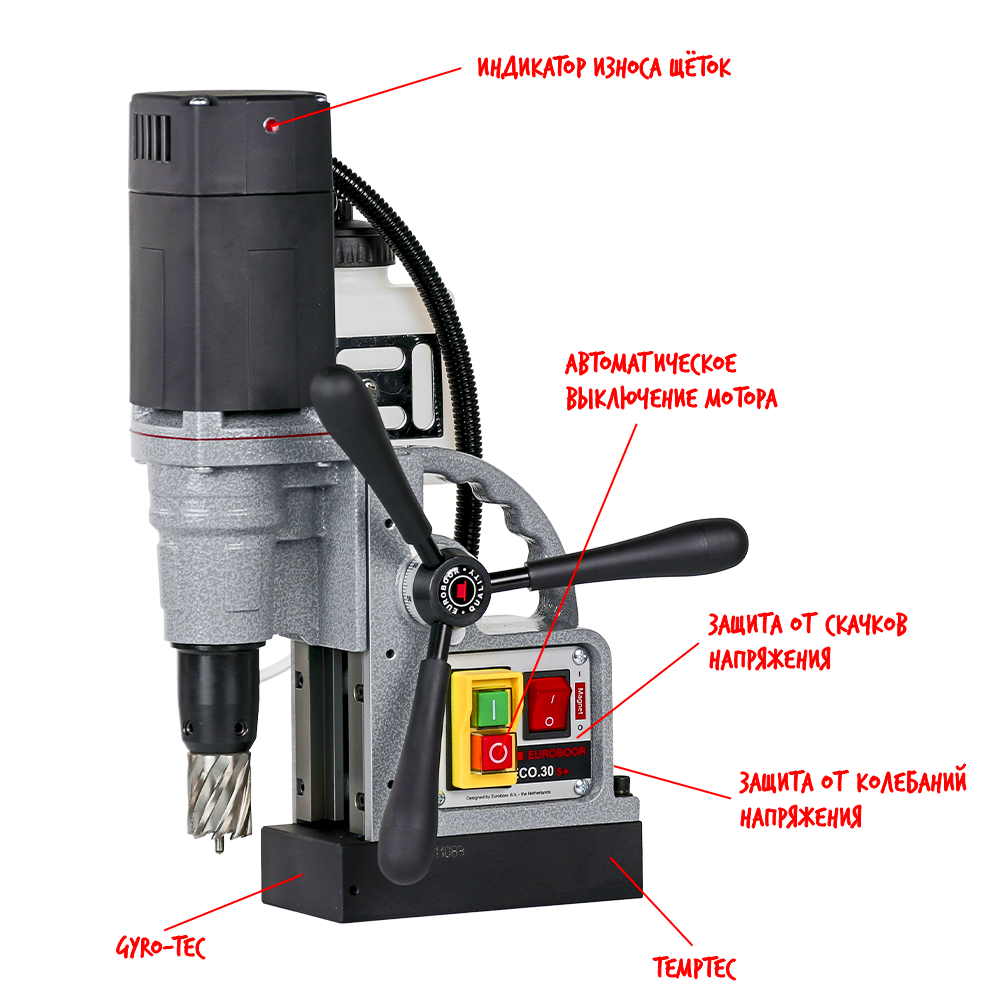

Key Characteristics
One-speed oil lubricated gearbox
Gyro-Tec
Power surge protection
Power fluctuation protection
Carbon brush wear indicator
Automatic shut-off
Direct spindle drive and integrated tool cooling and lubrication
High-precision height adjustment for:
Low maintenance
Minimal wear correction
Lightest 30 mm magnetic drilling machine:
Most compact in class
Incredibly easy to handle
Integrated slide for:
High accuracy
Enlarged lifecycle
Minimal vibration
Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore last longer
Reversible handles which enable you to change the operation side of the feed handles in confined spaces
Reduced risk of damaging machine, tools and workpiece and hurting operator
Suitable for use in areas and workplaces where power supply is of less quality
Reduced risk of armature damage
Reduced risk of control unit(s) damage
Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement

Accessories

Tab Properties

ECO.30S+
Automatic shut off
ECO.30S+
Carbon brush wear indicator
ECO.30S+
Gyro-Tec
ECO.30S+
Power fluctuation protection
ECO.30S+
2 way magnet (TempTec)
ECO.30S+
Power surge protection
ECO.30S+
Oil lubricated gearbox
Connection
minimum diameter annular cutters (inch)1/2
minimum diameter annular cutters (millimeter)12
maximum diameter annular cutters (inch)1 3/16
maximum diameter annular cutters (millimeter)30
minimum diameter countersinking (inch)3/8
minimum diameter countersinking (millimeter)10
maximum diameter countersinking (inch)1 3/8
maximum diameter countersinking (millimeter)35
minimum diameter twist drills (inch)1/16
minimum diameter twist drills (millimeter)1
maximum diameter twist drills (inch)1/2
maximum diameter twist drills (millimeter)13
connection 1 modelinside
connection 1 size (inch)3/4
connection 1 size (millimeter)19.05
connection 1 typeWeldon
Dimensions
stroke (inch)3 9/16
stroke (millimeter)90
magnet length (inch)6 5/16
magnet length (millimeter)160
magnet width (inch)3 1/8
magnet width (millimeter)80
magnet height (inch)1 7/16
magnet height (millimeter)37
minimum height (inch)11 6/16
minimum height (millimeter)293
maximum height (inch)15 1/16
maximum height (millimeter)383
length (inch)10 13/16
width (inch)7 1/2
length (millimeter)275
width (millimeter)190
height (inch)15 1/16
height (millimeter)383
Properties
rotation directionclockwise
magnetic force (kilogram)1200
magnetic force (pound)2645
electric rotation speed adjustmentno
nett weight (pound)18.7
nett weight (kilogram)8.5
system of measurementmm (metric)
applicationDrilling, Countersinking
Performance
no-load maximum rotation speed gear 1 (rotations per minute)775
load maximum rotation speed gear 1 (rotations per minute)400
rotation speed gear 1 (rotations per minute)775
Supply
motor power (Ampère)8.2
motor power (Watt)900
total power (Ampère)8.6
total power (Watt)950
power supply frequency (Hertz)50 - 60
power supply currentAC
power supply connectionplug according CEE 7/7
power supply source-
power supply type-
power supply tension (Volt)220 - 240

Tab Fact sheet

Tab Package contents

  • 1x case
  • 1x magnetic drilling machine ECO.30S+
  • 3x (Capstan Hub) handles
  • 1x lubrication/cooling system
  • 1x Allen key 2.5 mm (3/32")
  • 1x Allen key 3 mm (1/8")
  • 1x Allen key 4 mm (5/32")
  • 1x Allen key 5 mm (13/64")
  • 1x protection guard
  • 1x safety chain
  • 1x ear protection
  • 1x safety goggles
  • 1x safety gloves
  • 1x user manual

Manual

MOTORBODYCASE
NoSearch codeDescQty
2036.0043Screw M4.8 x 55
81822004801004		4
3032.0111ZEnd cover 110V / 220V
81231300004004		1
4P020.0278Led indicator red alarm 220V
81422820001004		1
5032.0116Screw M4 x 16
81821004201004		2
6032.0131-1Adapter ring cap
81231900004004		1
7032.0241X-30S+Housing incl. print ECO.30S+
81231200016004		1
8032.0136Screw for spring
81821000003004		2
9032.0141-1Spring
81331300006004		2
10020.0101Panel screw BKVZ M4 x 8
81821004001004		2
11Carbon.30+Carbon brush set 220V
81261320007004		1
12032.0151Field 220V
81210020002004		1
13032.0156Screw BK 4 x 55
81821004003004		2
14032.0161Baffle
81231700002004		1
15030S.0181Armature 220V
81220020011004		1
16032.0166Circlip 472/28/1.2
81823828002004		1
17050.9070Bearing 6001V V
81331000137004		1
18050.0064Oil bearing 15 x 21 x 3
81331000124004		1
19040S.0236XInner gear plate
81231000022004		1
20020.0308Circlip
81823800032004		1
21040S.0128Gasket
81811500008004		1
22032.0126Bearing 608ZZ 8 x 22 x 7
81331000004004		1
23032.1014EGear set
81321500003004		1
24032.0126Bearing 608ZZ 8 x 22 x 7
81331000004004		1
25032.0186Spindle gear 40T
81342000001004		1
26032.0191Adapter ring 17 x 24 x 0.2
81823600003004		1
27032.0196Bearing 6003 17 x 35 x 10
81331000006004		1
28KSP.SCoolant connector Quick straight brass
81682400010004		1
29050.0025Pin 4 x 10
81825000029004		2
30030.0012Screw motorhousing
81821000092004		1
31030.0011Slide L243 B80 HD 66 mm
81661000001004		1
32020.0106AScrew M6 x 20
81821000047004		1
33030S.0008XGear box 110V / 220V
81251100002004		1
34032.0216Screw BK 5 x 40
81821005007004		4
35030E.5033Seal
81811000016004		2
36030.0009Bearing 6004 DDU
81331000122004		1
37030.1006Spindle assembly
81311300037004		1
37B030E.5037Spring set
81829000007004		1
37C020.0136Grub screw M8 x 8
81821308007004		2
MOTORBODYCASE
NoSearch codeDescQty
1030S.1001ECO.30S+ motor unit 220V ext. cable
81611020001004		1
40030E.5042Guide rail Aluminium left ECO.30
81661300027004		1
41030E.5043Guide rail Aluminium right ECO.30
81661300028004		1
42020.0229Screw M4 x 20
81821004023004		6
43PP.30/2Rear panel ECO.30
81831300040004		1
44020.0101Panel screw BKVZ M4 x 8
81821004001004		8
45KSP.M/4Tank holder ECO.30(S) (frame side)
81682000006004		1
46KSP.MSScrew M5 x 10
81821005029004		2
47020.0081Screw BKVZ M6 x 16
81821006001004		1
48050.0030End cover Ø36 X 3
81231300016004		1
49050.0063Bearing 6804 ZZ
81331000123004		1
50040.0023Washer
81823000108004		1
51030S.0001XFrame 110V / 220V
81631000011004		1
52020.0231Screw M5 x 6
81821005026004		3
53032.0127AAdapter ring v2
81823600019004		1
54030.0027Washer 28 x 34.5 x 0.2 mm
81823000107004		1
55020.0061/ZCapstan hub assembly
81651000013004		1
56030.0030XArm for capstan
81651300015004		3
57030.B095Motor cable complete
81431200026004		1
58030.0021Coupling nut PG9
81824609007004		2
59020.0182Grounding screw/washer/nut
81829000002004		1
60EU030.B125Main cable set 220V EU
81431520002004		1
60AU020.0036/AUMain cable 220V AU
81431520005004		1
60UK020.0036/UKMain cable 220V UK
81431520004004		1
61020.0031Coupling nut PG11 (main cable)
81824611001004		1
62020.0037Cable clamp complete
81433000008004		1
63030S+.B060ZFront panel set 220
81411220029004		1
63A030S.0004Front panel ECO.30S+
81831000123004		1
63B020.0011-1Magnet Switch
81641400010004		1
63C030E.0091/YMotor switch 220V (5-pin) yellow
81641120003004		1
64030S.1004Control unit 110V / 220V
81411000006004		1
65020.0016BFuse
81422300008004		1
66055.1041Gyroscope PCB set
81411500011004		1
67020.0146SBolt M6 x 22
81822006009004		2
68020.0146Screw M6 x 25
81821000048004		2
69020.0111Washer M6 DIN7980
81823000001004		4
70020.0112Washer M6
81823006003004		4
71030E.5072/2Magnet 220V 1507 ->
81621020011004		1
MOTORBODYCASE
NoSearch codeDescQty
200030S+.2010Case for ECO.30S+ with sticker
81843500034004		1
201KSP.Q2Coolant tank Quick Connect 2015
81681300010004		1
202020.0223Screw M5 x 10
81821000127004		3
203MEBGLV.MEuroboor working gloves size M
91411000020004		1
203LEBGLV.LEuroboor working gloves size L
91411000021004		1
203XLEBGLV.XLEuroboor working gloves size XL
91411000022004		1
204SAF.400Safety chain (1 mtr) with lock
81841300006004		1
205SAF.100Safety goggles
81841500002004		1
206SAF.200Ear plugs
81841500001004		1
207IMB.US2.5Allen key 2.5 mm
81842600006004		1
208IMB.US3Allen key 3.0 mm
81842600007004		1
209IMB.US4Allen key 4.0 mm
81842600004004		1
210IMB.US5Allen key 5.0 mm
81842600005004		1
211SAF.MDMSSafety guard small
81841000018004		1
