DTSW.812S

Drill & tap set, HSS-Co.

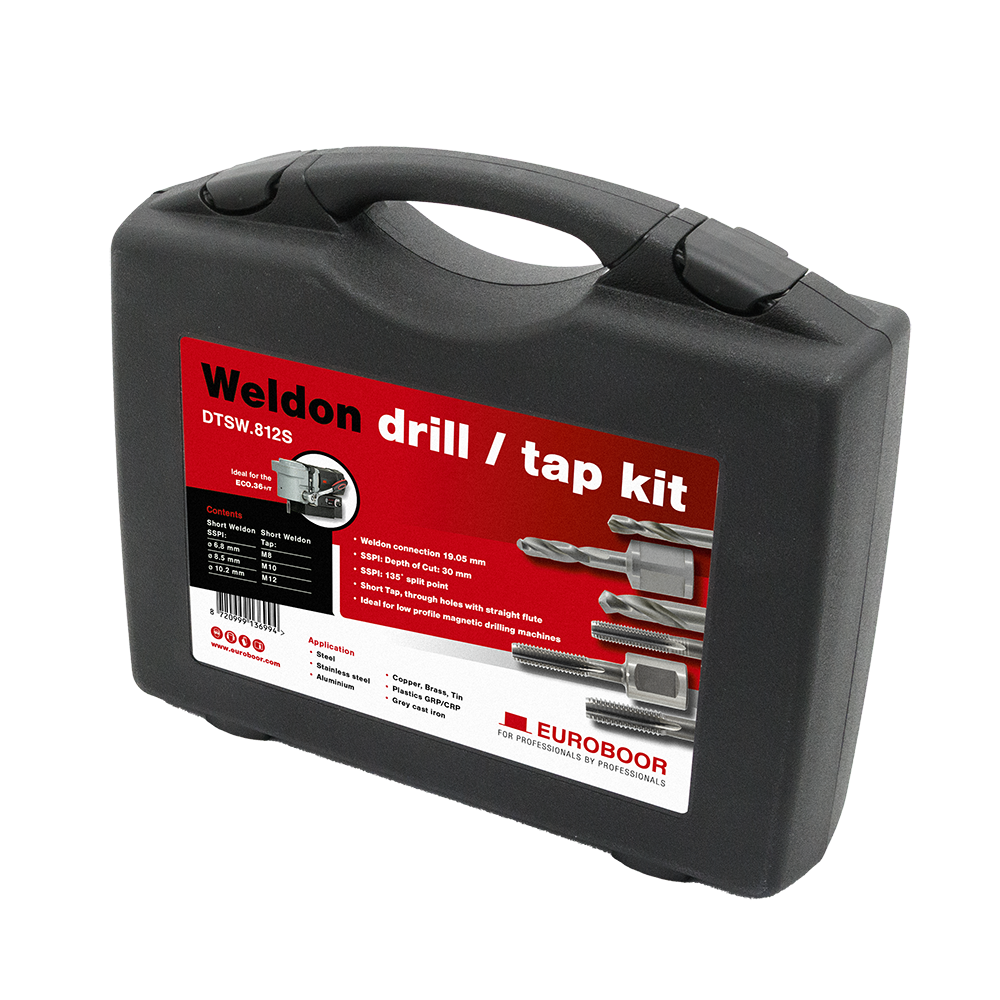

Drill & tap set, material high speed steel with 5% cobalt. Includes 6 twist drills and taps M8 - M12. Packed in plastic case.

Order code

DTSW.812S

EAN code

8720999136994

Order

DTSW.812S

Drill. Tap. Done.
When you’re working in compact environments, switching tools isn’t just a hassle -- it’s a problem. That’s exactly why we developed the Weldon drill / tap kit, available exclusively from Euroboor.

This original Euroboor kit is ideal for low-profile tapping machines like our ECO.36+/T, but also compatible with any magnetic drilling machine with tapping feature with a 19.05 mm Weldon spindle.

Thanks to their short design and Weldon shank, the twist drills and taps fit directly into the machine with no need of an adapter. That means more working room between your machine and the material, and the ability to drill and tap in one continuous flow. When combined with our ECO.36+/T, you can work in spaces as low as 16.5 cm and within just 5 cm from a wall.

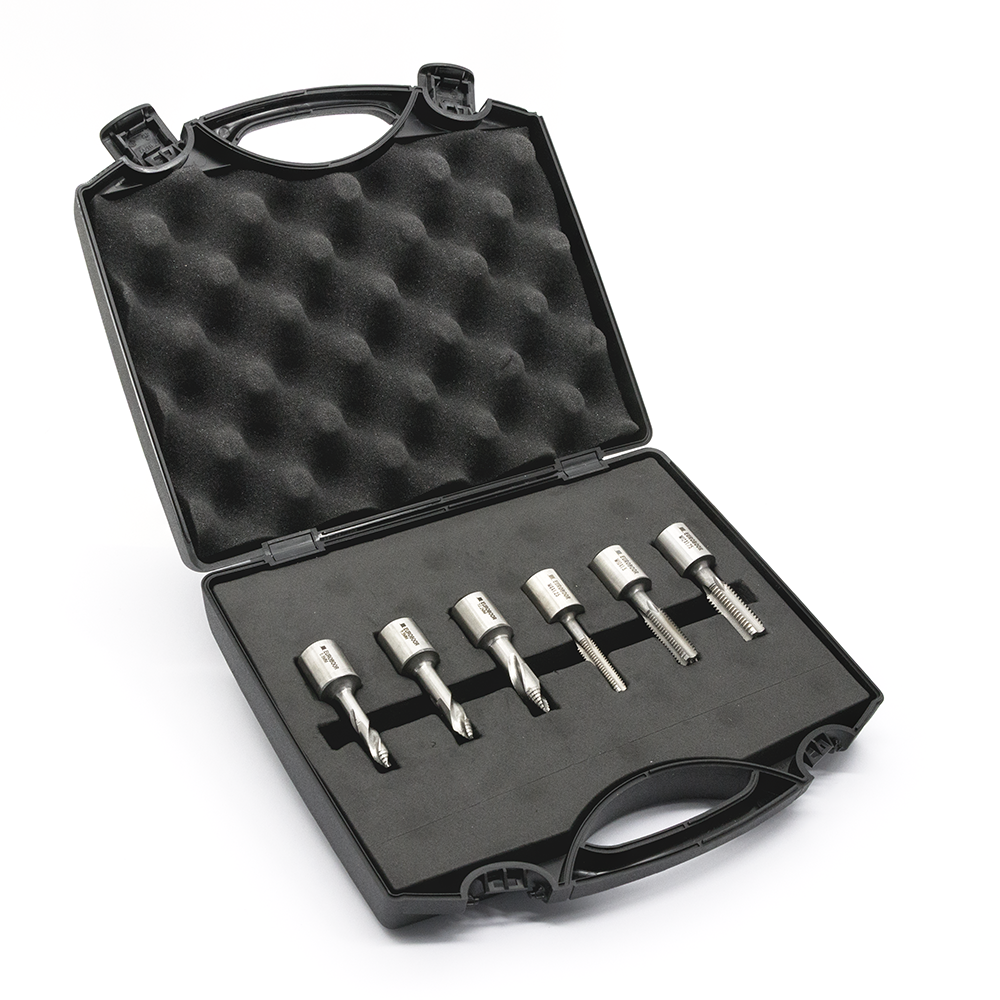

The kit includes the three most common sizes, carefully selected for the majority of threading jobs:
Metric
• Twist Drills: Ø 6.8 mm, Ø 8.5 mm, Ø 10.2 mm
• Taps: M8, M10, M12

Imperial
• Twist Drills: Ø 5/16", Ø 3/8", Ø 27/64"
• Taps: 3/8-16NC, 7/16-14NC, 1/2-13NC

Each drill is matched to its corresponding tap for precise thread cutting, ensuring reliable results.
This compact, time-saving kit unlocks the full potential of low-clearance tapping setups -- and adds serious value to any mag drill with tapping feature in your workshop.

• Twist drills 6,8 mm, 8,5 mm and 10,2 mm
• Taps M8, M10, and M12
• DIN 371 / 376
• Through holes: right-hand thread, straight flute

Properties
products in kit	Includes 6 twist drills and taps M8 -M12
material	high speed steel with 5% cobalt
standard code	371 / 376
standard type	DIN
system of measurement	mm (metric)
application	drilling
Other
total product quantity included in kit	6

Properties

products in kit

Includes 6 twist drills and taps M8 -M12

material

high speed steel with 5% cobalt

standard code

371 / 376

standard type

DIN

system of measurement

mm (metric)

application
